7.2. CHANGING PAPER IN THE LABELLING MACHINE
7.2.1. Flat Model
Scale 500 Range Model Flat can operate with continuous paper, adhesive labels or continuous adhesive
paper.

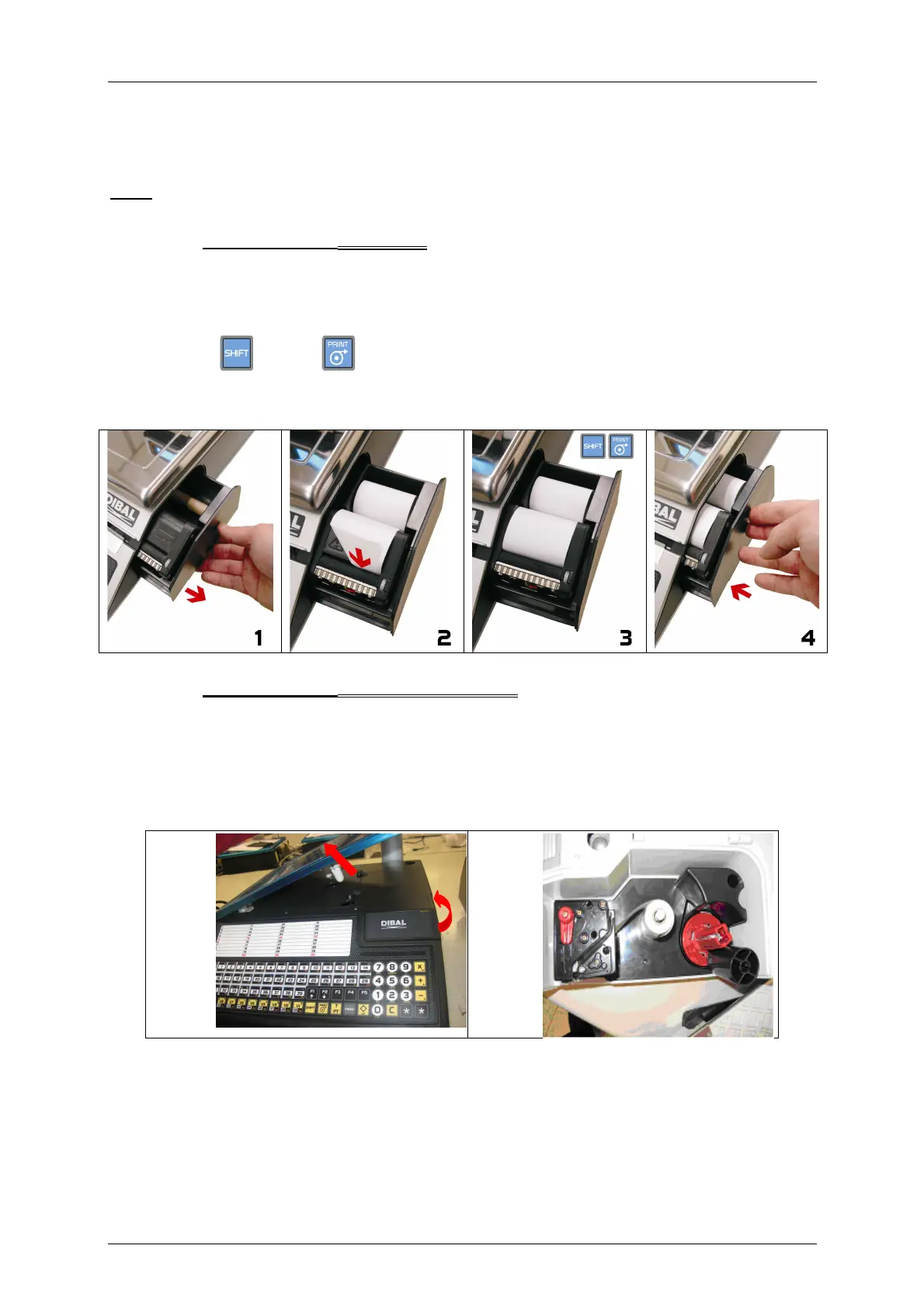

A)
To replace continuous paper (only ticket):
1. Open the printer and releasing on the right side. Remove the spent roll.
2. Fit the new roll as shown in the photo. Ensure that the heat-sensitive side of the paper is in contact
with the head (if not, receipts will come out blank).
3. Press Shift and print in order to place the recipt paper properly.
4. Finally, Close the printer
B)
To replace continuous paper (ticket and label models):
1. Remove the weighing platform by lifting it from the right as per point 1 above.
2. Open the printer and release the paper from the head by working the lock. Remove the spent roll.
3. Fit the new roll as shown in the photo. Ensure that the heat-sensitive side of the paper is in contact
with the head (if not, receipts will come out blank).
4. Close the printer and fit the weighing platform, reversing the steps in point 1.
1 3
