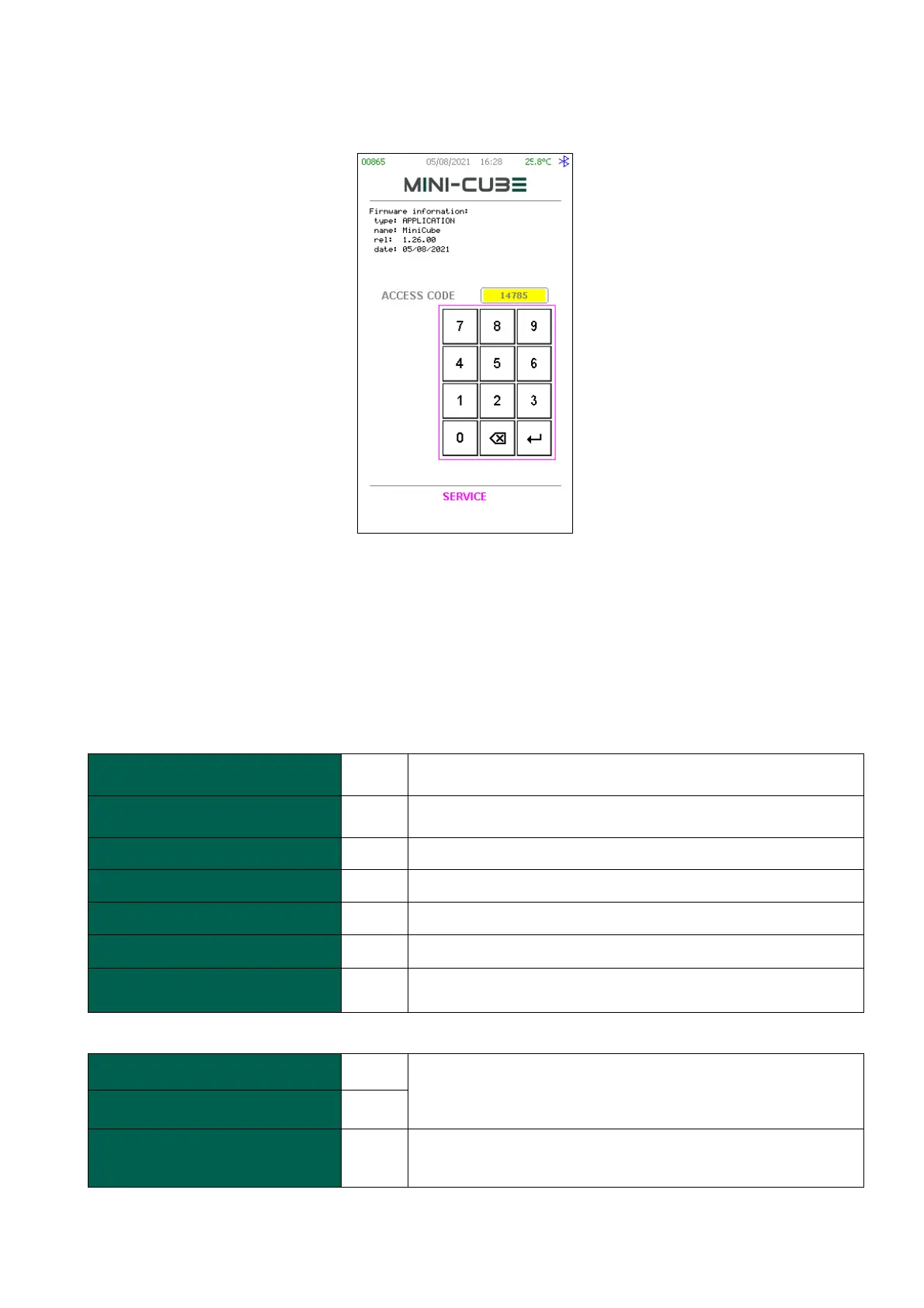

3.1.4 Reading parameters
In this menu, the parameters used to evaluate the blood levels and to calculate the ESR
values are accessible and may be varied.
Warning: changing these values may affect the performances of the Instrument.
The default values set on the instrument are shown below.
SED. TIME
1200
Time in seconds between the first and second scan for
normal tubes
SED. TIME_PED
840
Time in seconds between the first and second scan for
pediatric and MAP tubes
LIGHT_STANDBY
15
PWM LED in % - Used when there is no tube
LIGHT_DETECT
8
Used for detect the type of tube
LIGHT_NORMAL
200
Used for scan normal tubes (1
st
and 2
nd
readings)
LIGHT_PEDIATRIC
13
Used for scan pediatric tubes (1
st
and 2
nd
readings)
LIGHT_TEST_EXTRACT
150
Used between the two scans, to detect if the tube has
been removed
M1.AVG_N_SAMP_PRE
2
Filtering the original reading graph by a moving average.
A new curve is drawn where each point is the average of
+/- 2 points. (Pre/Post processing filter values).
M1.AVG_N_SAMP_POST
2
M1.N_RISING_BOTTOM
12
For the research of the tube bottom: starting from right to
left, we search for 12 consecutive steps in which the value
of light decreases. The first one is taken.
