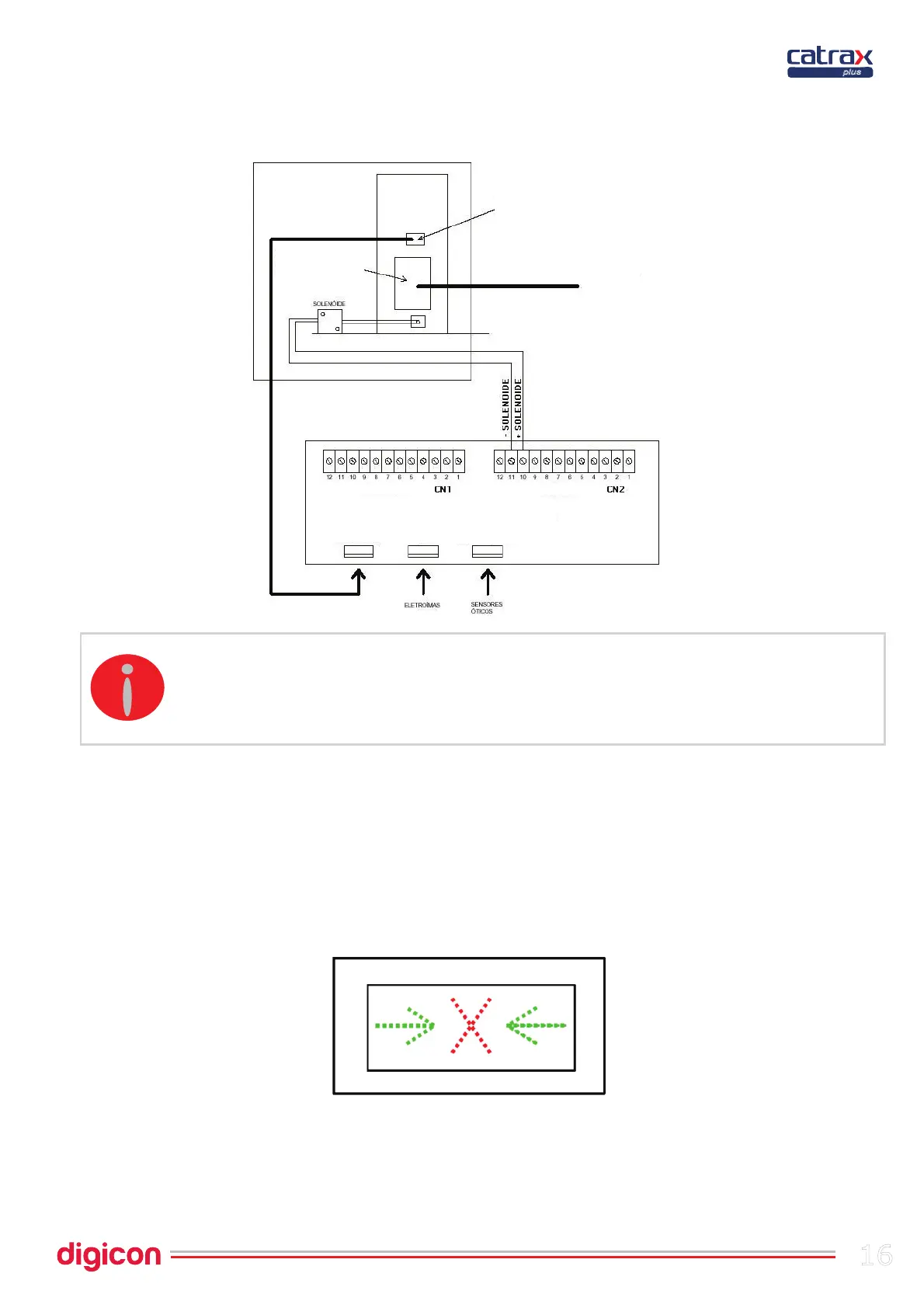

Connection of collecting box kit to the control board:
6.2 Pictogram Kit
The pictogram kit visually signals the direction of passage (green arrows) or the passage
blocking (red X).
plus
INFORMATION:
- The box for cards is part of the kit and is positioned under the collecting kit.
- The badge reader is not part of the kit.
Card reader
(not included in
the kit)
To the access
control board
Sensor used for collecting the
card after 1.5 seconds
Inputs Outputs
Box sensor
Electromagnets
Turnstile
sensors
Digicon control board
