The control board also has inputs for optical controllers (Cn6), which monitor the
CATRAX Plus's turning (there is no mechanical wear) and two opto-isolated inputs for
liberating if necessary.CATRAX Plus
6.4.3 Outputs
CATRAX Plus presents outputs for return signals, electromagnets, pictogram, one
collecting box, and sound alarm.
6.4.3.1 Return signals

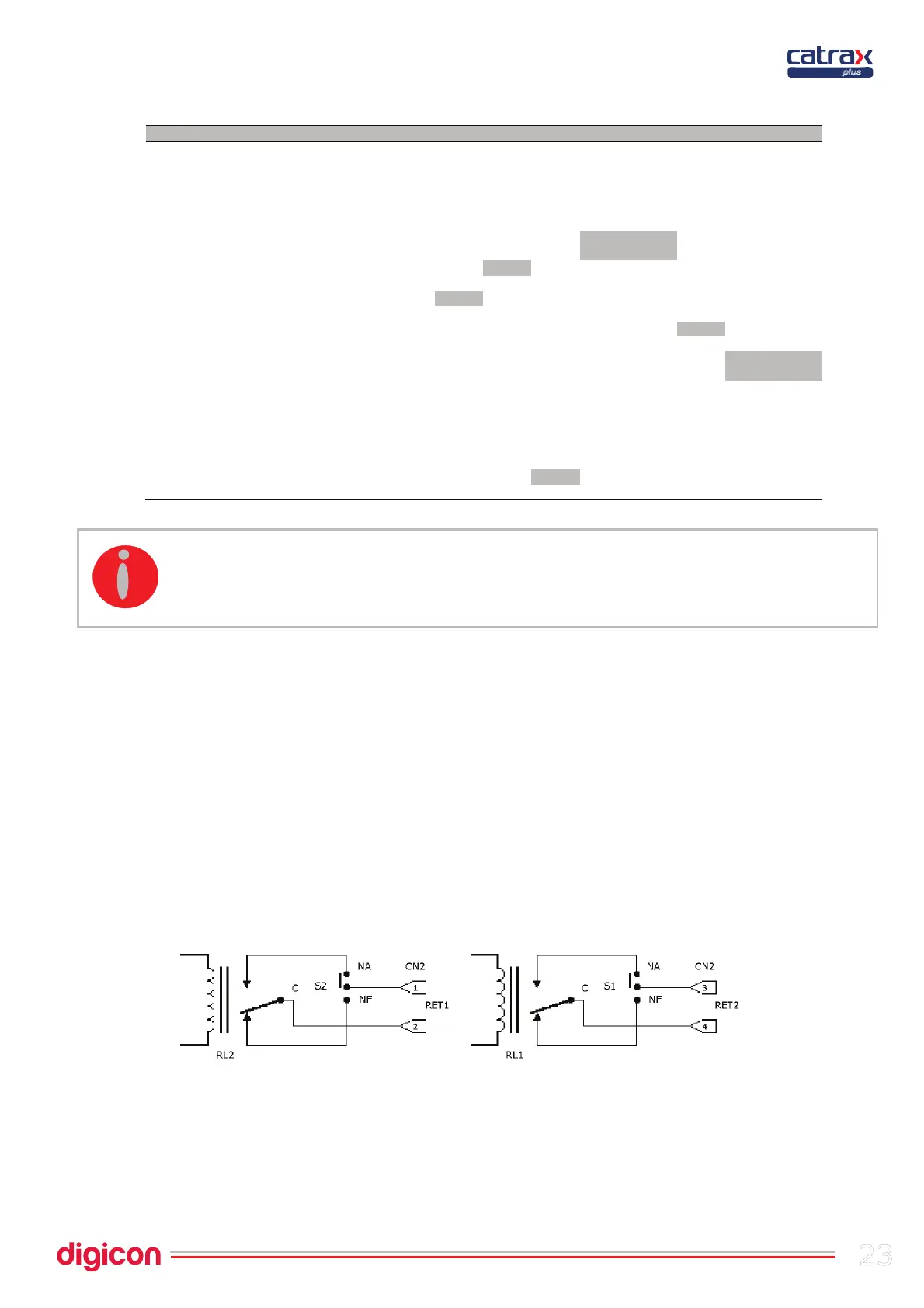

Return signals indicate the moment and direction of passage and are originated at the
relay – normally open contact (NO) or normally closed contact (NC). Connect the
outputs according to the image below:
plus
01
02
03
04
05
06
07
08
Cleared in both directions - - - OFF
OFF
- - -
Blocked from left to right - - - ON
OFF
- - -
Blocked form right to left - - - OFF
ON
- - -
Blocked in both directions - - -
ON
ON
-
- -
NO inputs -
ON
- - - - - -
NC inputs - OFF - - - - - -
Enables return from the start
ON
- - - - - - -
Disables return from the start OFF - - - - - - -
Enables sound signal in mid-turn - - - - -
ON
- -
Disables sound signal in mid-turn - - - - - OFF - -
Wait until first turn - - - - - -
ON
ON
Wait for 5 seconds - - - - - - OFF
ON
Wait for 10 seconds - - - - - - ON
OFF
Wait for 15 seconds - - - - - - OFF
OFF
Habilitation per border - -
OFF
- - - - -
Habilitation per level - - ON - - - - -
INFORMATION: The control board can be mounted to the support that
accompanies . The shadowed area indicates the factoryCATRAX Plus
configuration of Digicon's board.
