The device also presents two independent totalizer accumulators, one total and one
partial; only the latter can be reset during normal functioning.
To shift visualization of the counter kit between total and partial totalizers, just press the
key and release it in a short period. To identify which totalizer is being displayed, the
indication totAL or PArtial appears on screen, as well as a point on the right lower edge
for the partial totalizer and a point on the left lower edge for the total.

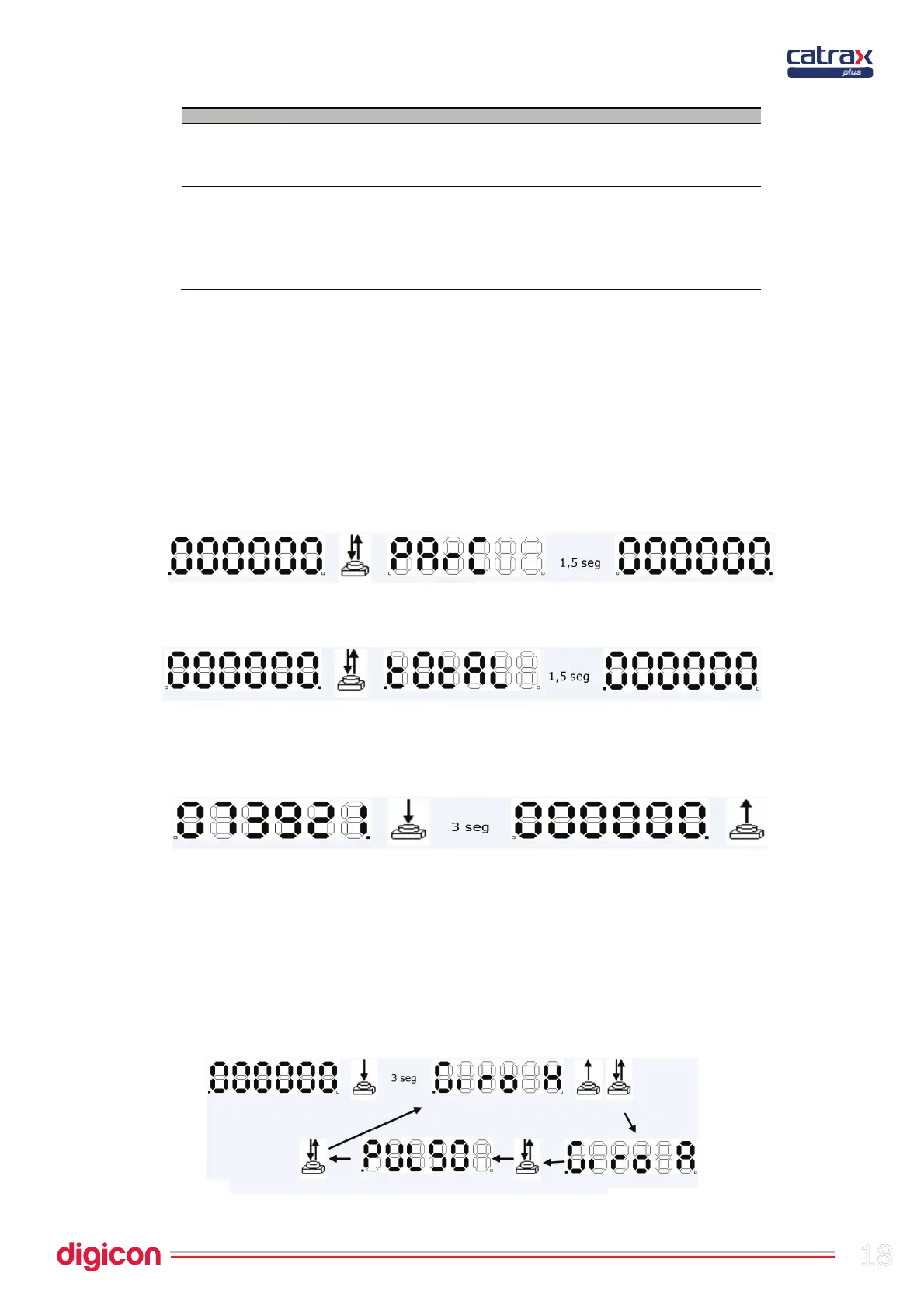

Visualization of partial counter:
Visualization of total counter
Resetting the partial totalizer
To reset the partial totalizer, it is necessary to access the partial visualization mode
and then press the function key for about 3 seconds (or until all the digits are zero).
Configuration of operation mode:
The counter can be configured to count pulses or turns clockwise or anti-clockwise (the
denomination “clockwise” and “anti-clockwise” only serves to distinguish the two tuning
directions). To configure the counter, it is necessary to access the total visualization
mode and proceed as shown:
C N 1
1 G ro u n d w ire
2 In p u t s enso r 1
3 In p u t s enso r 2
CN2
1 E xte rn a l supp ly o f 5 V (b atte ry elim in a to r)
2 G ro u n d w ire
3 In p u t fo r c le ara n ce k ey o f fro n ta l key
CN3
1 G ro u n d w ire
2 Pow e re d by b atte rie s of 3V (tw o AA b a tte rie s of 1 .5 V )
plus
