Chapter 4: Connecting Your Studio 39
Connecting an ADAT to Digi 001
If you are using an ADAT or other ADAT format optical device with Digi 001, you can
connect it to the optical ports on the Digi 001 PCI Card. You can also connect a S/PDIF
device that uses optical connectors to this port.
After you have installed, configured, and launched Pro Tools LE, use the following
instructions for connecting an ADAT.
To connect an ADAT to Digi 001:
1 Connect the ADAT optical output to the Optical In port on the Digi 001 PCI Card.
2 Connect the ADAT optical input to the Optical Out port on the Digi 001 PCI Card. When
the Digi 001 is on, its Optical Out port emits a red light.
3 In Pro Tools LE, choose Setups > Playback Engine and select Optical from the Sync Mode
pop-up.
4 Click Other Options and select ADAT from the Input Format pop-up.

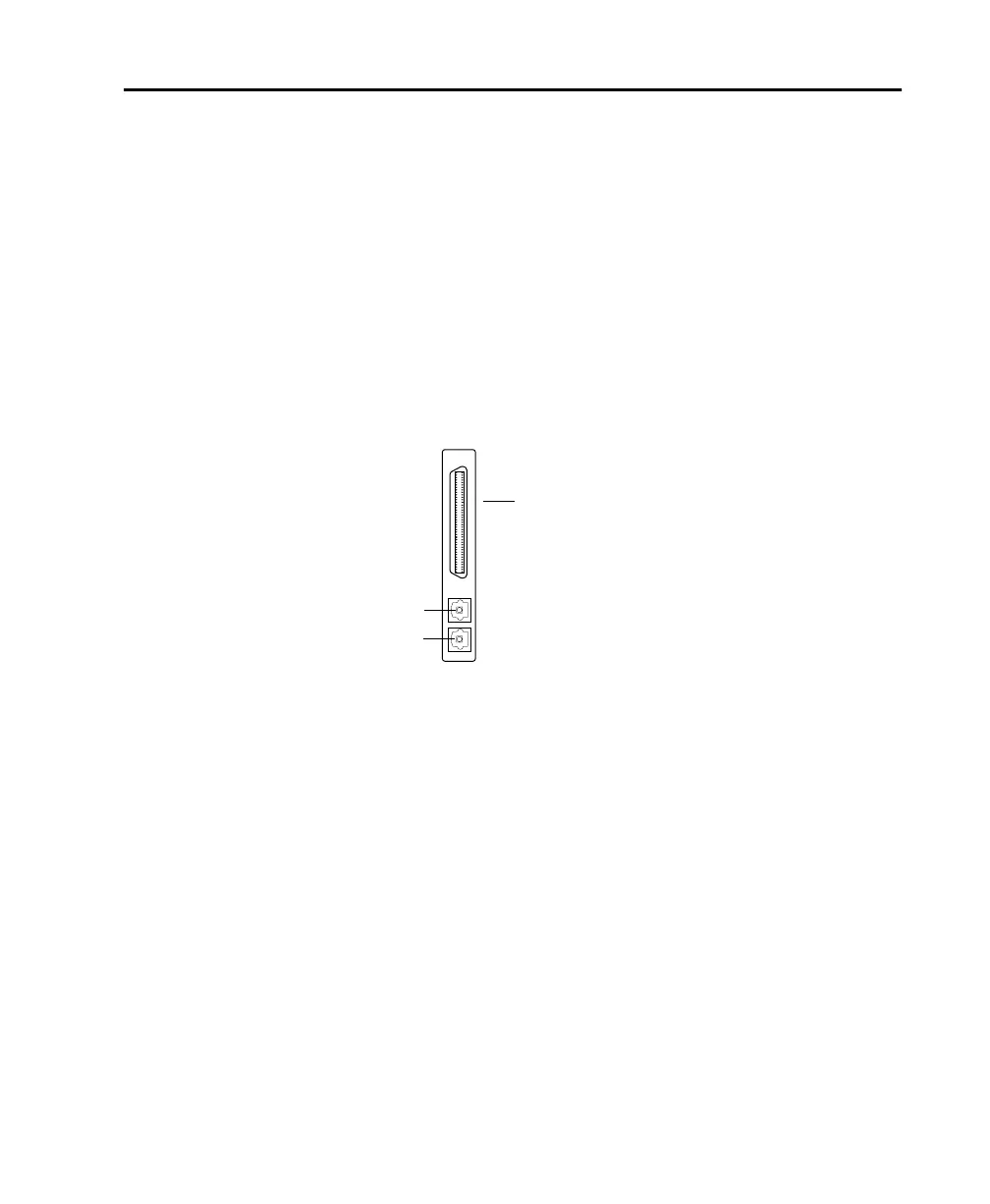

Red light indicates optical output
out
in
Digi 001 PCI Card
