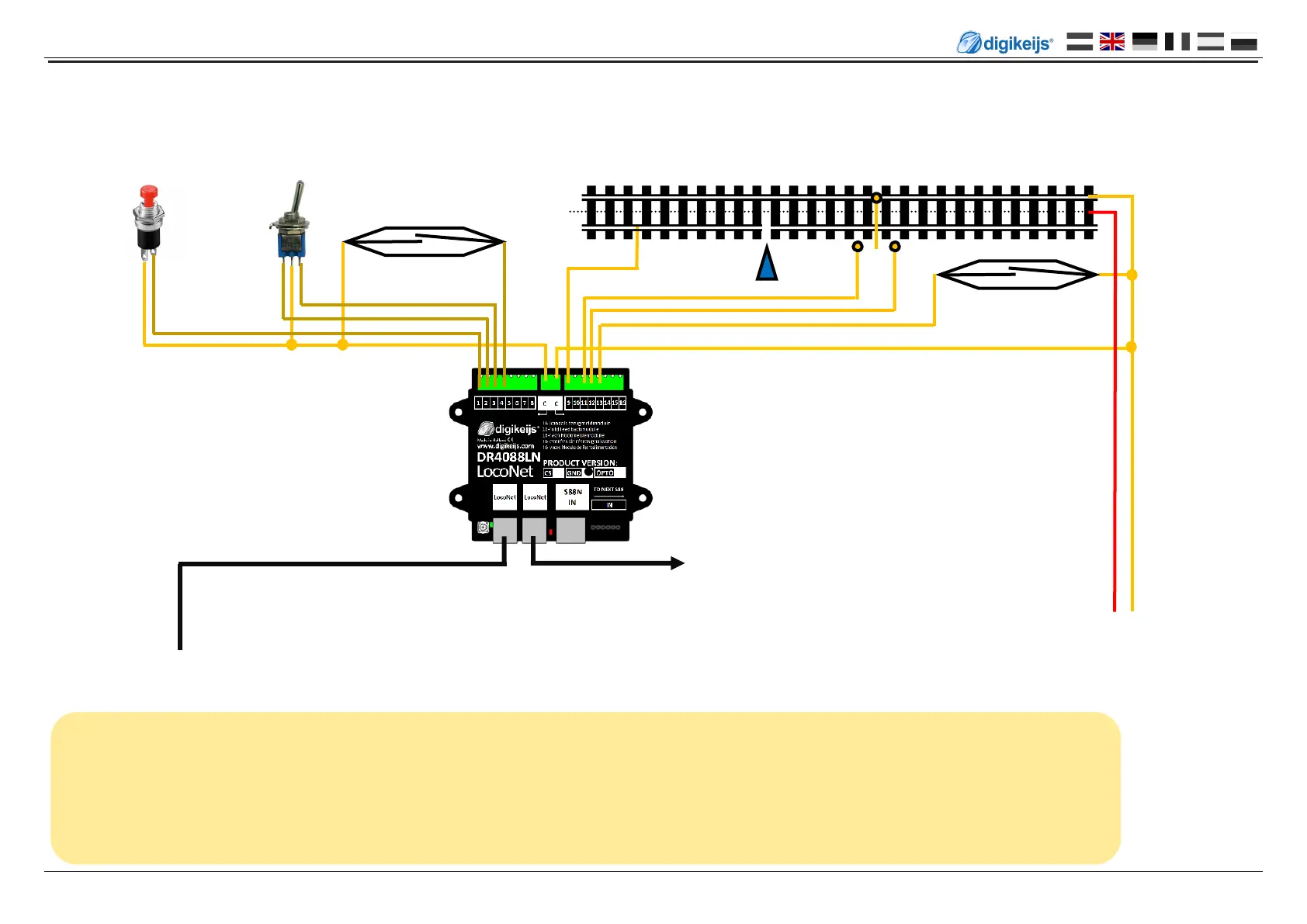

4.5 Feedback modules DR4088LN-GND;switches, buons, reed contacts
push buon
switch
reed contact
DR4088LN-GND
More DR4088LN-xx
feedback unit
Feedback "Track mass" switch track reed contact
Track Out
Central
LocoNet®
Central
Important! DR4088LN-GND 3-wire operaon DR4088LN-GND 3-wire operaon:
Due to the H-bridge (track output) in the DR50xx, feedback devices in the DR4088LN-GND version must not be used against track ground,
as is usually the case with 3-wire tracks. This inevitably leads to the destrucon of the DR50xx.
If a 3-wire driver sll wants to drive with the DR5000 and report back against track ground, the DR4088OPTO
can be used.
