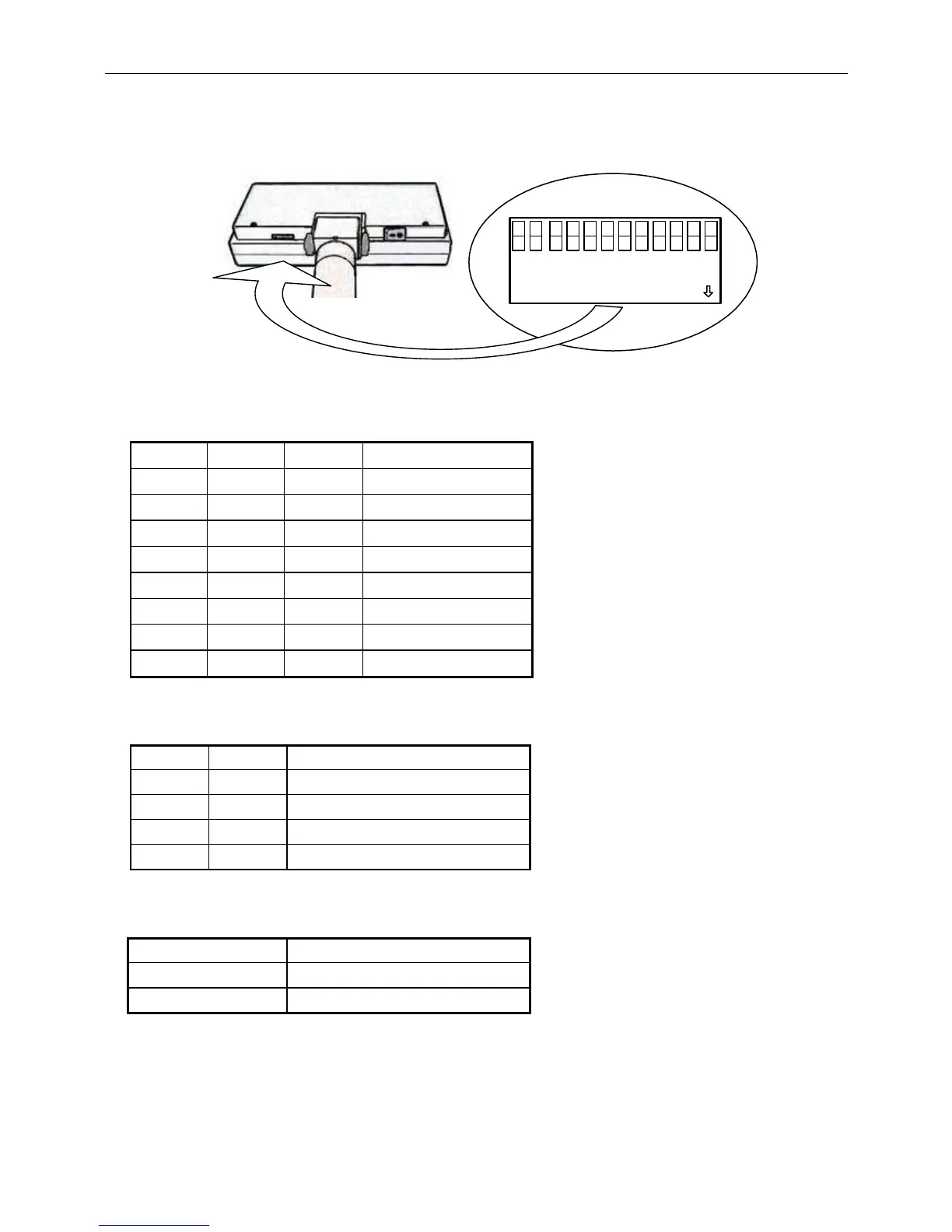

7. DIP SWITCH SETTING
7.1 Command type selection
SW1 SW2 SW3 Command type
ON ON ON DSP800
OFF ON ON ESC/pos
ON OFF ON PD3000
OFF OFF ON ADM 788
ON ON OFF EMAX(Aedex)
OFF ON OFF UTC/P
ON OFF OFF UTC/S
OFF OFF OFF CD5220
Table 7-1
7.2 Baud rate selection
SW8 SW9 Baud rate (bps)
ON ON 4800
OFF ON 9600
ON OFF 19200
OFF OFF 115200
Table 7-2
7.3 Parity check selection
SW10 Parity & data bits
ON None-parity , 8 data bits
OFF Even-parity , 7 data bits
Table 7-3
ON
1 2 3 4 5 6 7 8 9 10 11 12
DIP
