Digital Ally, Inc. | Installation Instructions
3-7
DVM-800 Installation Guide | 860-00185-00 Rev L
Go Back To Table of Contents

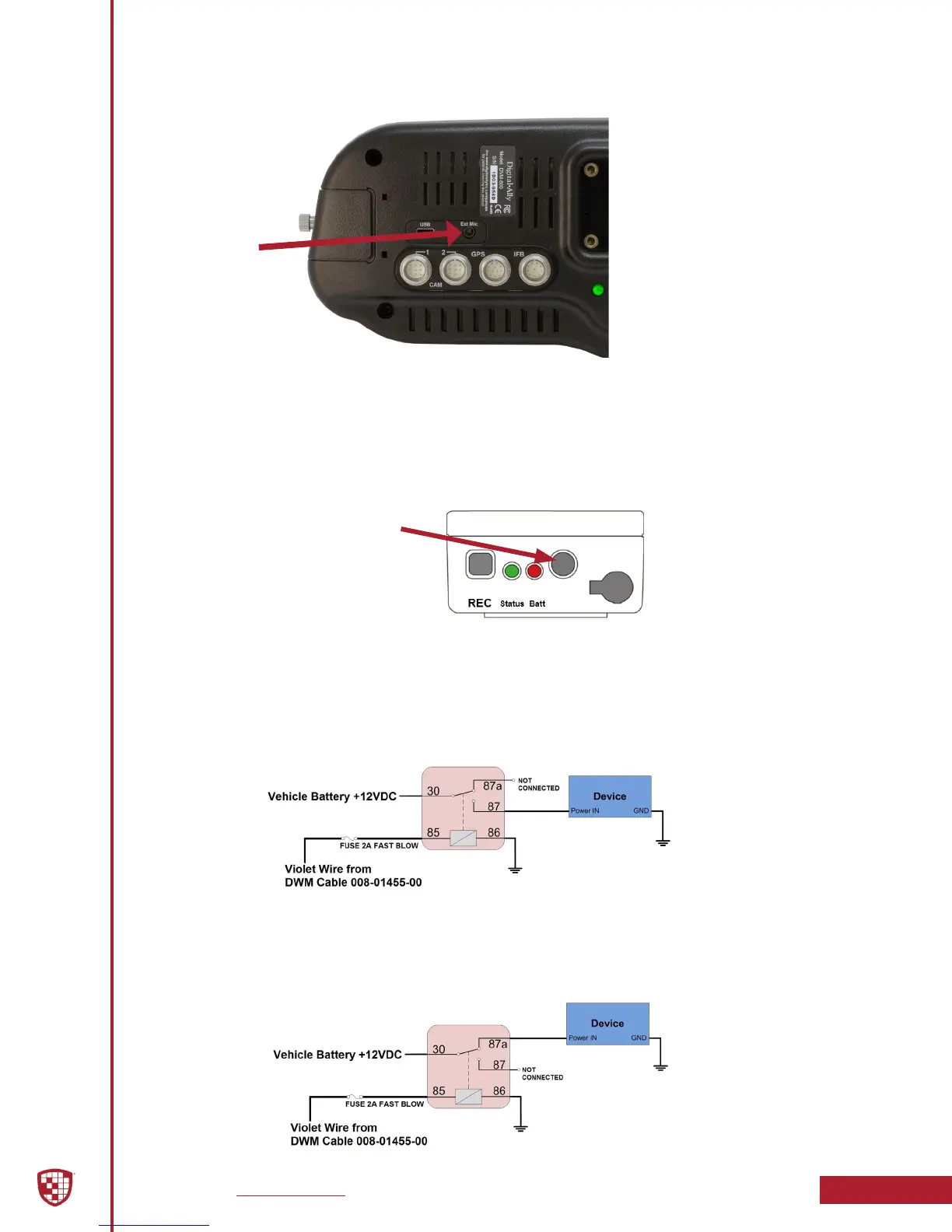

When connecting the 3.5mm Audio Plug to the Ext Mic jack on the back of the DVM, be
sure to leave enough slack in the cable to allow for adjustment of the mirror.
3.5mm Audio
Input Jack
Remote Accessory Out
The Remote Accessory Out button (unmarked) on the top of the DWM Microphone
Transmitter can be congured to activate or deactivate an auxiliary device. Below is a
general outline showing how this can be wired using an interposing relay.
The device, relay, and fuse are optional customer provided items. Be sure to select a
relay which can handle the power requirements of your device.
Example Relay Wiring Diagrams:
1. Activate device when button is momentarily pressed: To activate a
+12VDC device that is normally o by default by pressing the button,
connect it as shown below. When the button is pressed once, the relay will
be energized and the external device will be powered on. When the button
is pressed again, the relay will not be energized and the device will turn o.
2. Deactivate device when button is momentarily pressed: To deactivate a
+12VDC device that is normally on by default by pressing the button,
connect it as shown below. When the button is pressed once, the relay will
be energized and the device be powered o. When the button is pressed
again, the relay will not be energized and the device will be powered on.
Remote Accessory Button
Note: Pressing this button does not
cause a recording to start.
