Digital Ally, Inc. | Parts List and System Diagrams
2-1
DVM-800 Installation Guide | 860-00185-00 Rev L
Go Back To Table of Contents
DVM-800 Standard Parts Kit 001-00081-00
External Camera Packages are shown on the next page

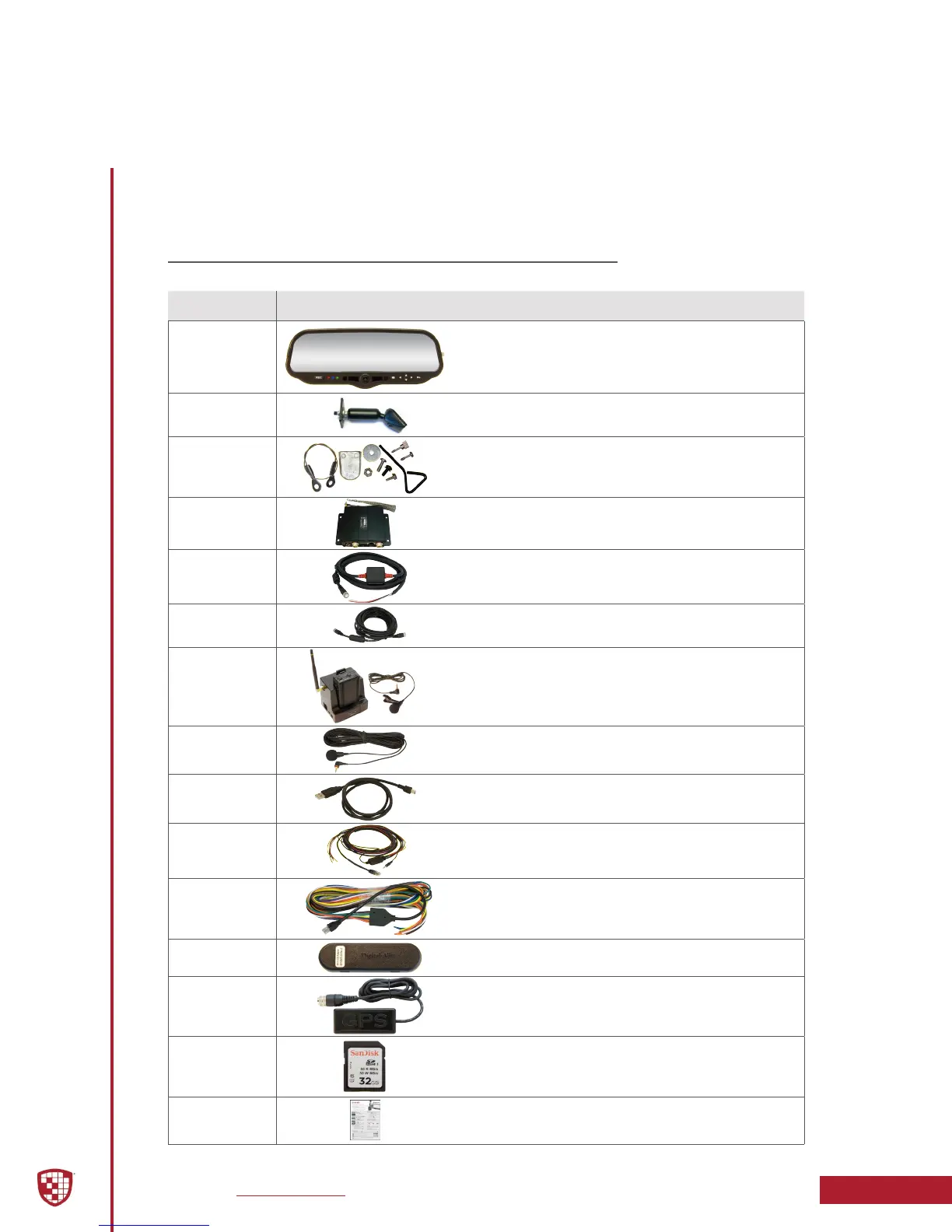

Part # Image and Description
006-08265-31 DVM-800, Main Unit
002-05146-00
DVM Mount Assembly
002-05168-00
Accessory Kit: Includes Windshield Mounting Puck,
Lanyard, Mounting Hardware, Security Tamper
Resistant Screw and Key Kit
006-08210-01
IF Box (model IFE-20)
008-01388-00
Cable, Main Power to IF Box 3.1m (10.1ft.)
008-01386-01
Cable, IF Box to DVM 4.6m (15.0ft.)
002-05185-00
DWM-928 System, (900MHz) Includes Wireless
Microphone, Charging Cradle, Mounting Bracket,
and Lapel Microphone. (DWM-865 version available
for countries that require 800MHz)
004-09064-00
Backseat Microphone for DWM-928/865, 20ft.
2.5mm plug
008-0100
Cable, USB 2.0 Type A to Mini-B, 3.3 ft.
008-01455-00
Cable, Wireless Microphone to DVM-800
008-01464-00
Cable, IF Box, Sensor, RJ45
001-00010-20
Wi-Fi Antenna
008-01410-00
GPS Module
363-00087-00
SD card, 32GB
860-00184-00
Quick Reference Guide
Section 2
Parts List and System Diagrams
