Digital-Ally DVM-800 Installation Guide

Digital Ally, Inc. | Parts List and System Diagrams
2-2
DVM-800 Installation Guide | 860-00185-00 Rev L
Go Back To Table of Contents

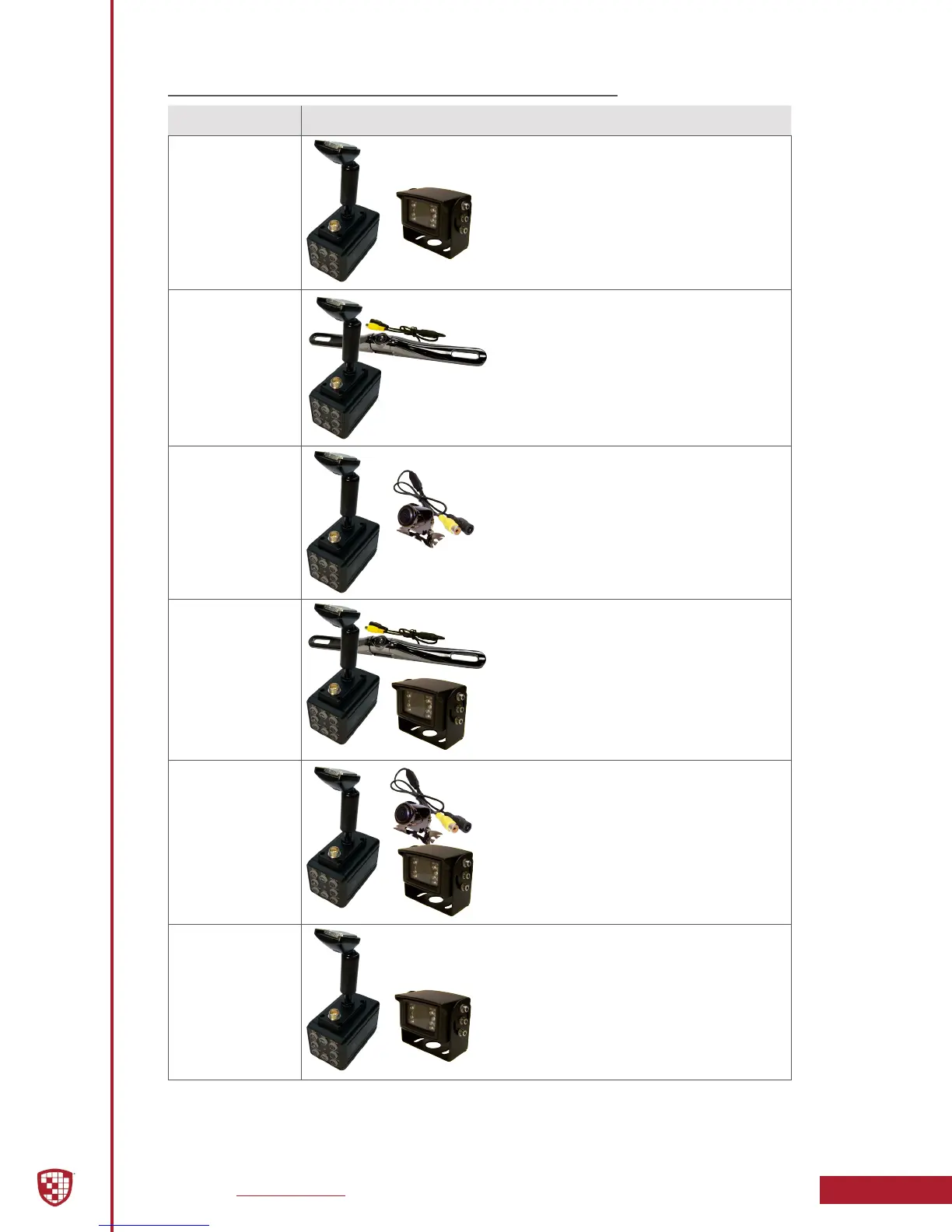

External Camera Packages
Part Number Kit Contents
Option 1
Front 12XC Camera
& Backseat Camera
with 2 Cables
002-05136-12
• 566-00138-00 Front 12XC Camera
• 566-00134-00 Backseat Camera,
w/Smart IR, Reverse Image Switch,
Water Resistant (IP69)
• 008-01390-00 Backup Camera Cable
• 008-01442-00 Cable, 12XC Camera to
DVR
Option 2A
Front 12XC Camera
& License Plate
Camera
002-05136-21
• 566-00138-00 Front 12XC Camera
• 566-00141-00 License Plate Backup
Camera w/adapter cable
• 008-01390-00 Backup Camera Cable
• 008-01442-00 Cable, 12XC Camera to
DVR
Option 2B
Front 12XC Camera
& Mini Backup
Camera
002-05136-22
• 566-00138-00 Front 12XC Camera
• 566-00144-00 Mini Backup Camera
w/adapter cable
• 008-01390-00 Backup Camera Cable
• 008-01442-00 Cable, 12XC Camera to
DVR
Option 3A
Front 12XC Camera,
Backseat Camera
& License Plate
Camera
002-05136-32
• 566-00138-00 Front 12XC Camera
• 566-00141-00 License Plate Backup
Camera w/adapter cable
• 566-00134-00 Backseat Camera,
w/Smart IR, Reverse Image Switch,
Water Resistant (IP69)
• 008-01390-00 Backup Camera Cable
• 008-01443-00 Y-Cable, 12XC Camera
and Backseat Camera to DVR
Option 3B
Front 12XC Camera,
Backseat Camera
& Mini Backup
Camera
002-05136-33
• 566-00138-00 Front 12XC Camera
• 566-00134-00 Backseat Camera,
w/Smart IR, Reverse Image Switch,
Water Resistant (IP69)
• 566-00144-00 Mini Backup Camera
w/adapter cable
• 008-01443-00 Y-Cable, 12XC Camera
and Backseat Camera to DVR
• 008-01390-00 Backup Camera Cable
Option 4
Front 12XC Camera
& Backseat Camera
with Y-Cable
002-05136-42
• 566-00138-00 Front 12XC Camera
• 566-00134-00 Backseat Camera,
w/Smart IR, Reverse Image Switch,
Water Resistant (IP69)
• 008-01443-00 Y-Cable, 12XC Camera
and Backseat Camera to DVR
