Connecting Cables
5-8 Connecting and Removing Cables and Adapters
Cabling the AUI 10BASE-T Port Adapter
Figure 5-6 shows how to cable the 15-Pin AUI 10BASE-T port adapters.

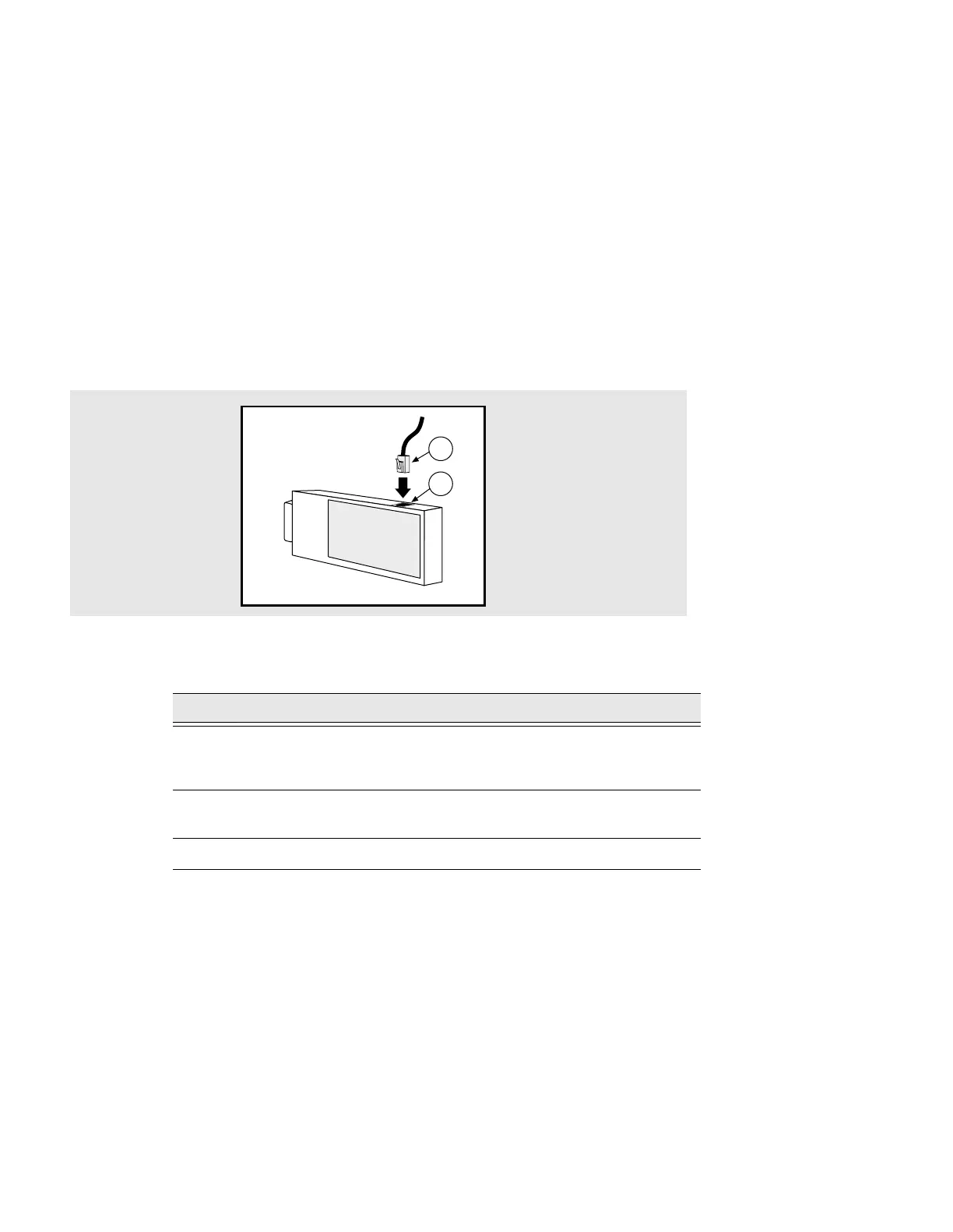

Figure 5-6: Cabling the AUI 10BASE-T Port Adapter
To cable an adapter, complete the following steps:
Step Action
1 Align the 10BASE-T connector (1) with the port on the AUI adapter (2).
Ensure that the locking tab is positioned properly in relation to the
10BASE-T connector on the AUI adapter.
2 Insert the 10BASE-T connector (1) into the port on the AUI adapter (2)
until the locking tab snaps into position.
3 Connect the other end of the cable to a repeater.
3505-29
2
1
