Removing the Cables
5-16 Connecting and Removing Cables and Adapters
Removing Cables from the AUI BNC Port Adapter

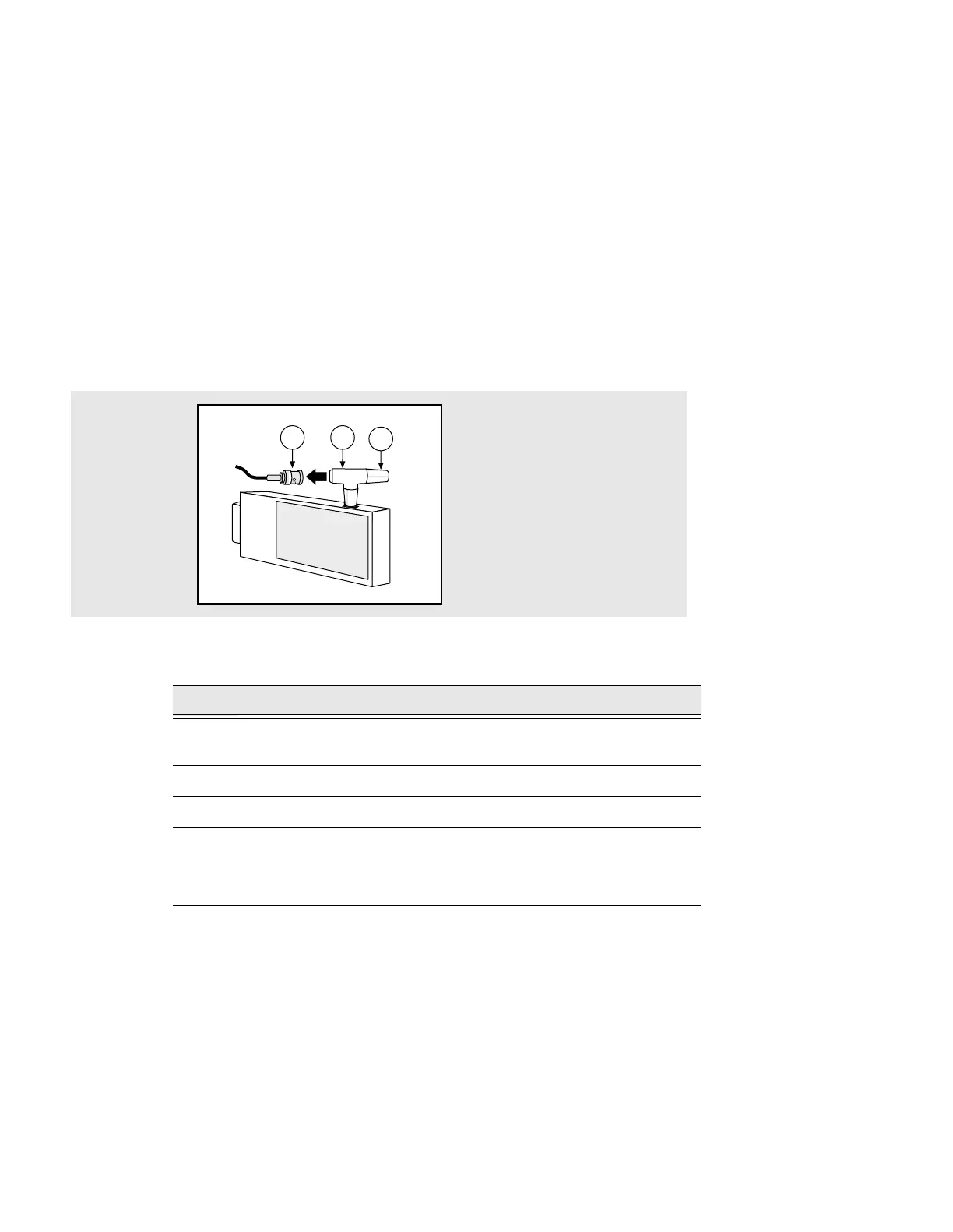

Figure 5-14 shows how to remove cables from the 15-Pin AUI BNC port adapters.
Figure 5-14: Removing AUI BNC Port Adapter Cables
To remove the cable from the adapter, complete the following steps:
Step Action
1 Turn the BNC connector (1) to the left to unlock the connector from the
T-connnector (2) on the AUI port.
2 Remove the BNC connector (1) from the terminator (3).
3 Remove the other end of the cable from the repeater (Optional).
4 To remove the T-connector (2):
a. Turn the T-connector to the left to unlock it from the AUI port.
b. Pull the T-connector from the AUI port.
3505-37
1 2
3
