B-7
Cabling and Adapters Used with DECserver
Figure B-5 shows the crossover cable connection that can be used when cabling the
10BASE-T or 8-Pin MJ to the DECserver.

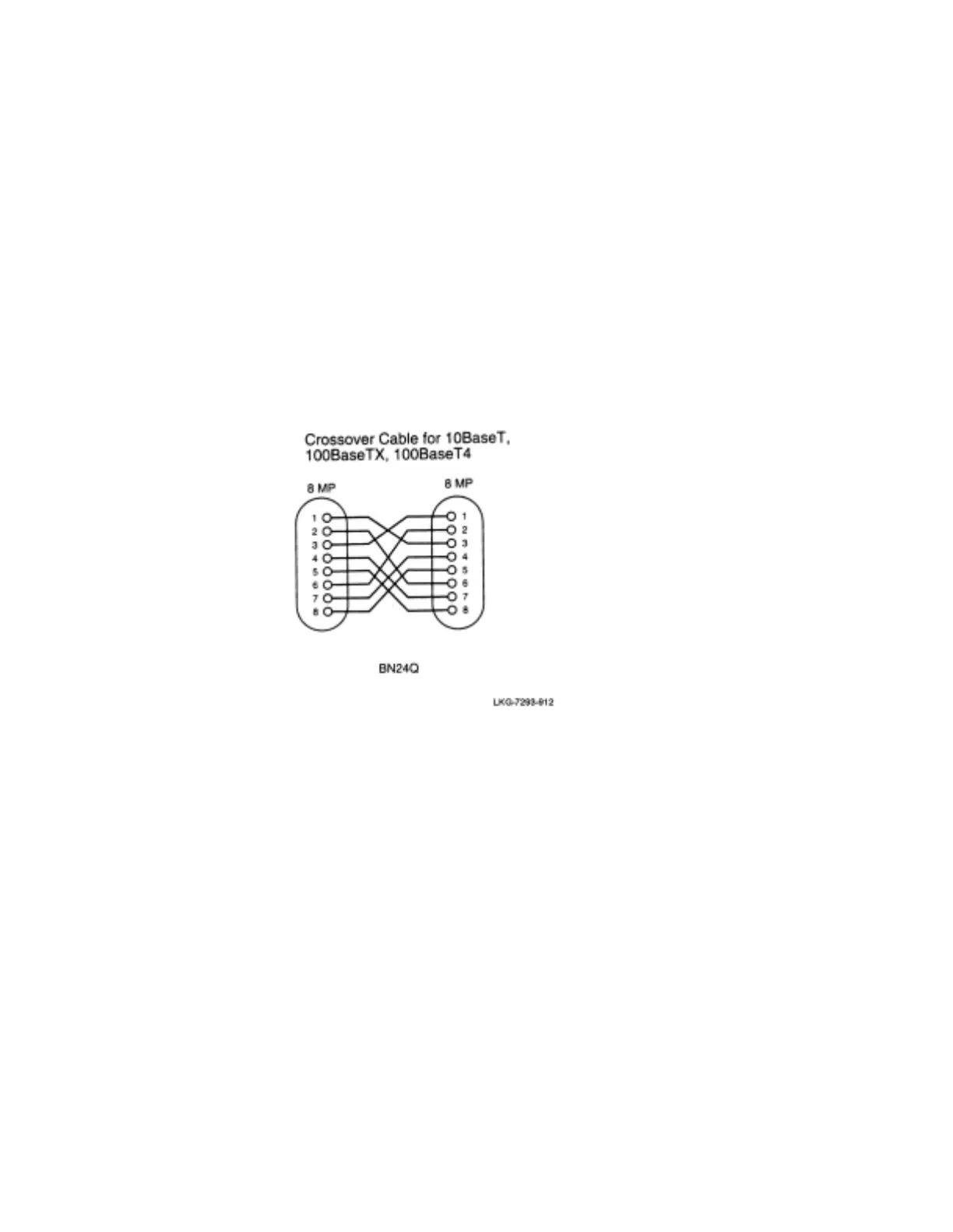

Figure B-5: 10BASE-T and 8-Pin MJ Crossover Cable Connection.
