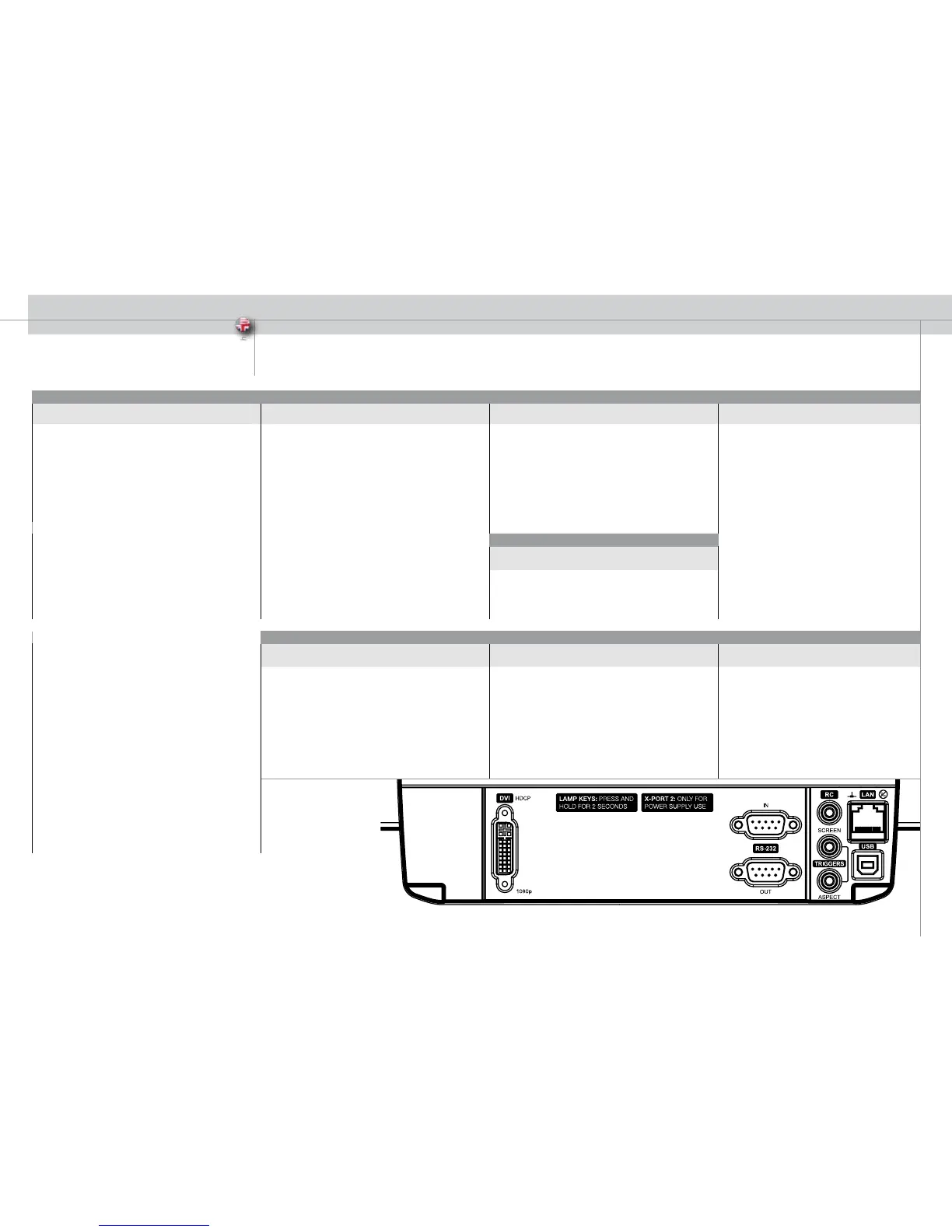

CONNECTORS
Computer DVI RS-232 in RC in LAN
DVI-D 9 PIN DSUB FEMALE
3,5mm stereo
mini jack
RJ 45
1 TMDS Data 2- 1 NC TIP: 5V DC 1TX+
2 TMDS Data 2+ 2 RXD RING: SIGNAL 2TX-
3 TMDS Data 2/4 Shield 3 TXD STEM: GND 3RX+
4 Not used 4 NC 4GND
5 Not used 5 GND 5GND
6 DDC Clock 6 NC 6RX-
7 DDC Data 7 NC 7GND
8 NC 8 NC 8GND
9 TMDS Data 1-
10 TMDS Data 1+
Screen
11 TMDS Data 1/3 Shield
3.5mm mini jack
12 Not used
13 Not used TIP: 12V DC
14 +5V Power 60mA max
STEM: GND
RS-232 out Aspect USB
9 PIN DSUB MALE 3.5mm mini jack DIGITAL USB
1 NC TIP: 12V DC 1 VCC
2 TXD 80mA max 2 -Data
3 RXD STEM: GND 3 +Data
4 NC 4 GND
5 GND
6 NC
7 NC
8 NC
