Digital Projection dVision 1080p - Ceiling Mount Installation; Mounting Requirements

english
20
The projector can be ceiling mounted using an approved UL
tested/ listed ceiling mount fixture, with a capacity of minimum
60 kg / 130 lbs.
For ceiling mount use M6 screws that penetrate maximum 15
mm / 0.6” into the projector body.
For proper ventilation the minimum distance from ceiling/ rear
wall should be: 30/ 50 cm, 12/ 20 inch.

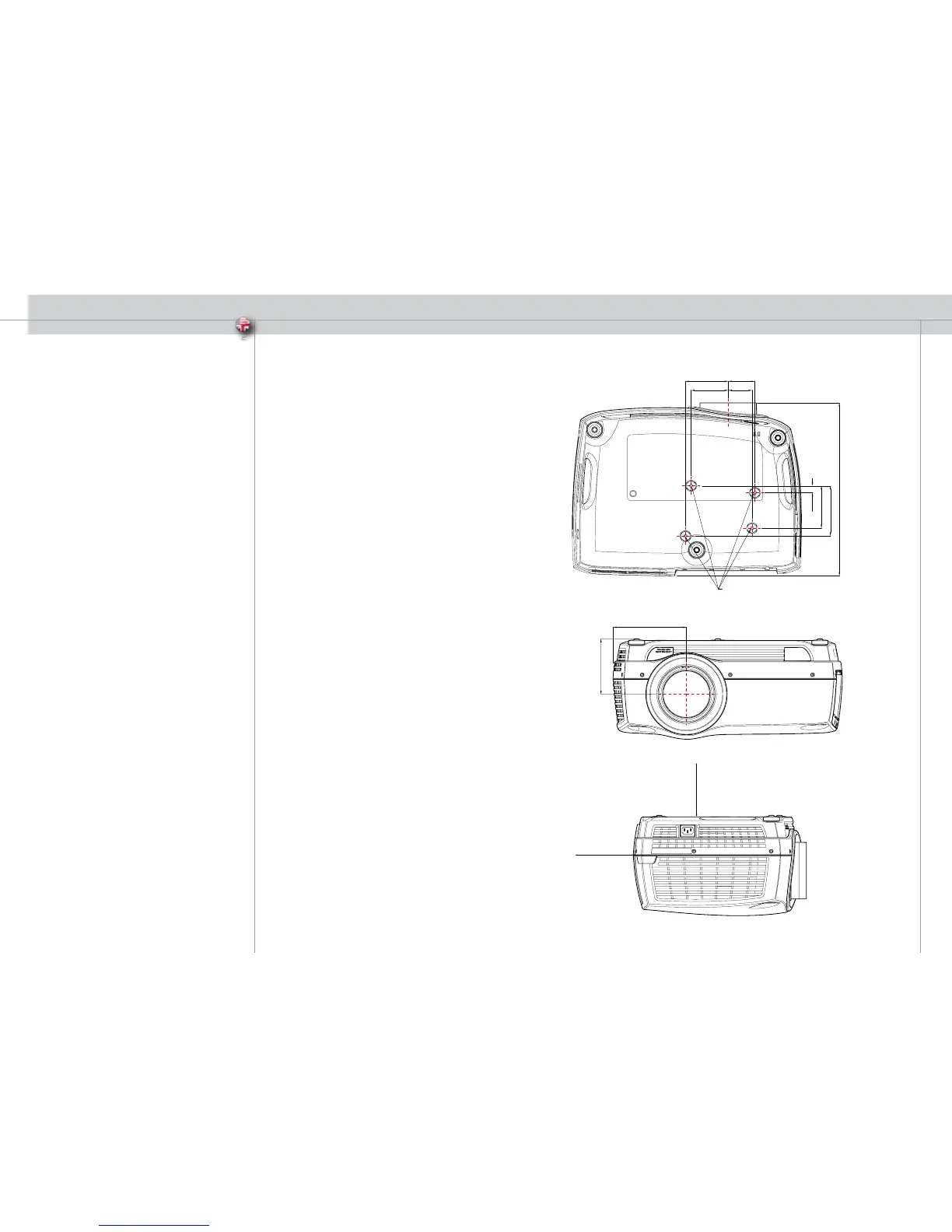

CEILING MOUNT
123,1
163,3
300mm
500mm
Ceiling Mount Interface
M6 Threads
384,9
111,8
94,3 15,5
95
82,5
59,5
53
123,1
163,3
300mm
500mm
Ceiling Mount Interface
M6 Threads
384,9
111,8
94,3 15,5
95
82,5
59,5
53
123,1
163,3
300mm
500mm
Ceiling Mount Interface
M6 Threads
384,9
111,8
94,3 15,5
95
82,5
59,5
53
