Digital Projection E-Vision Laser 7500 Series - Diagonal Screen Sizes

page 82
Digital Projection E-Vision Laser 7500 & 8500 Series
Reference Guide
SCREEN REQUIREMENTS
Rev B September 2016
Diagonal screen sizes

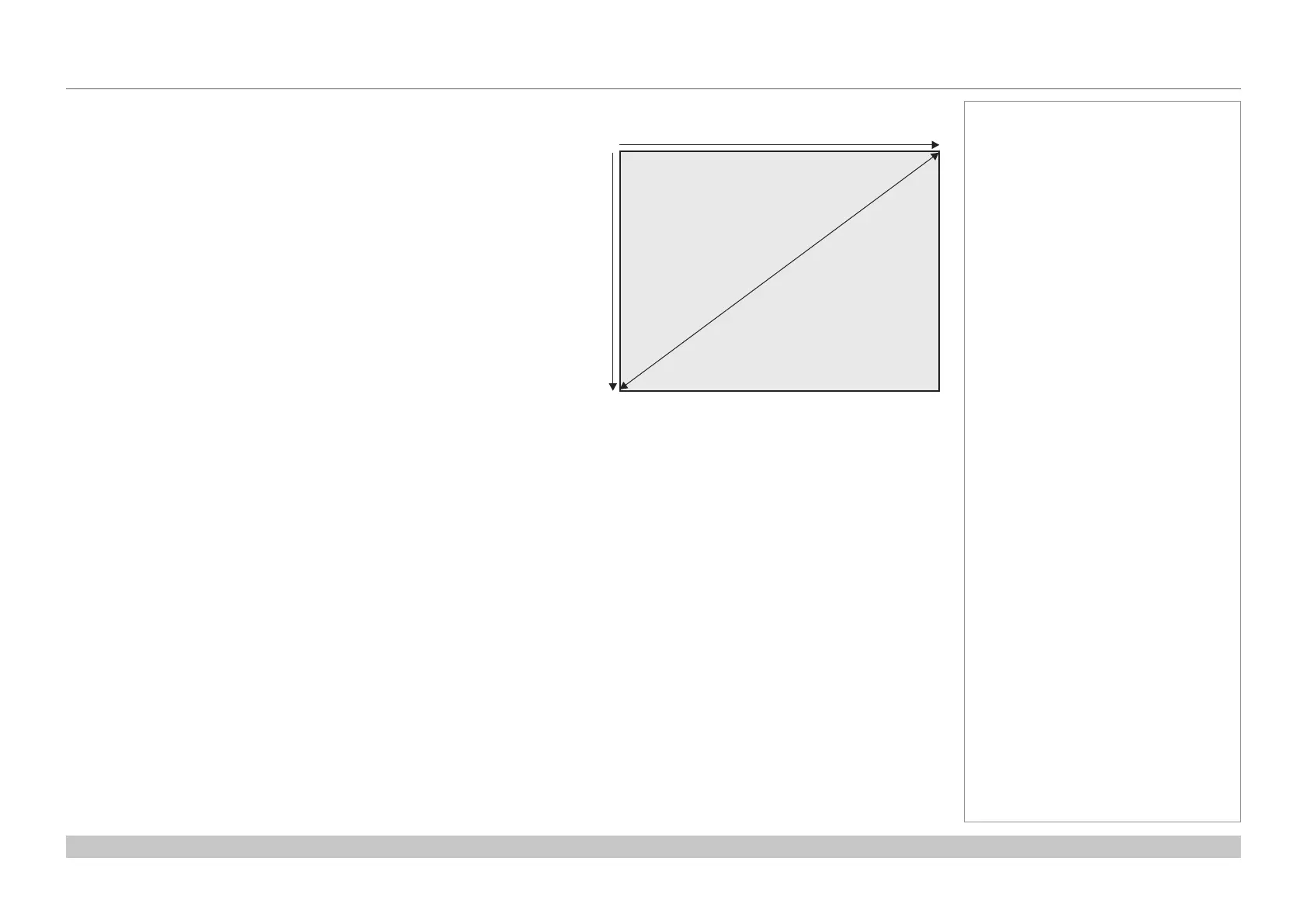

Screen sizes are sometimes specied by their diagonal size (D). When dealing
with large screens and projection distances at different aspect ratios, it is more
convenient to measure screen width (W) and height (H).
The example calculations below show how to convert diagonal sizes into width and
height, at various aspect ratios.
2.35:1 (Scope)
W = D x 0.92 H = D x 0.39
1.85:1
W = D x 0.88 H = D x 0.47
16:9 = 1.78:1
W = D x 0.87 H = D x 0.49
1.66:1 (Vista)
W = D x 0.86 H = D x 0.52
16:10 = 1.6:1 (native aspect ratio for WUXGA projectors)
W = D x 0.85 H = D x 0.53
Notes
D = diagonal
W = width
H = height
