DS6 User Manual
1. HARDWARE / What's included

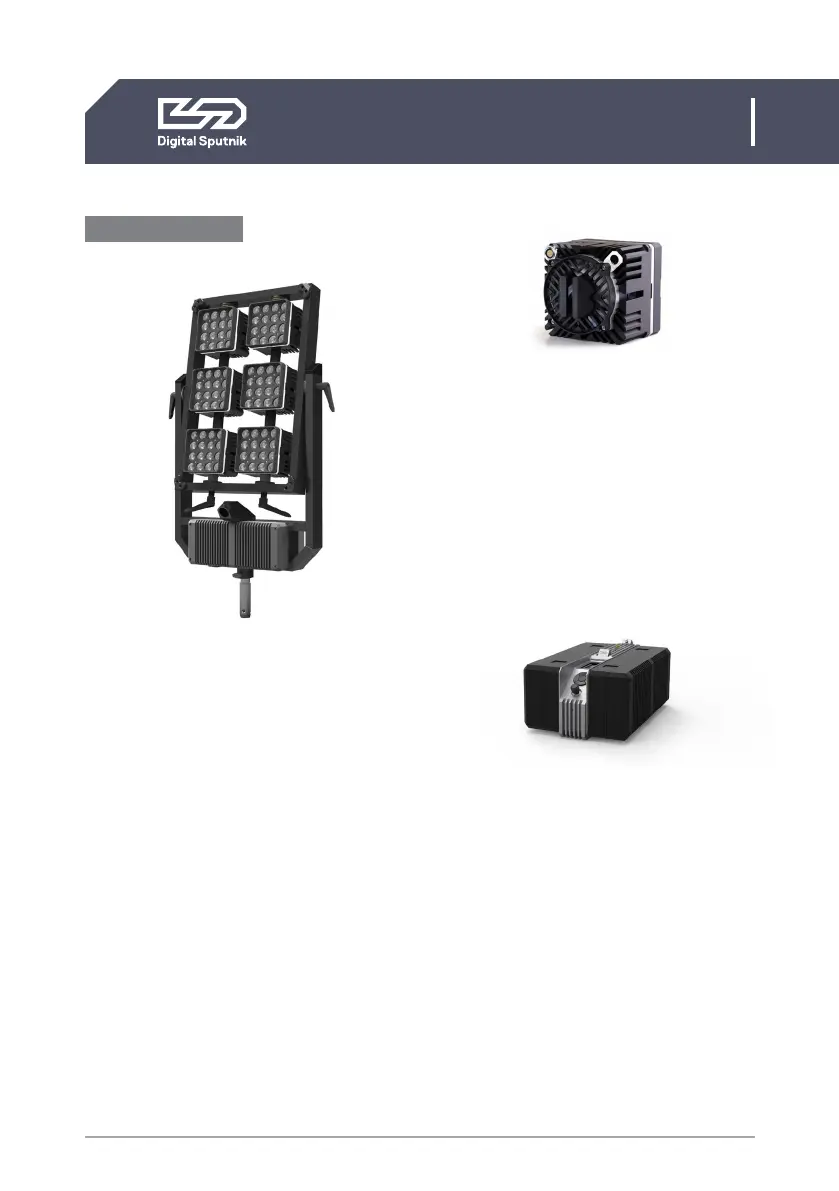

What's included:
PSU - Can also be referred to as Ballast.
The brain of the operations, gives power
and controls the light modules. The PSU
will accept AC Voltage range of 98v-260v
and will only draw 600 watts at 6 amps
Max for DS6 unit.
Frame - The DS6 is a frame fitted with 6
independent RGBW light modules. Cabling
and dimmers are built into the frame to
forestall a tangle of wiring and connec-
tions. All modules are ready for individual
control.
• Mount 1 1/8” / 28mm Junior pin
The frame can be inclined frontwards and
backwards. The two vertical beams of light
modules can be individually rotated.
Light module - has 16 RGBW LEDs
under its collimator lens. Each light module
has been factory calibrated with a specific
profile saved into it. Constant color coordi-
nates are kept through the dimming range
using high-precision, multi-dimensional
LUTs (lookup tables). The Light module
stores DMX Addressing info.
