LEFT INPUT
RIGHT MAIN
LEFT MAIN

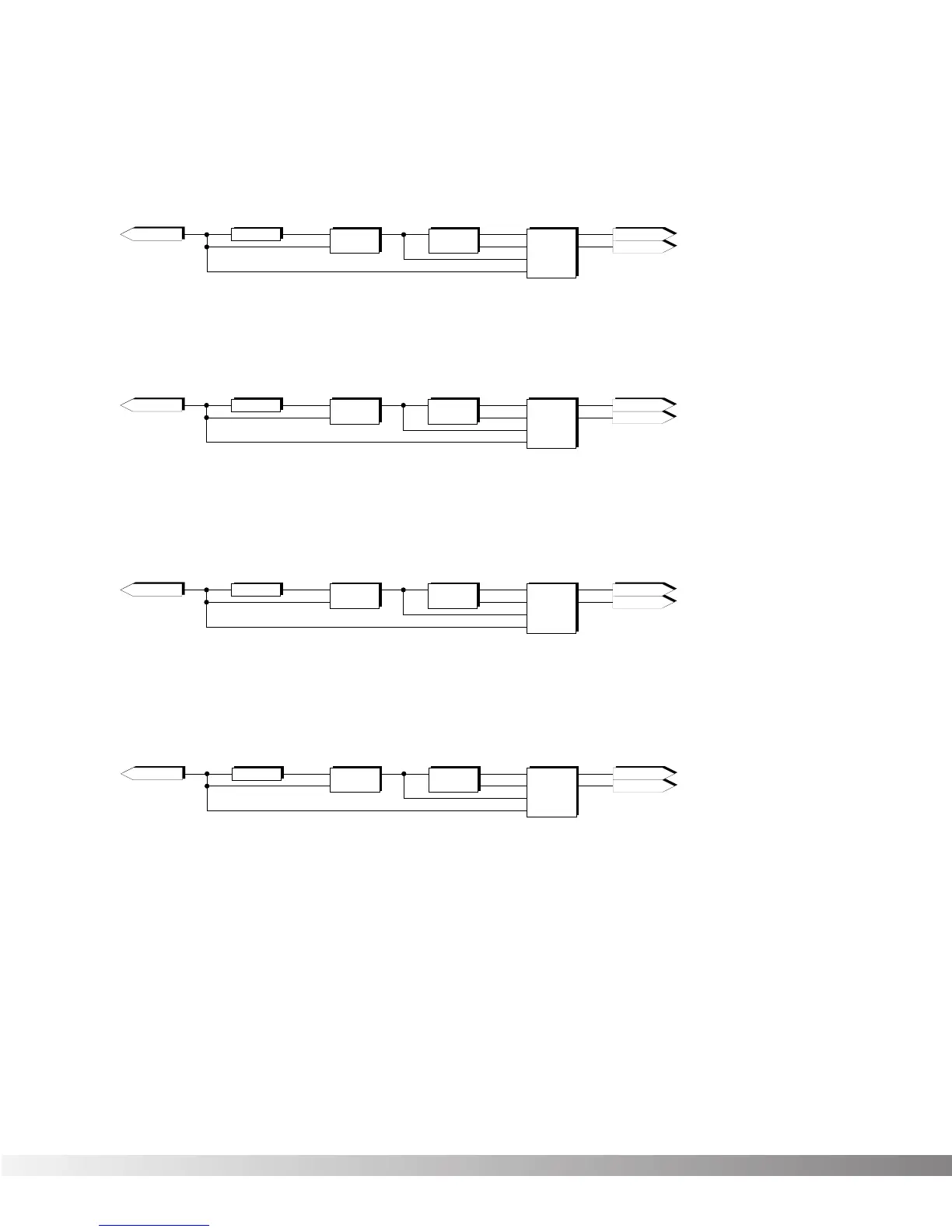

Algorithm #28
Dly -> Dual Chorus
4 x 2
Stereo 4 x 2 Mixer
Out 1
Inp 1
Inp 2
Out 2
Out L
Out R
In 1
In 2
Inp 3
In 3
Inp 4
In 4
Inp 1
Out 1
Dly
Mono Delay 1.0
LEFT INPUT
RIGHT MAIN
LEFT MAIN
Algorithm #29
Dly -> Dual Detune
2 x 1
Mono 2 x 1 Mixer
Out 1
Inp 1
Inp 2
4 x 2
Stereo 4 x 2 Mixer
Out 1
Inp 1
Inp 2
Out 2
Out L
Out R
In 1
In 2
Inp 3
In 3
Inp 4
In 4
Inp 1
Out 1
Dly
Mono Delay 1.0
LEFT INPUT
Algorithm #30
Dly -> Dual Flange
2 x 1
Mono 2 x 1 Mixer
Out 1
Inp 1
Inp 2
4 x 2
Stereo 4 x 2 Mixer
Out 1
Inp 1
Inp 2
Out 2
Out L
Out R
In 1
In 2
Inp 3
In 3
Inp 4
In 4
Inp 1
Out 1
Dly
Mono Delay 1.0
Algorithm #31
Dly -> Dual Phaser
Inp 1
Out 1
DDtn
Dual Detune
Out 2
Detune 1
Detune 2
Out 2
DFla
Dual Flange
Inp 1
Out 1
DCho
Dual Chorus
Inp 1
Out 1
Out 2
Cho 1
Cho 2
2 x 1
Mono 2 x 1 Mixer
Out 1
Inp 1
Inp 2
LEFT INPUT
Inp 1
Out 1
Dly
Mono Delay 1.0
4 x 2
Stereo 4 x 2 Mixer
Out 1
Inp 1
Inp 2
Out 2
Out L
Out R
In 1
In 2
Inp 3
In 3
Inp 4
In 4
2 x 1
Mono 2 x 1 Mixer
Out 1
Inp 1
Inp 2
Out 2
DPha
Dual Phaser
Inp 1
Out 1
RIGHT MAIN
LEFT MAIN
RIGHT MAIN
LEFT MAIN
Section 6 - Appendix
Valve FX Owner’s Manual
