DigiTech VALVEFX User Manual

77
LEFT INPUT

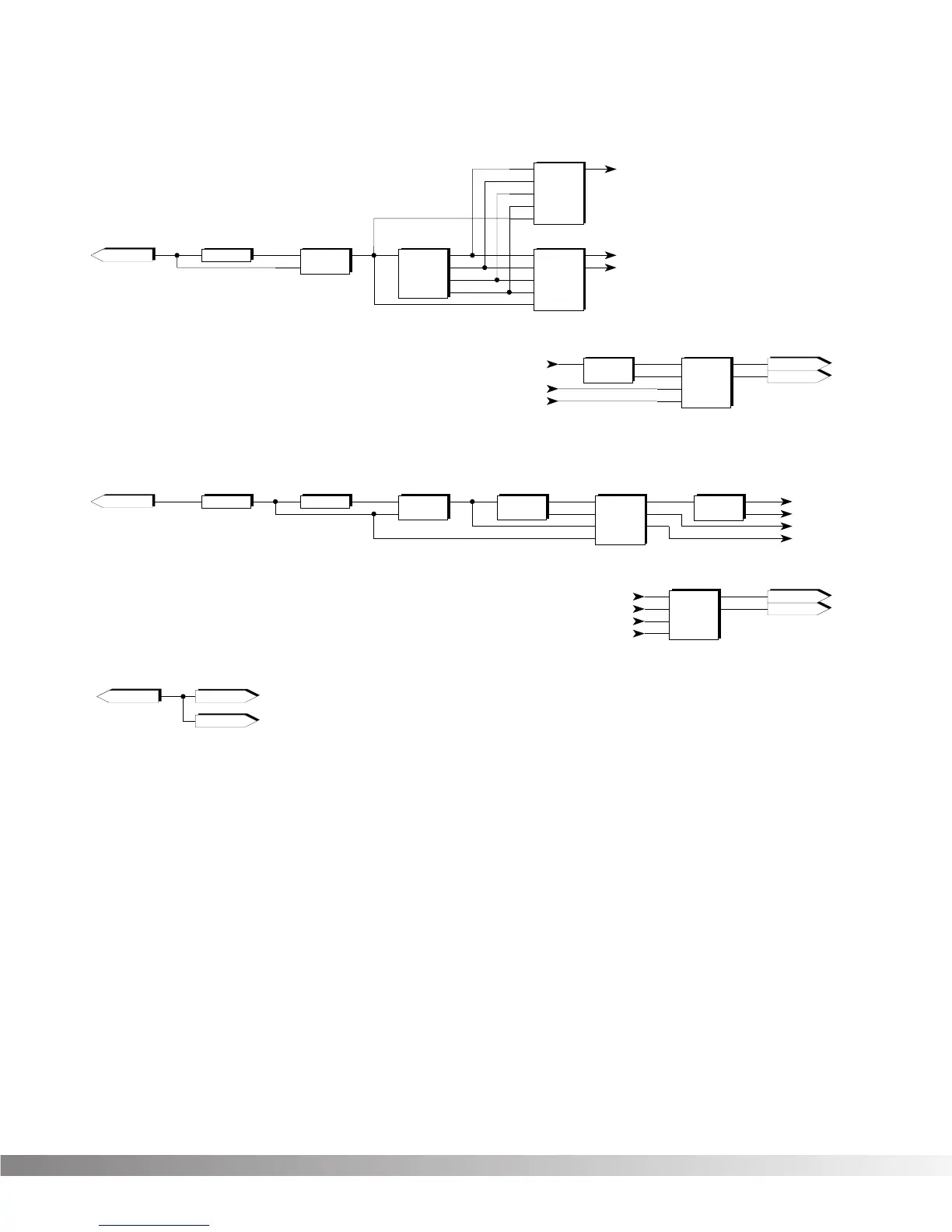

Algorithm #32
Pitch -> 4TDly -> Pan
RIGHT MAIN
LEFT MAIN
4 x 2
Stereo 4 x 2 Mixer
Out 1
Inp 1
Inp 2
Out 2
Out L
Out R
In 1
In 2
Inp 3
In 3
Inp 4
In 4
Inp 1
Out 1
Pan
Auto Panner
Out 2
2 x 1
Mono 2 x 1 Mixer
Out 1
Inp 1
Inp 2
Pch
Mono Pitch Shift
Inp 1
Out 1
LEFT INPUT
Algorithm #34
No Digital
RIGHT MAIN
LEFT MAIN
4TDly
4-Tap Delay 1.4
Inp 1
Out 3
Out 4
Out 2
Out 1
Tap 2
Tap 3
Tap 1
Tap 4
5 x 2
Stereo 5 x 2 Mixer
Out 1
Inp 1
Inp 2
Out 2
Inp 3
Inp 4
Inp 5
In 1
In 2
In 3
In 4
In 5
Out L
Out R
5 x 1
Mono 5 x 1 Mixer
Out 1
Inp 1
Inp 2
Inp 3
Inp 5
Inp 4
Inp 1
Out 1
TWah
Traditional Wah
Cho
Mono Chorus
Inp 1
Out 1
2 x 1
Mono 2 x 1 Mixer
Out 1
Inp 1
Inp 2
Inp 1
Out 1
2TDly8
2 Tap Delay .8
Out 2
Tap 1
Tap 2
4 x 3
4 x 3 Mixer
Inp 1
Inp 2
Inp 3
Inp 4
In 1
In 2
In 3
In 4
Out 1
Out 2
Out 1
Out 2
Out 3
4 x 2
4 x 2 Mixer
Inp 1
Inp 2
Inp 3
Inp 4
In 1
In 2
In 3
In 4
Out 1
Out 2
Out 1
Out 2
RIGHT MAIN
LEFT MAIN
Out 2
MVRB
MFX Reverb
Inp 1
Out 1
LEFT INPUT
Algorithm #33
Wah>Cho>Dly>Rvb
Section 6 - Appendix
Valve FX Owner’s Manual

DigiTech VALVEFX Specifications
