SYSTEM 3000 to 3505 CONVERSION MANUAL
DIGITIZE, INC. 700254-0001 REV B 02/04
Specifications Subject to Change Without Notice
2-5

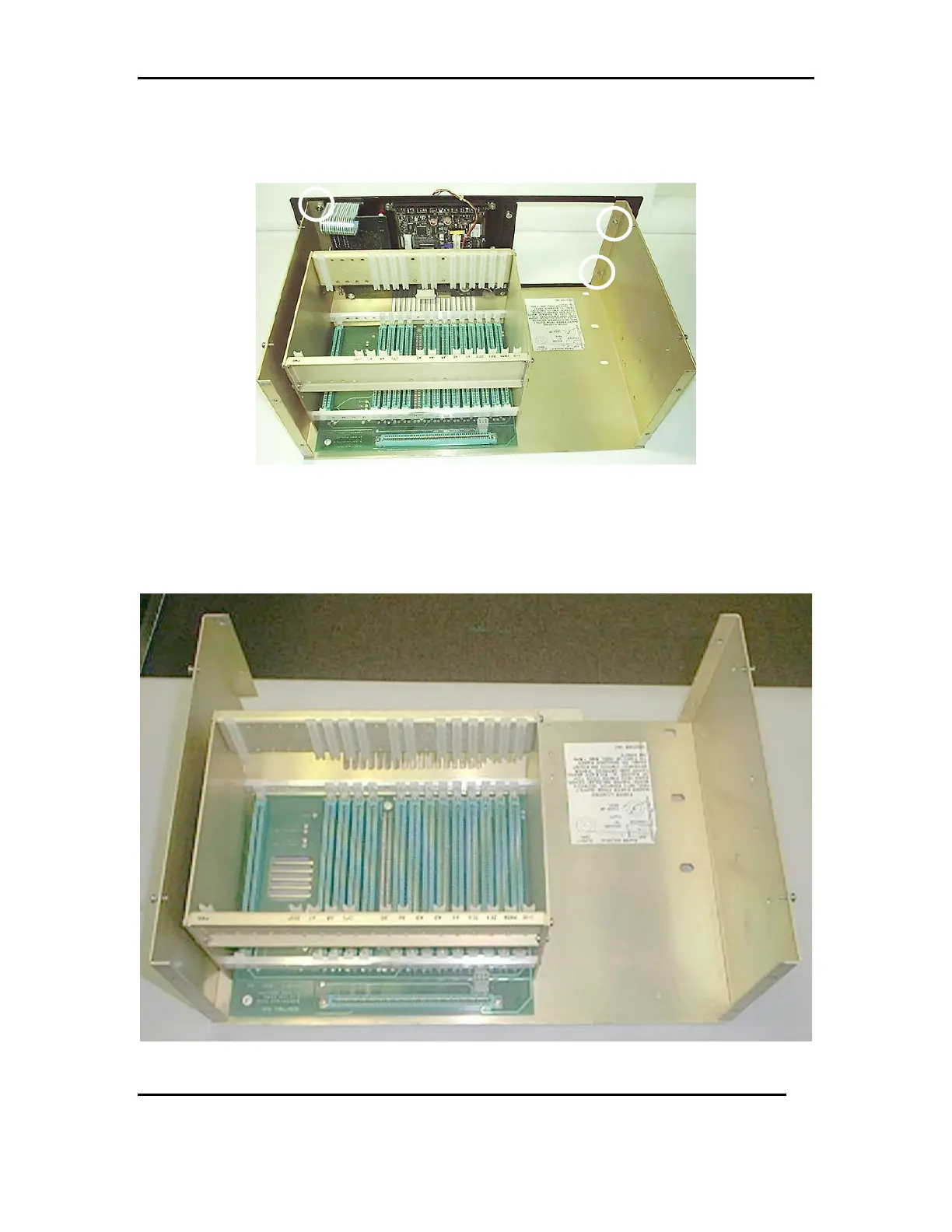

2.10 Then remove the 3 hex nuts located on the inside. Refer to FIG 10b. Save hex nuts
for re-assembly. Remove front panel assembly.
FIG 10b
2.11 The SYSTEM is now ready to be rebuilt. Refer to FIG 10c
FIG 10c
