SYSTEM 3000 to 3505 CONVERSION MANUAL
DIGITIZE, INC. 700254-0001 REV B 02/04
Specifications Subject to Change Without Notice
A-2

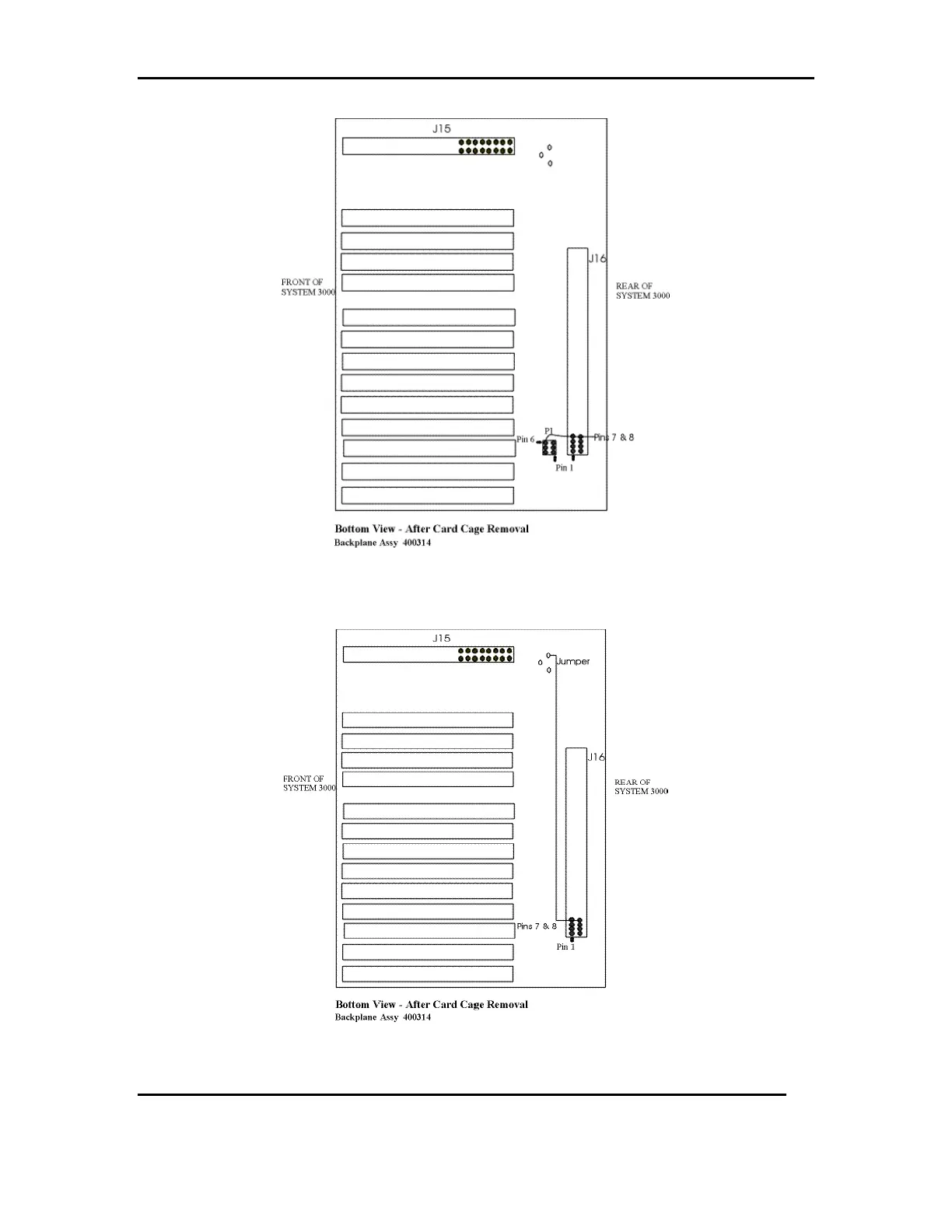

Figure 2A – Backplane Assembly (P/N 400314) with Jumper from
P1 Pin 6 to J16 Pins 7&8
Figure 2A – Backplane Assembly (P/N 400314) with Jumper through
Feed Through to J16 Pins 7 & 8
