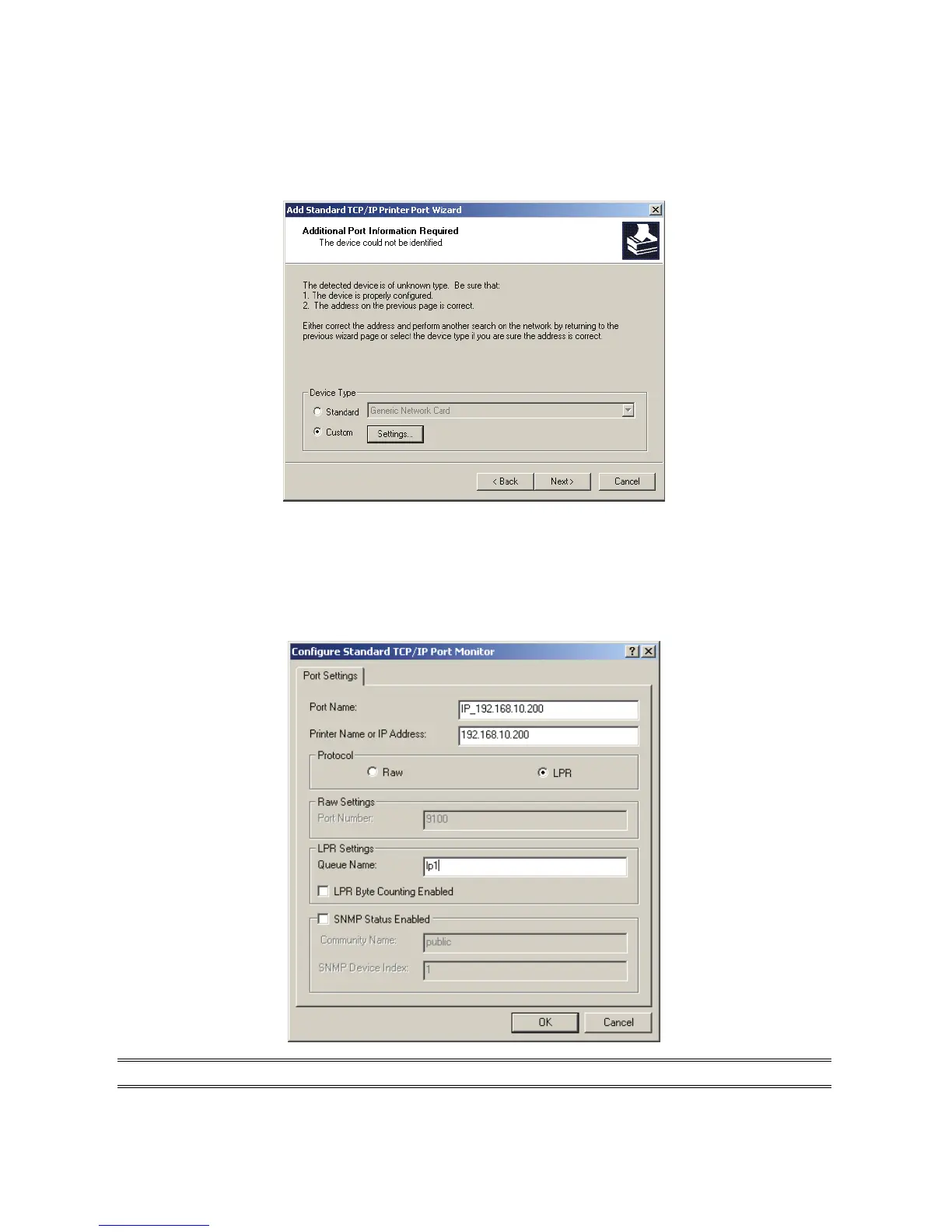

6. In the Add Standard TCP/IP Printer Port Wizard box as shown in the following picture,
Select Custom, Click Settings button, and click Next.
7. In the Configure Standard TCP/IP Port Monitor box as shown in the following picture,
select LPR form Protocol, type in a queue name, e.g. lp1 for port-1, lp2 for port-2 and lp3
for port-3 of print server.
8. Click OK, and Next.
Note: Please DO NOT type any other name than lp1, lp2 and lp3 in this step.

Digitus DN-13006-1 Specifications

General

Networking standards	IEEE 802.3, IEEE 802.3u
Ethernet LAN data rates	10, 100 Mbit/s
Network connection type	Ethernet LAN
Web-based management	Yes
Supported network protocols	TCP/IP
USB connector type	USB Type-A
Serial ports quantity	0
USB 2.0 ports quantity	2
Ethernet LAN (RJ-45) ports	1
Internal	No
Product color	White
Country of origin	Taiwan
AC input voltage	230 V
AC input frequency	50 Hz
Package type	Box
