8. Installation Guide

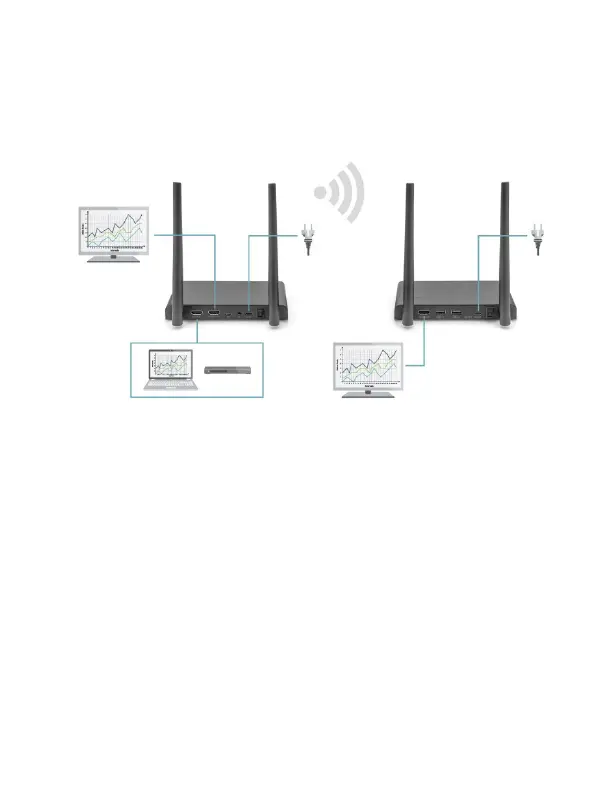

8.1 Connecting the transmitter
The transmitter sends the video signal wirelessly to the receiver in
another room. Therefore, place the transmitter near your HDMI
source
1. Connect the power adapter to the connector marked "5V" and
insert the plug into the wall socket.
2. Use an HDMI cable to connect the HDMI source to the HDMI
port marked “HDMI IN” on the TX (transmitter).
3. Optional: To continue watching TV in this room as well, use an
HDMI cable (not supplied) to connect a TV to the HDMI® port
marked "HDMI® OUT".
