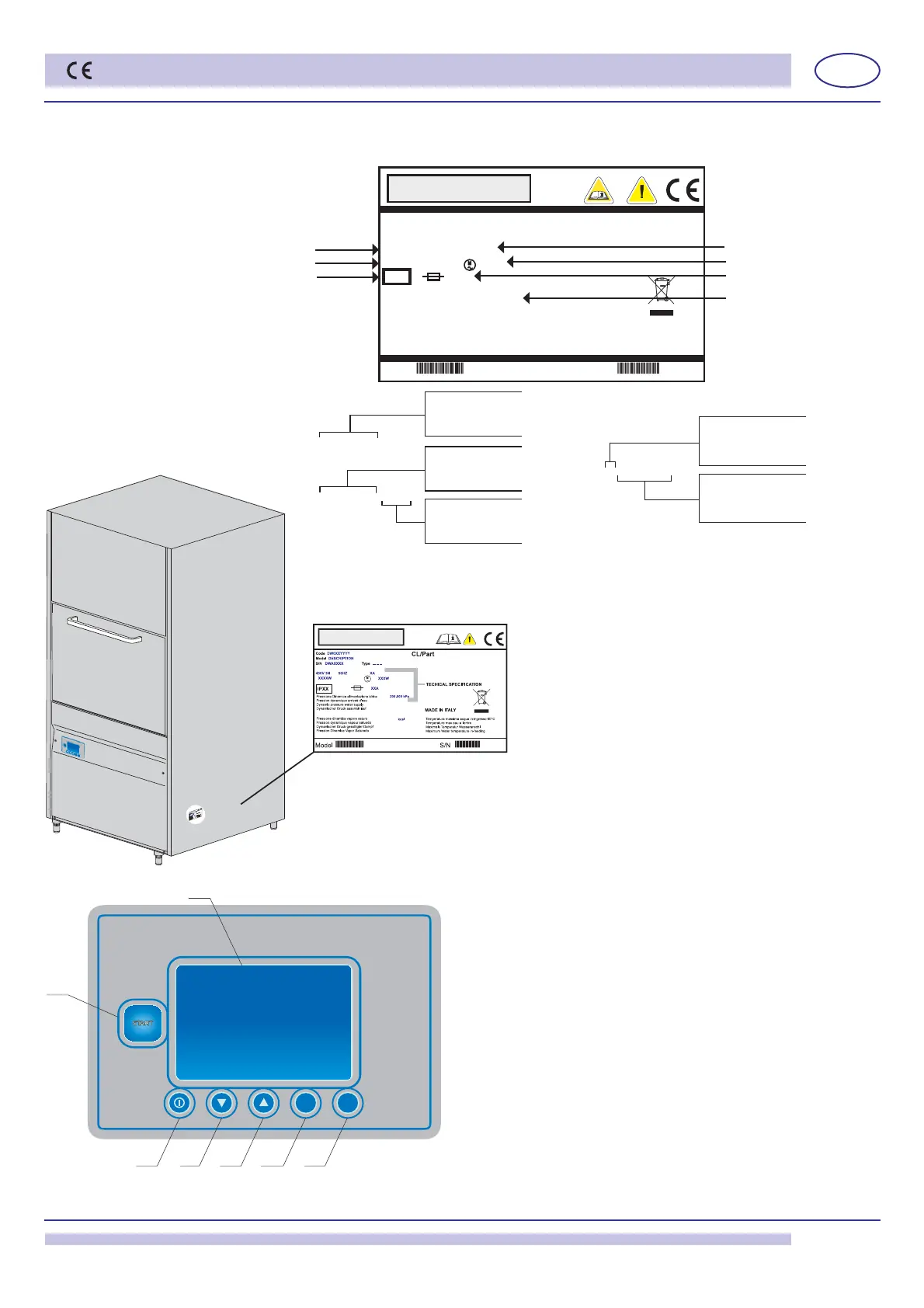

DIHR LP3 S Plus - Control Panel and Relative Symbols

EN
page 25
S/N DW X xxxxxxx
ANNO
YEAR
ANNÉE
AN“O
JAHR
NUMERO DI SERIE
SERIAL NUMBER
NUMÉRO DI SÉRIE
NUMERO DI SERIE
SERIENNUMMER
E=2010 - 2011
F=2011 - 2012
G=2013 - 2014
H=xxxx - xxxx
CODE DW XXXX
FAMIGLIA PRODOTTO
FAMILY PRODUCT
FAMILLE DU PRODUIT
FAMILIA PRODUCTO
FAMILIE DES PRODUKTES
CODE DW XXXX.YYYY
FAMIGLIA PRODOTTO
FAMILY PRODUCT
FAMILLE DU PRODUIT
FAMILIA PRODUCTO
FAMILIE DES PRODUKTES
CODICE MODELLO
CODE MODEL
CODE ARTICLE
CODIGO MODELO
KODE VON MODELL
Model S/N
Model DESCRIPTION
S/N DWXxxxxxxx Type ..........
60°C
200-500 kPa
kcal
16A
IPX3
MADE IN ITALY
ANNO PROD.: 2013
Temperatura massima acqua in ingresso
Temperature max eau a l'entre
Maximale Temperatur Wasseranschl
Maximum Water temperature in-feeding
Pressione Dinamica alimentazione idrica
Pression dynamique arriveè d'eau
Dynamic pressure water supply
Dynamischer Druck asserreinlauf
Pressione dinamica vapore saturo
Pression dynamique vapeur satueèè
Dymanischer Druck gesattigter Dampf
Pression Dinamica Vapor Saturado
Code DWXXXX.YYYY
CL/Part
3500W
500W
400V 3N 50HZ 8A
A
D
B
E
C
F
G
A Power supply
B Total power
C Protection rate
D Total absorption
E Pump power
F Electrical protection rate
G Dynamic Pressure
A
BCDEF
G
pict. 1
2. CONTROL PANEL AND RELATIVE SYMBOLS OPERATION
A: Cycle Start/Stop.
Multi-chromatic button:
Firm red light: machine fi lling/heating;
Flashing red light: alarm signal (check the code on the alarm
chart chap. 8);
Green light: machine ready. Select cycle;
Firm blue light: machine in operation;
Flashing blue light: machine in stand-by, anti-freeze function
(see chap. 3.6).
B: Machine power ON/OFF (in stand-by only).
C: Cycle Selection;
D: Cycle Selection;
E: Cut out;
F: Cut out;
G: LCD Display
