Dillenger KT-LCD3 - C13 ABS Brakes and Anti-Charge Control Setting

29

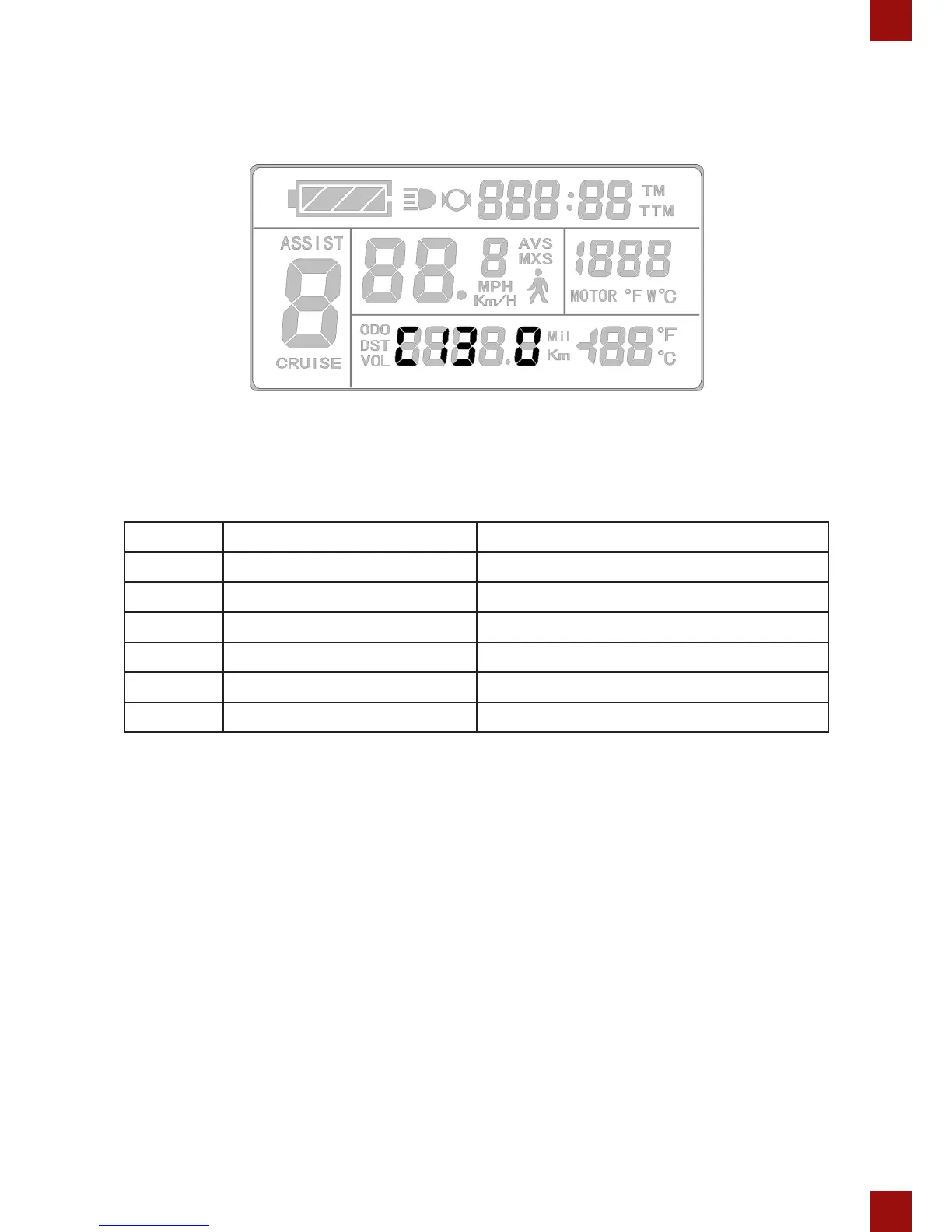

The C13 parameter setting will display on the meter after C12 settings. The KT-LCD3 will
display as follows:
C13 ABS Brakes and Anti-Charge Control Setting
C13 Display


C13 Value ABS Braking Strength Energy Recovery Eciency
0 None None
1 Class 1 Braking Strength Best energy recovery
2 Class 2 Braking Strength General energy recovery
3 Class 3 Braking Strength Weaker energy recovery
4 Class 4 Braking Strength Poor energy recovery
5 Class 5 Braking Strength Bad energy recovery
The recommended value for the C13 parameter is 1. Other options should be selected

Be sure to note: the higher the braking intensity level, the higher the braking strength will
be which results in greater damage to the motor shaft.
