Dillon AP User Manual

19
ITEM
NO. DESCRIPTION W-T P/N QTY
1 500 lb AP Pressure Bar Assembly 30005-0010 1
1,000 lb AP Pressure Bar Assembly 30005-0028 1
2,000 lb AP Pressure Bar Assembly 30005-0036 1
4,000 lb AP Pressure Bar Assembly 30005-0044 1
5,000 lb AP Pressure Bar Assembly 30005-0051 1
6,000 lb AP Pressure Bar Assembly 30005-0069 1
8,000 lb AP Pressure Bar Assembly 30005-0077 1
10,000 lb AP Pressure Bar Assembly 30005-0085 1
15,000 lb AP Pressure Bar Assembly 30005-0093 1
20,000 lb AP Pressure Bar Assembly 30005-0101 1
200 kg AP Pressure Bar Assembly 30005-0143 1
500 kg AP Pressure Bar Assembly 30005-0135 1
1,000 kg AP Pressure Bar Assembly 30005-0150 1
2,000 kg AP Pressure Bar Assembly 30005-0127 1
4,000 kg AP Pressure Bar Assembly 30005-0168 1
5,000 kg AP Pressure Bar Assembly 30005-0176 1
10,000 kg AP Pressure Bar Assembly 30005-0119 1
2 Cap Screw, ¼” x 1” L (sst) 26367-5639 2
3 Pan HD Screw, #6-32 x ¼” L 26380-0021 3
4 Cap Screw, ¼” x 3/4” L (sst) 26368-0068 4
5 Shackle Pin 30039-0010 2
6 Needle Bearings (used with items 7 & 10 only) 30385-00104 4
7 Shackle (standard size) 30038-0011 2
8 Hex Nut 14507-0140 2
9 Cotter Pin, (5/32” x 1 ¼” L) 14448-0209 2
10 Over Size Shackle, 15,000 lb or less (Optional) 29286-00462 2
11 Dillon Label 45150-0011 1
12 Cotter Pin, (¼” x 1 ½” L) 14448-0324 2
13 Flat Washer 33636-0029 4
14 Shackle Pin 30363-0024 2
15 Retaining Ring 15931-0028 2
16 Inner Race 26386-0025 4
17 Needle Bearing 26385-0166 4
18 Over Size Shackle, 20,000 lb (Optional) 29286-0020 2
19 Housing (plastic) 46835-0012 1
20 Flat Washer, ¼” 26431-0509 6
21 Max Hand Crystal Assy
(incl: reset knob,
crystal, max hand, spring, clip, etc.) 30030-0027 1
Max Hand Assy (w/o crystal) 30032-0017 1
22 Bezel (plastic) 30011-0020 1
23 Spacer (top) 30018-0015 1
24 Rubber Gasket 30012-0011 1
25 Gauge Movement Assy 30040-0025 1
26 Zero Adjust Bracket Assy (w/ knob) 30019-0014 1
27 Dial Pointer (5”) 30246-0043 1
28 Spacer (0.0598” thk.) 30016-0017 AR
Spacer (0.006” thk.) 30014-0019 AR
Spacer (0.002” thk.) 30017-0016 AR
29 Instruction & serial no. Nameplate 30082-0016 1
30 Rivet 22382-0051 4
31 Dial Mounting Plate 47079-0015 1
32 Screw, #6 x .31”L 26371-0238 2
33 Screw, #6 x .19”L 15710-0215 2

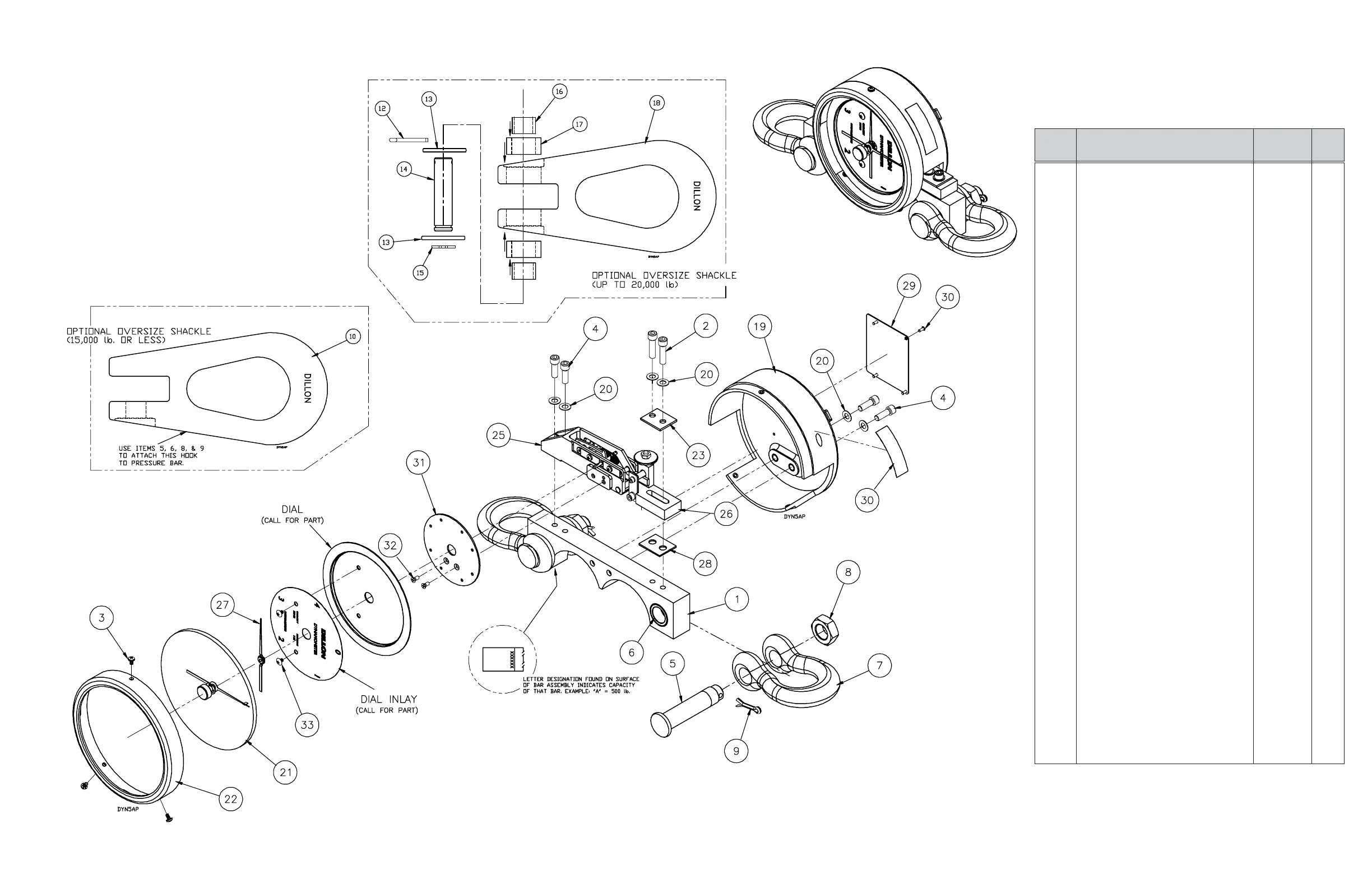

AP DYNAMOMETER W/ 5” DIAL
500 - 20,000 lb / 200 – 10,000 kg CAPACITY
PARTS and ASSEMBLY
