Dillon AP User Manual

22
ITEM
NO. DESCRIPTION W-T P/N QTY
1 50,000 kg AP Pressure Bar Assembly 30330-0024 1
100,000 lb AP Pressure Bar Assembly 30330-0016 1
2 Cap Screw, ¼” x 1” L 26367-5639 4
3 Pan HD Screw/Washer Assy, #6-32 x ¼” L 26380-0021 8
4 Cap Screw, ¼” x 3/4” L 26368-0068 4
5 Shackle Assy w/ Bearings 30326-0012 2
6 Rubber Gasket 30012-0029 1
7 Shackle 30038-0011 2
8 Lock Washer 14474-0198 6
9 Cover Plate (LH) 30314-0016 1
10 Cap Screw, #10 x 3/8”L 26367-5472 4
11 Lock Washer, #10 14474-0057 4
12 Cotter Pin, (¼” x 1 ½” L) 14448-0415 2
13 Flat Washer 30316-0014 4
14 Shackle Pin 30313-0017 2
15 Retaining Ring 15931-0069 2
16 “Top” label (identifies pin that must remain TOP) 33163-0012 1
17 Needle Bearing (heavy duty) 26388-0106 4
18 Inner Race (for item 17) 26389-0261 4
19 Cover Plate (RH) 30315-0015 1
20 Flat Washer, ¼” 26431-0509 8
21 Max Hand Crystal Assy (incl: reset knob, crystal,
max hand, spring, clip, etc.) 30093-0013 1
22 Bezel 30099-0017 1
23 Spacer 30018-0015 1
24 Cover, Top & Bottom 35030-0026 4
25 Cap Screw, ¼” x 1 ¼”L 26367-5647 2
26 Dial Housing Assy 30108-0016 1
27 Gage Movement Mtg Bracket 30323-0015 1
28 Zero Adjust Mtg Bracket 30318-0012 1
29 Cap Screw, ¼” x ½”L 26368-0043 4
30 Gauge Movement Assy 30184-0047 1
31 Zero Adjust Bracket Assy (w/ zero adjust screw) 35026-0014 1
32 Max Hand Assy (w/o crystal) 30096-0010 1
33 Wooden Storage Box for each shackle (not shown) 30329-0019 2
34 Wooden Box for Dynamometer (not shown) 30328-0010 1

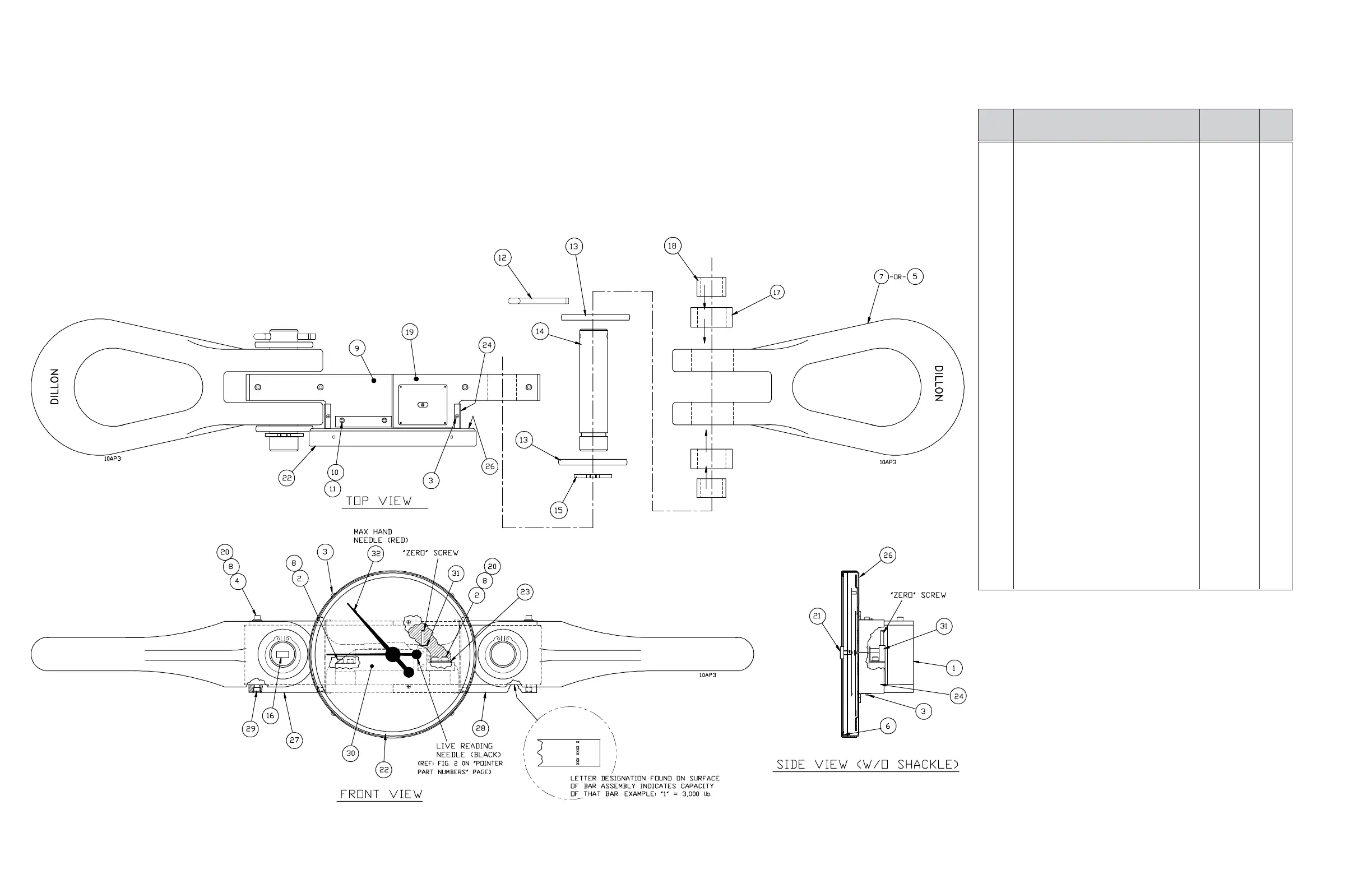

AP DYNAMOMETER W/ 10” DIAL
100,000 - 50,000 lb CAPACITY
PARTS and ASSEMBLY
