Dillon AP User Manual

21
ITEM
NO. DESCRIPTION W-T P/N QTY
1 30,000 lb AP Pressure Bar Assembly 30364-0015 1
40,000 lb AP Pressure Bar Assembly 30364-0023 1
50,000 lb AP Pressure Bar Assembly 30364-0031 1
15,000 kg AP Pressure Bar Assembly 30364-0049 1
20,000 kg AP Pressure Bar Assembly 30364-0056 1
2 Cap Screw, ¼” x 1” L 26367-5639 2
3 Pan HD Screw/Washer Assy, #6-32 x ¼” L 26380-0021 8
4 Cap Screw, ¼” x 3/4” L 26368-0068 4
5 Shackle Assy w/ Bearings 30371-0016 2
6 Rubber Gasket 30012-0029 1
7 Shackle 30038-0011 2
8 Lock Washer 14474-0198 6
9 Cover Plate (LH) 30176-0013 1
10 Cap Screw, #10 x 3/8”L 26367-5472 4
11 Lock Washer, #10 14474-0057 4
12 Cotter Pin, (¼” x 1 ½” L) 14448-0324 2
13 Flat Washer 30366-0013 4
14 Shackle Pin 30363-0016 2
15 Retaining Ring 15931-0028 2
16 Inner Race 26389-0105 4
17 Needle Bearing (heavy duty) 26388-0015 4
19 Cover Plate (RH) 30175-0014 1
20 Flat Washer, ¼” 26431-0509 6
21 Max Hand Crystal Assy (incl: reset knob, crystal,
max hand, spring, clip, etc.) 30093-0013 1
22 Bezel 30099-0017 1
23 Spacer 30018-0015 1
24 Cover, Top & Bottom 35030-0018 4
25 Cap Screw, ¼” x 1 ¼”L 26367-5647 2
26 Dial Housing Assy 30368-0011 1
27 Gage Movement Mtg Bracket 30178-0011 1
28 Zero Adjust Mtg Bracket 30177-0012 1
29 Cap Screw, ¼” x ½”L 26368-0043 4
30 30K Gauge Movement Assy 30184-0013 1
40K Gauge Movement Assy 30184-0021 1
50K Guage Movement Assy 30184-0039 1
31 Zero Adjust Bracket Assy (w/ zero adjust screw) 35026-0014 1
32 Max Hand Assy (w/o crystal) 30096-0010 1

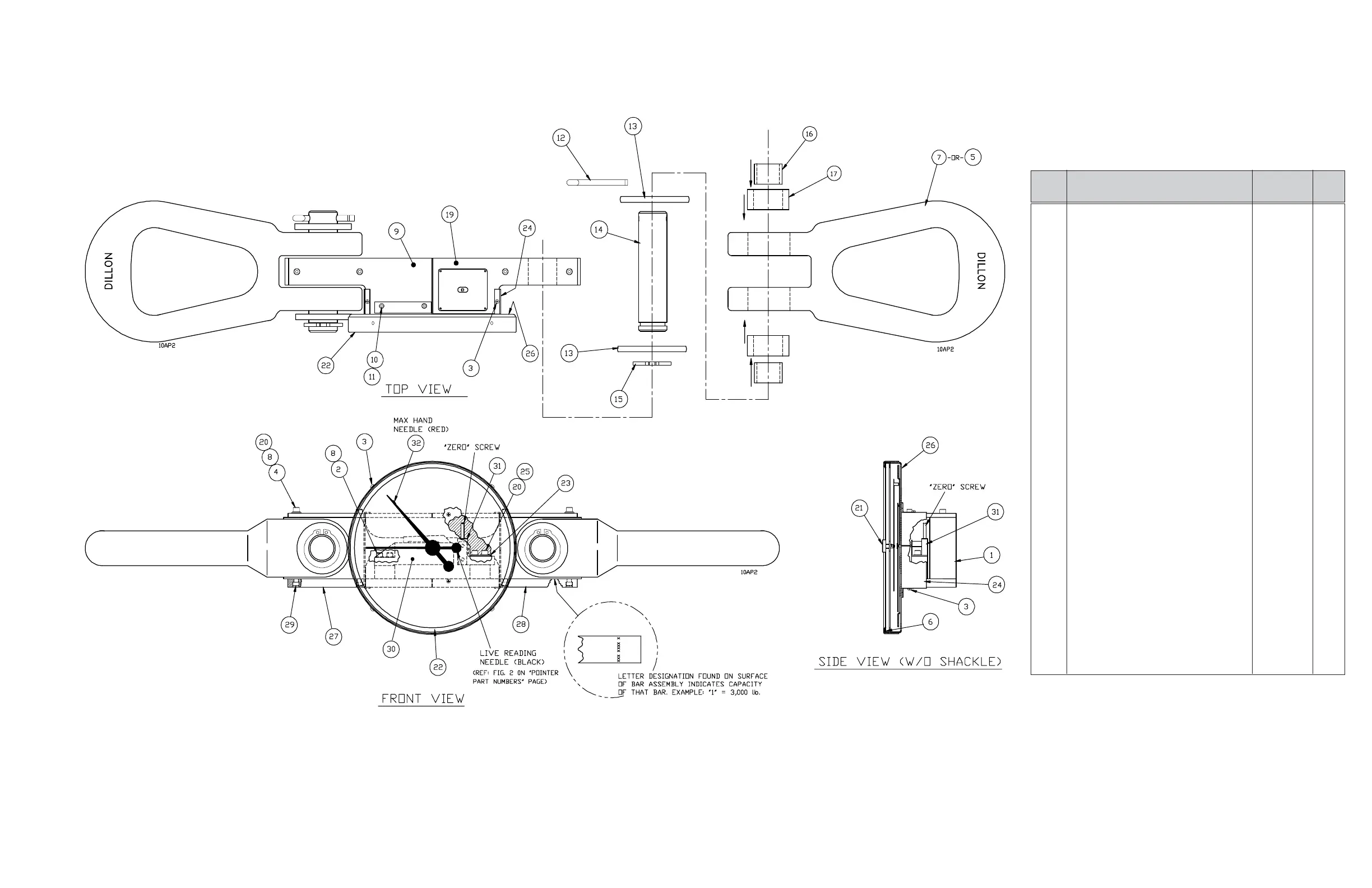

AP DYNAMOMETER W/ 10” DIAL
30,000 - 50,000 lb / 15,000 – 20,000 kg CAPACITY
PARTS and ASSEMBLY
