EDXtreme User Instructions 13
2.2.1 External Power Supply Connection (EDX 4-Pin)
Plug the 4-pin end of the power supply cable into the EDXtreme 4-pin connector
located on the back of the unit. Plug the power supply adapter into an AC power outlet.
Refer to Figure 2.4 for a photo of the external power supply.

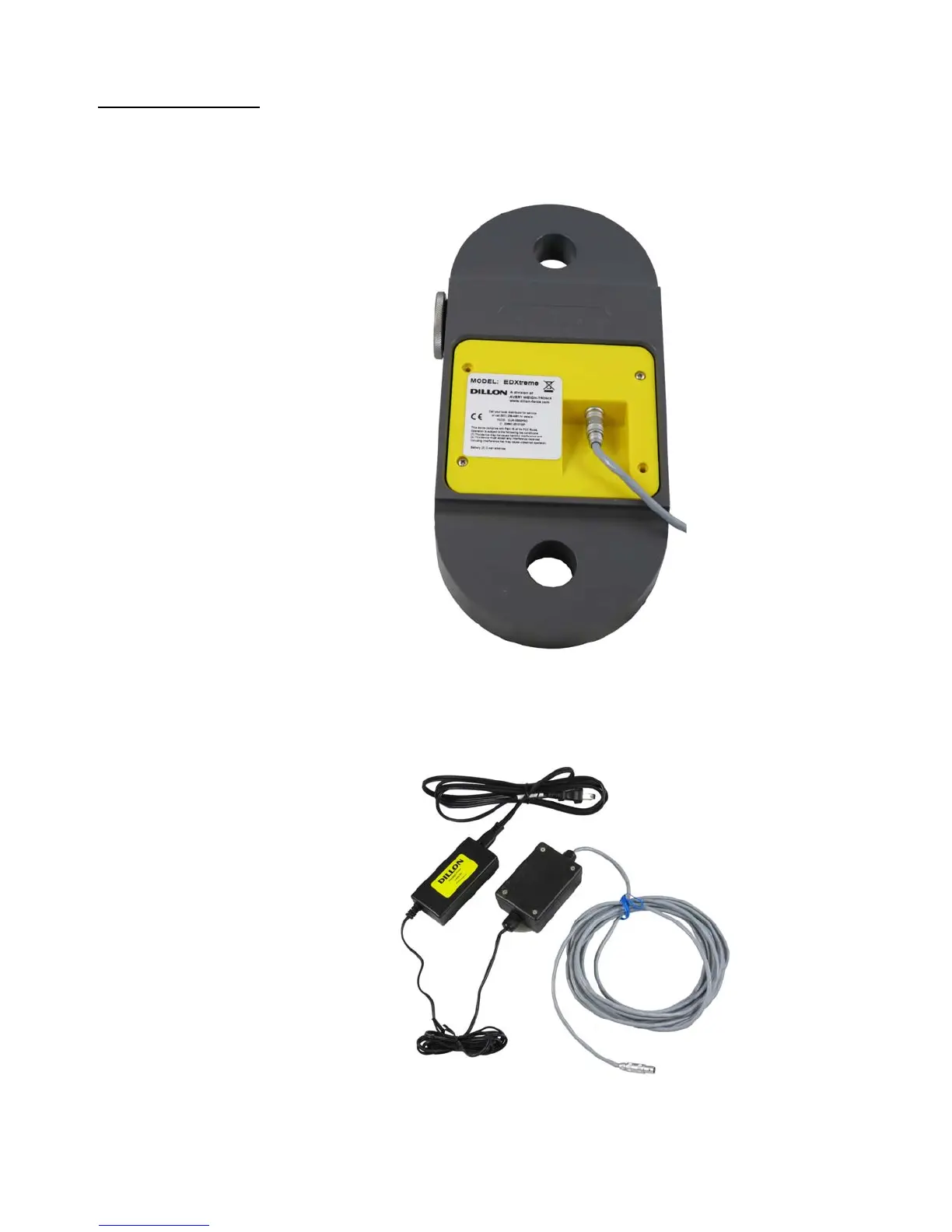

Figure 2.3 External Power Supply Connection (EDXtreme)
Figure 2.4 External Power Supply (EDX PSU)
