16 EDXtreme User Instructions
2.4 Communicator Connectors
The Communicator has 2 connectors. CELL is for wireline communications with an
EDXtreme. COM1 is for serial communications or an external power supply.

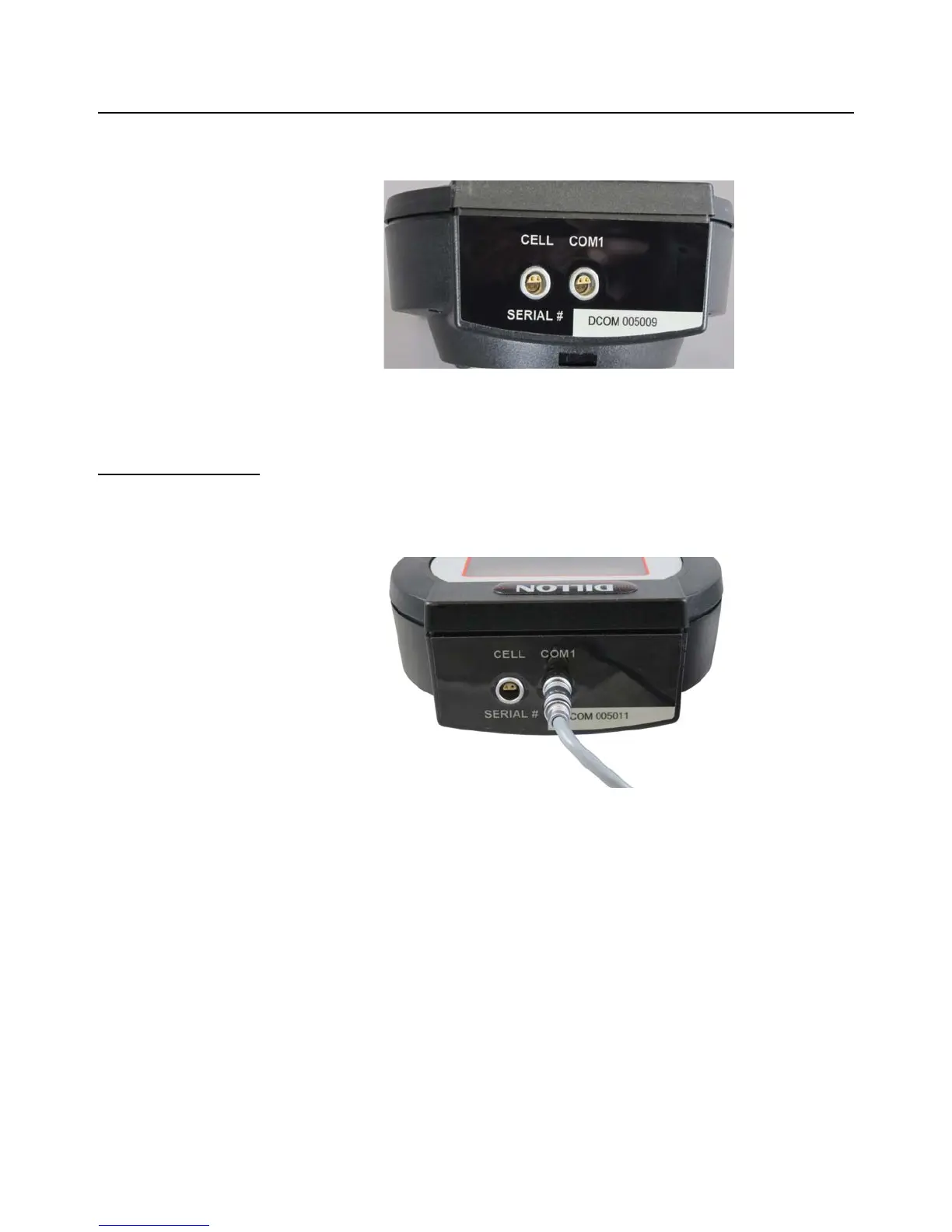

Figure 2.6 CELL and COM1 Connectors
2.4.1 External Power Supply Connection (Communicator 4-Pin)
Plug the 4-pin end of the power supply cable into the COM1 4-pin connector located
on the top of the unit. Plug the power supply adapter into an AC power outlet. Refer to
Figure 2.4 for a photo of the external power supply.
Figure 2.7 External Power Supply Connection (Communicator)
