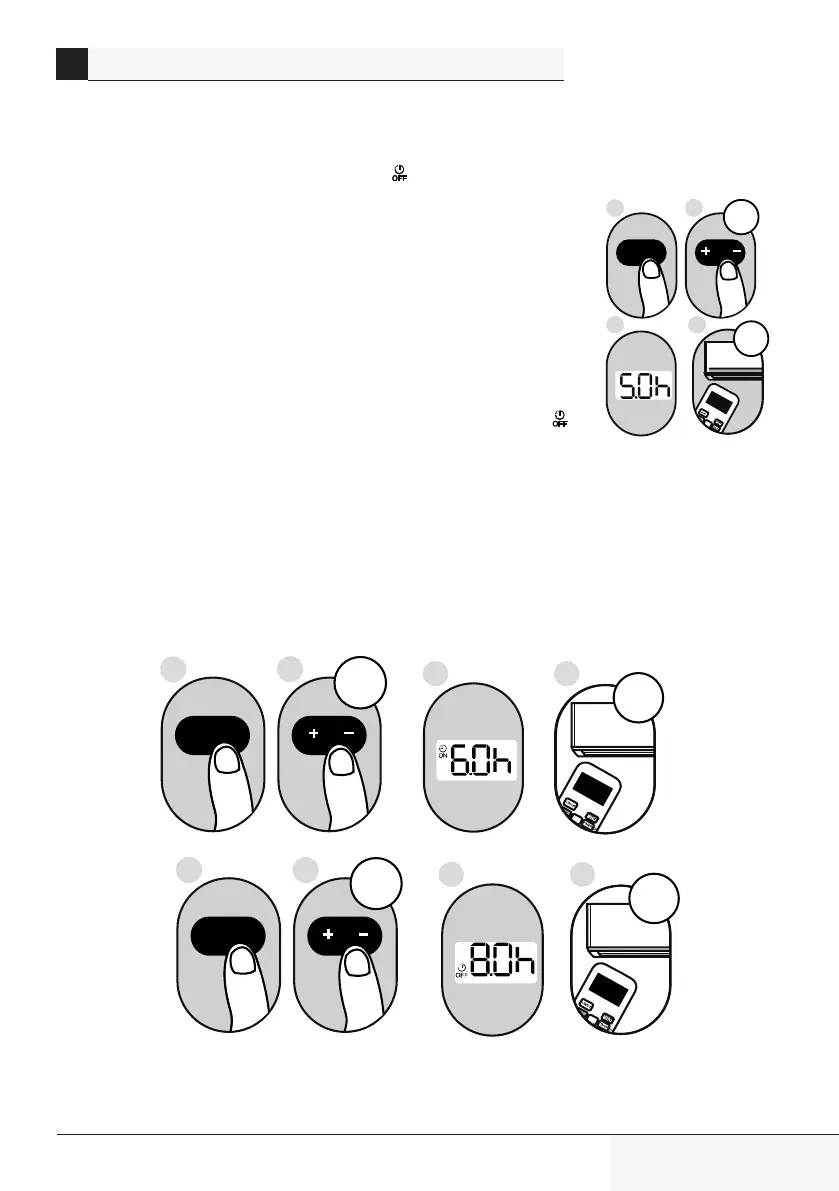

Timer OFF function
The TIMER OFF function allows you to set a period of time after which the unit will
automatically turn off, such as when you wake up.
1. Press the Timer button, the Timer off indicator " " displays and flashes. By
default, the last time period that you set and an "h" (indicating hours) will appear on
the display.
Note: This number indicates the amount of time after the current time that you want
the unit to turn off.
For example, if you set TIMER OFF for 5 hours, will appear on the screen, and the
unit will turn off after 5 hours.
2. Press the Temp + or Temp - button repeatedly to set the time when you want
the unit to turn off.
3. Wait 3 seconds, then the TIMER OFF function will be activated. The digital
display on your remote control will then return to the temperature display. The "
"
indicator remains on and this function is activated.
Note: When setting the TIMER ON or TIMER OFF functions, up to 10 hours, the
time will increase in 30 minute increments with each press. After 10 hours and up to
24, it will increase in 1 hour increments. The timer will revert to zero after 24 hours.
You can turn off either function by setting its timer to "0.0h".
x10
3sec
1
3
2
4
Time r
o r
Example: Setting unit to
turn off after 5 hours.
Setting both TIMER ON and TIMER OFF at the same time
Keep in mind that the time periods you set for both functions refer to hours after the current time. For example, say
that the current time is 1:00 PM, and you want the unit to turn on automatically at 7:00 PM. You want it to operate for
2 hours, then automatically turn off at 9:00 PM
3
3
sec
sec
4
8
3
7
X12
X16
2
6
1
5
T ime r
T ime r
o r
o r
Example: Setting the unit to turn on after 6 hours, operate for 2 hours, then turn off (see the figure below)
4
Splt-type room ar condtoner / User Manual
53 / 106 EN
REMOTE CONTROL OPERATION
