Dimplex BF8000ST - Fireplace Installation; New Wall Construction; Existing Fireplace

6

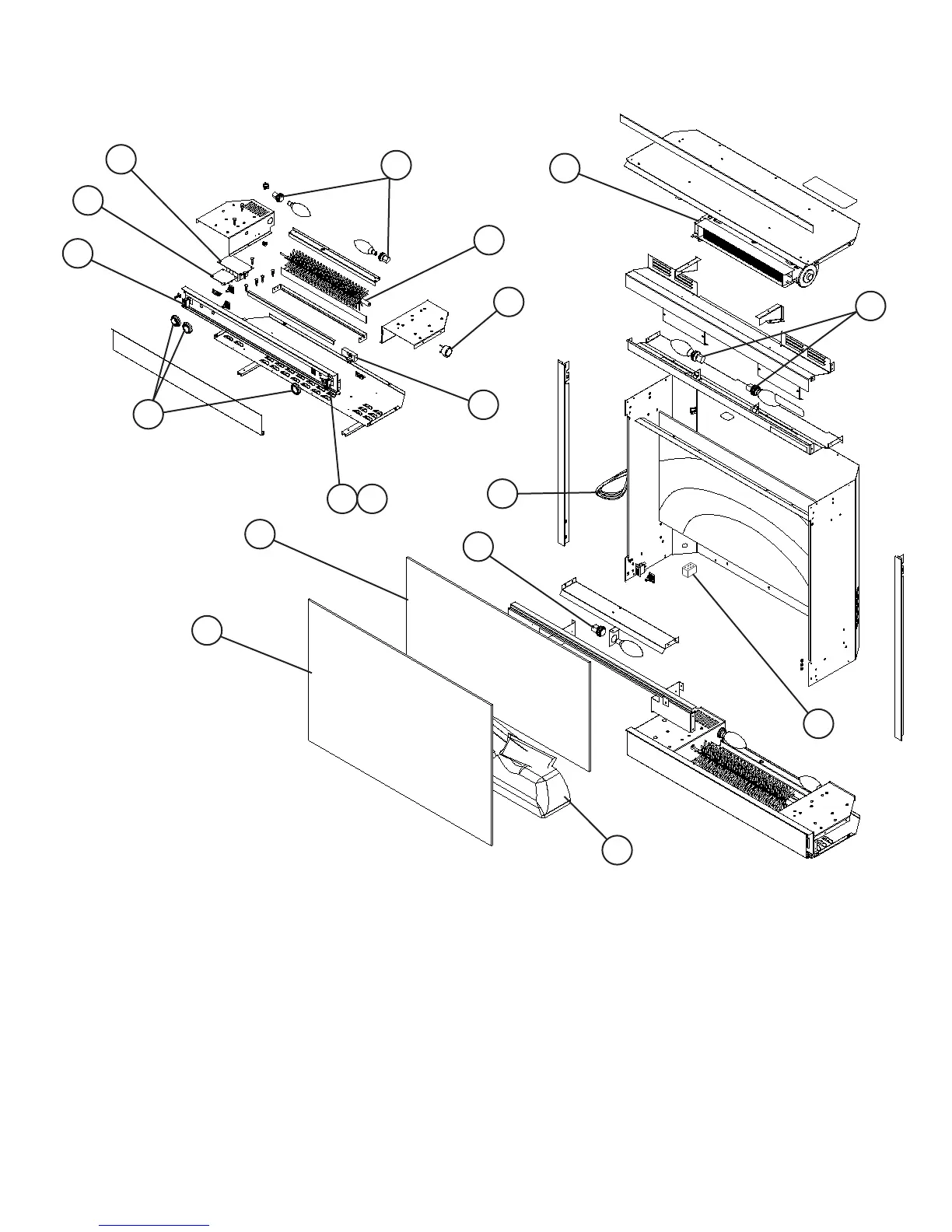

Exploded Parts Diagram
Replacement Parts List
Log set1. . . . . . . . . . . . . . . . . . . . . . . . . 0437960100RP
Flicker Motor 2. . . . . . . . . . . . . . . . . . . . 3000240200KIT
Heater Assembly (with cutout) 3. ......2000330100RP
Thermostat 4. .....................2300150100RP*
On/Off Switch, Heater On/Off 5. .......2800070700RP
3-Position Switch (Mod 0&A )6. .......8200070500RP
Flame Speed Control Board7. ........3000240500RP
Light Dimmer Control 8. .............3000250100RP
Remote Control Receiver (Mod 0&A)9. . 3000430800RP
Power Cord 10. . . . . . . . . . . . . . . . . . . . . 4100040200RP
Single Lamp holder 11. . . . . . . . . . . . . . . 2500150300RP
Double Lamp holder (2 in unit)12. . . . . . . 2500400300RP
Mirror (no brick)13. ..................5901210100RP
Front Glass 14. . . . . . . . . . . . . . . . . . . . . 5901220100RP
Control Knob (3 on unit)15. . . . . . . . . . . . 8800000200RP
Terminal Block 16. . . . . . . . . . . . . . . . . . . 4000070100RP
Flicker Rod 17. .....................5901250100RP
Remote Control18. ..................3000370600RP
Bottom Vent Panel (2008 Models)19. . . . 1018660159RP
Trim Replacement Kit20. . . . . . . . . . . . . . 9600260100RP
Re-Wire Kit21. . . . . . . . . . . . . . . . . . . . . . 9600390100RP
10
7
1
2
3
4
5
11
12
8
15
16
14
12
13
17
5 6
