8

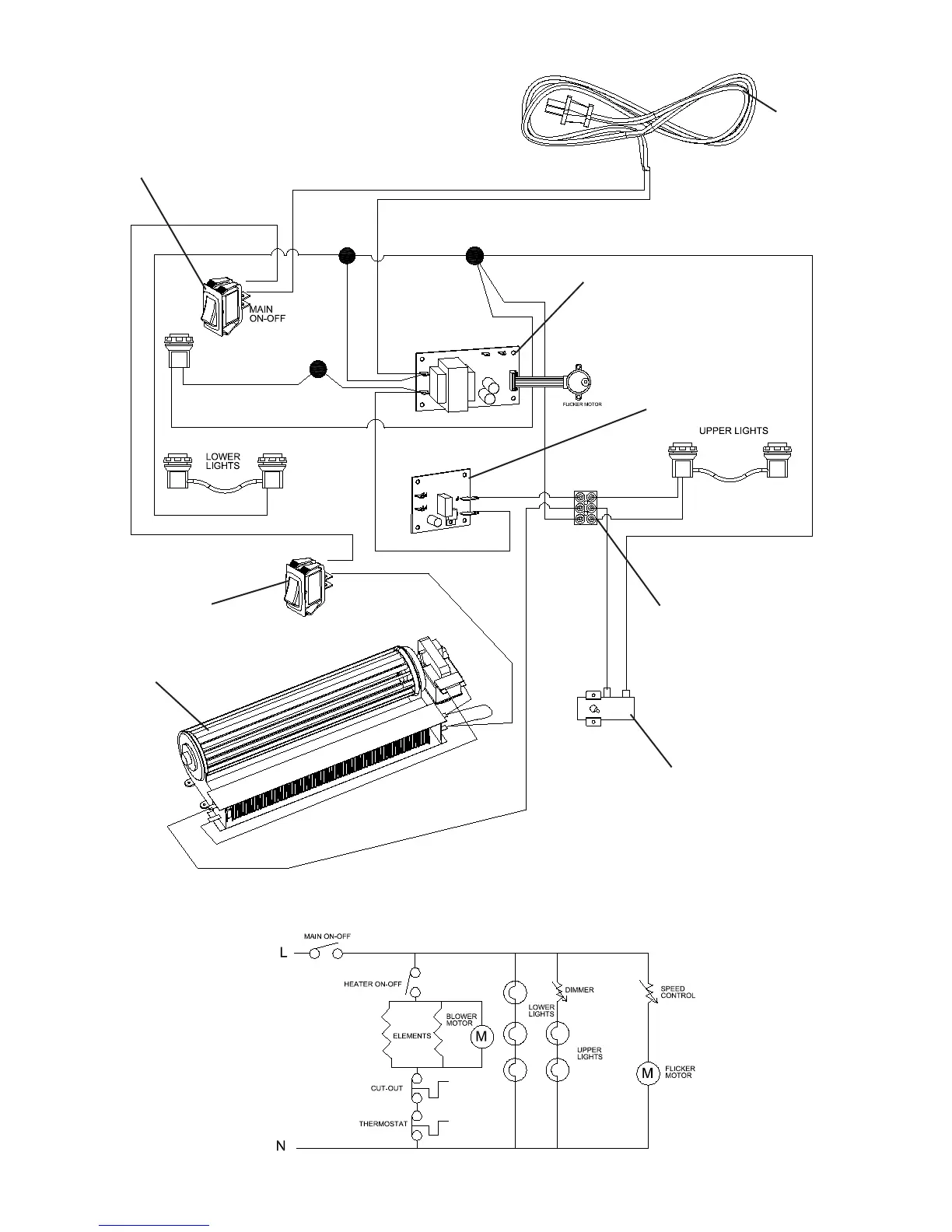

Wiring Diagram - No Remote
(MOD B-F Units)
Power Cord
Heater
Assembly
Thermostat
On/Off
Switch
Heater
On/Off Switch
Light Dimmer Control
Flame Speed Control
Terminal Block
