Dimplex CDFI1000-PRO - Cassette Plumbing

7
Installation
WARNING: Failure to install the
cassette as instructed below
may result in damage to the
equipment and or may expose
the user to the risk of re,
serious injury, illness or death.
WARNING: Do not attempt to
wire your own new outlets or
circuits. To reduce the risk of
re, electric shock or injury to
persons, always use a licensed
electrician.
WARNING: Ensure that the
On/Off switch is set to the OFF
position (refer to Operation
section) and that the circuit on
which the unit is to be installed
has the power cut off at the
service panel until installation is
complete.
!
NOTE: Please read all
instructions before installing.
Cassette Plumbing
The units come equipped with rell
containers for manual lling of the
reservoir. The unit can be hard
plumbed with the Dimplex
plumbing accessory kit -
CDFIPLUMB-KIT, available from
your local Dimplex dealer, or with
standard 1/4 in (6.4mm) tubing,
using the information outlined
below.
!
NOTE: The plumbing accessory
kit is designed for use with copper
piping.
CAUTION: Ensure that all
plumbing connections meet local
plumbing code requirements.
CAUTION: Ensure that the
location of the plumbing connection
allows for easy access to allow
for shutoff during scheduled
maintenance.
1. Locate a cold water line in the
vicinity of the desired location
of the cassette.
!
NOTE: Normal tap water can
be used in the Opti-myst
®
as long
as the tap water is not considered
to be hard water. In the event
your tap water is hard, softened or
ltered water is recommended.

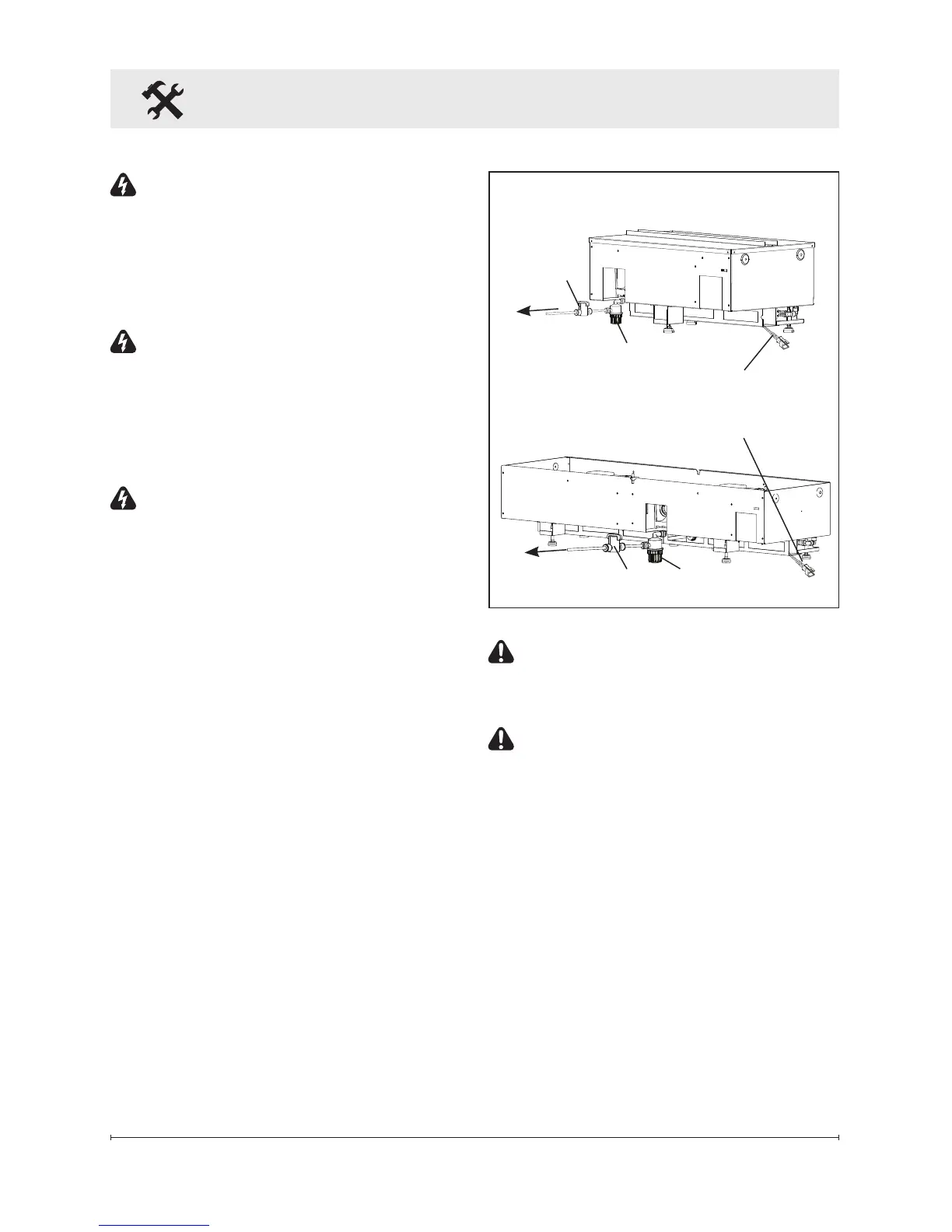

Figure 1
Ball
Valve
To water
source
Ball
Valve
To water
source
CDFI500-PRO
CDFI1000-PRO
Filter
Filter
2 pin wire for
connecting to
optional Heater
