Dimplex CDS6599 - Celeste - Parts and Diagrams; Exploded Parts Diagram; Replacement Parts List

5

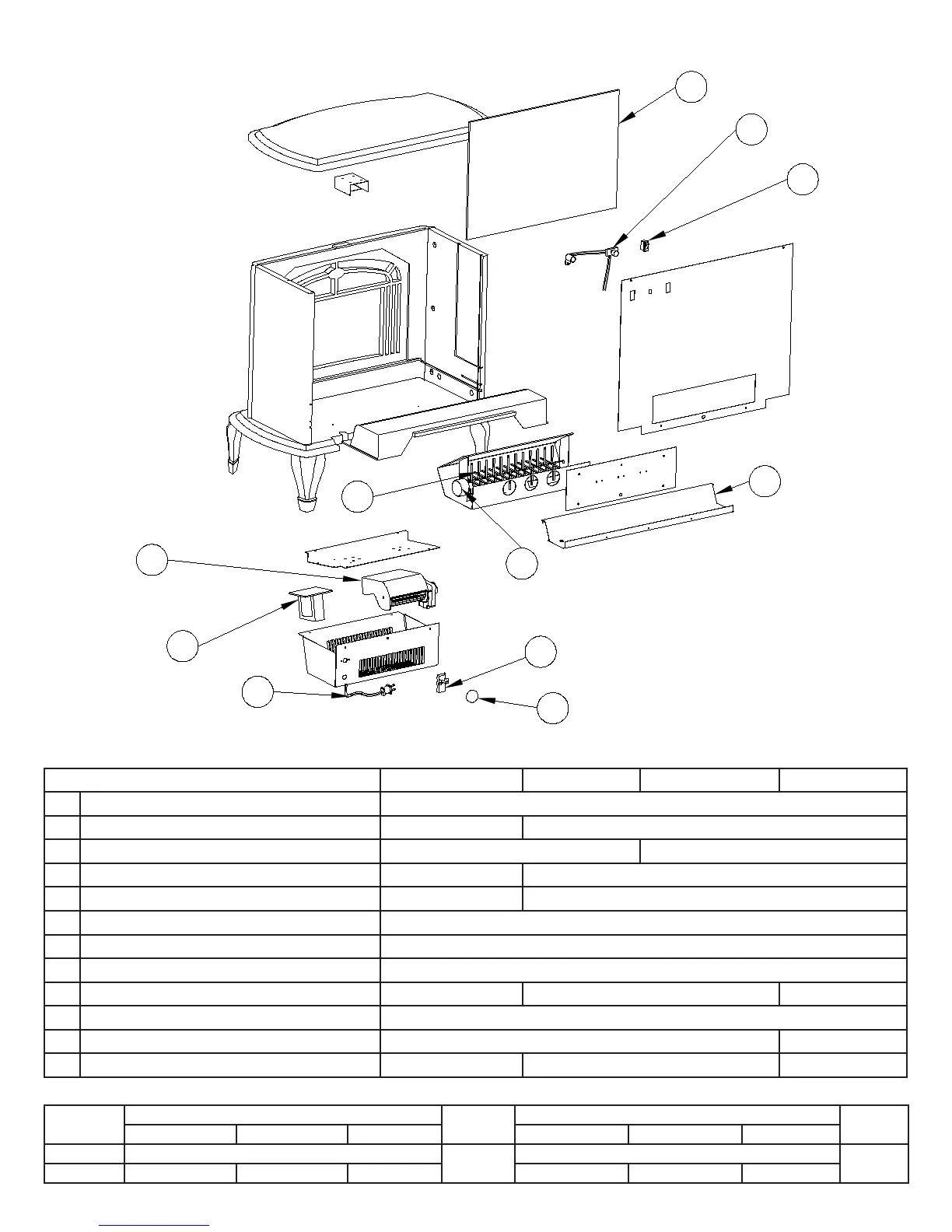

Exploded Parts Diagram
Replacement Parts List
MOD Level NONE & MOD. A MOD. B MOD. C MOD. D
1. On/Off Switch 2800070200RP
2. Heater Assembly 2000230100RP 6902430100RP
3. Log Set Not Available 0438200200RP
4. Partially Reective Glass 6900100600RP 5900060600RP
5. Flicker Rod 6900490100RP 5900080600RP
6. Flicker Motor 2000140300RP
7. Thermostat 2300150100RP
8. Thermostat Knob 8800000300RP
9. Transformer 2100170100RP 2100160100RP N/A
10. Cord Set 4100090104RP
11. Upper Light Harness with Light Dimmer 2500120100RP 2500290100RP
12. Lower Light Harness Not Available 2500110100RP 2500280100RP
Replacement Panels
Cream
Flat
Black
Gloss Black
Green
Left Side Right Side Top Left Side Right Side Top
CDS6599 Not Available Not
Available
Not Available Not
Available
TDS7599 1103270581RP 1103270681RP Not Available 1103270504RP 1103270604RP Not Available
11
4
12
5
9
2
8
7
1
6
10
