Dimplex PF3033 Service Manual

17
Log Set Junction Board Replacement
Mod 0-B
Tools Required: Phillips Head Screwdriver
Needle Nose Pliers
CAUTION: If unit was operating prior to servicing allow
at least 10 minutes for heating elements and top panel to
cool o󰀨 to avoid accidental burning of skin.
WARNING: Disconnect power before attempting any
maintenance to reduce the risk of electric shock or damage
to persons.
1. Unplug the unit from power outlet.
2. Remove the rebox from the front of the mantel and
remove front glass assembly (glass lifts o󰀨).
CAUTION: Even though the glass is safety glass it
may break if bumped, struck of dropped. Care must be
taken when handling the glass.
3. Remove the brick panels from either side of the unit,
they are attached using magnets.
4. Gently place the unit its back to expose the bottom
of the unit. Remove the 4 screws from bottom and 2
screw form either side that secure the log set.
5. Lift the log set out of the unit, being careful not to strain
the electronic cords.
6. Locate the electronics junction board and disconnect
the wiring connections noting their original locations.
(Figure 7)
7. Release the junction board from the bottom panel by
using needle nose pliers to depress the tab on the
mounting stando󰀨s and gently lift the driver board o󰀨.
8. Properly orient and install the new electronics junction
board and connect all of the wiring.
9. Reassemble in the reverse order as above.
Lower & Media LED Light Assembly
Replacement
Tools Required: Phillips Head Screwdriver
Needle Nose Pliers
CAUTION: If unit was operating prior to servicing allow
at least 10 minutes for heating elements and top panel to
cool o󰀨 to avoid accidental burning of skin.
WARNING: Disconnect power before attempting any
maintenance to reduce the risk of electric shock or damage
to persons.
1. Unplug the unit from power outlet.
2. Remove the rebox from the front of the mantel and
remove front glass assembly (glass lifts o󰀨).
CAUTION: Even though the glass is safety glass it
may break if bumped, struck of dropped. Care must be
taken when handling the glass.
3. Remove the brick panels from either side of the unit,
they are attached using magnets (if applicable).
4. Gently place the unit its back to expose the bottom
of the unit. Remove the 4 screws from bottom and 2
screw form either side that secure the log set.
5. Lift the log set out of the unit, being careful not to strain
the electronic cords.
6. Locate the lower light assembly and disconnect the
wiring connection from the electronics junction board
noting the original location. (Figure 7)
7. Release the light assembly from the bottom panel by
using needle nose pliers to depress the tab on the
mounting stando󰀨s and gently lift the light assembly o󰀨.
Properly orient and install the new light assembly and con-
nect all of the wiring.
8. Reassemble in the reverse order as above.

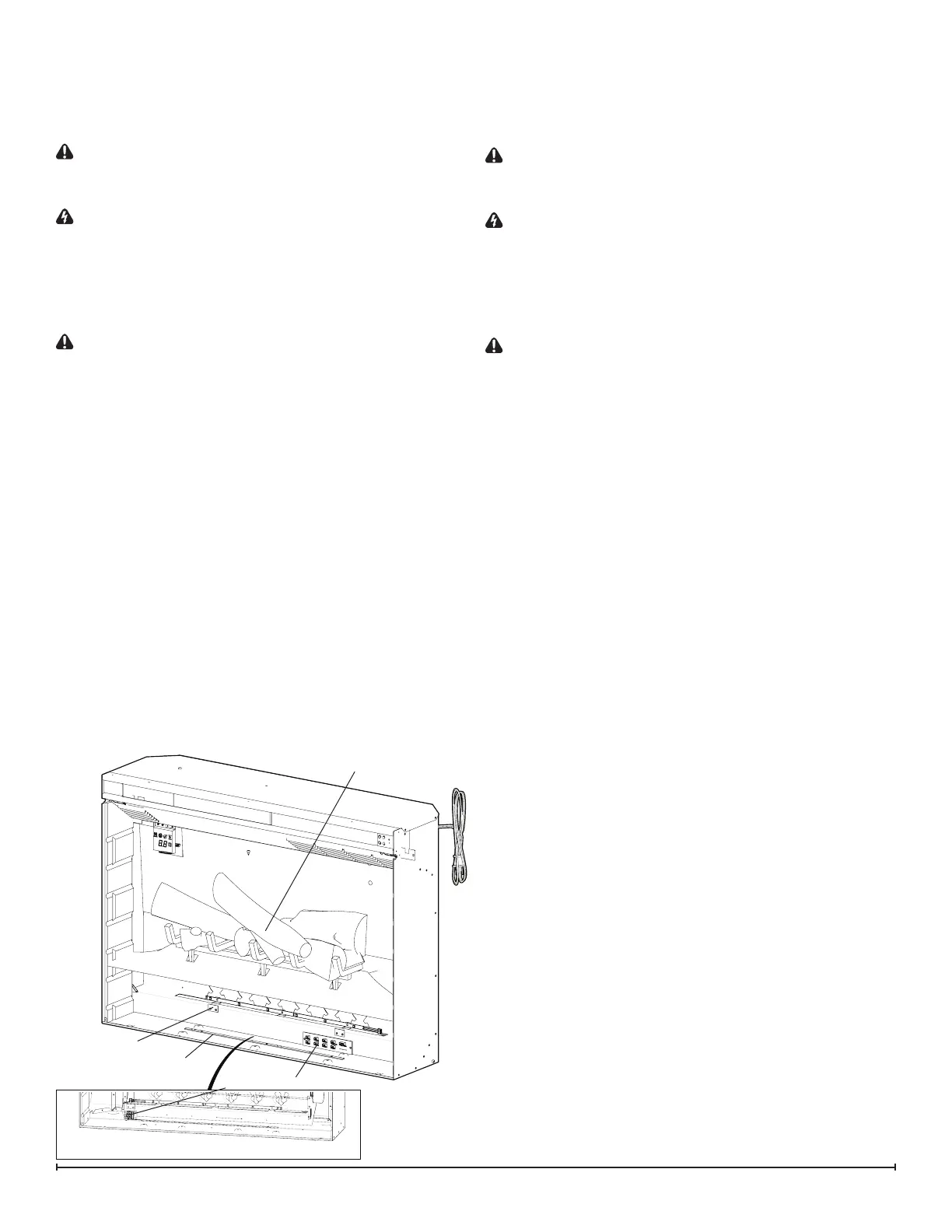

Figure 7
Log set
Log Set Junction Board
Lower Light
Assembly
Mirror Bracket
