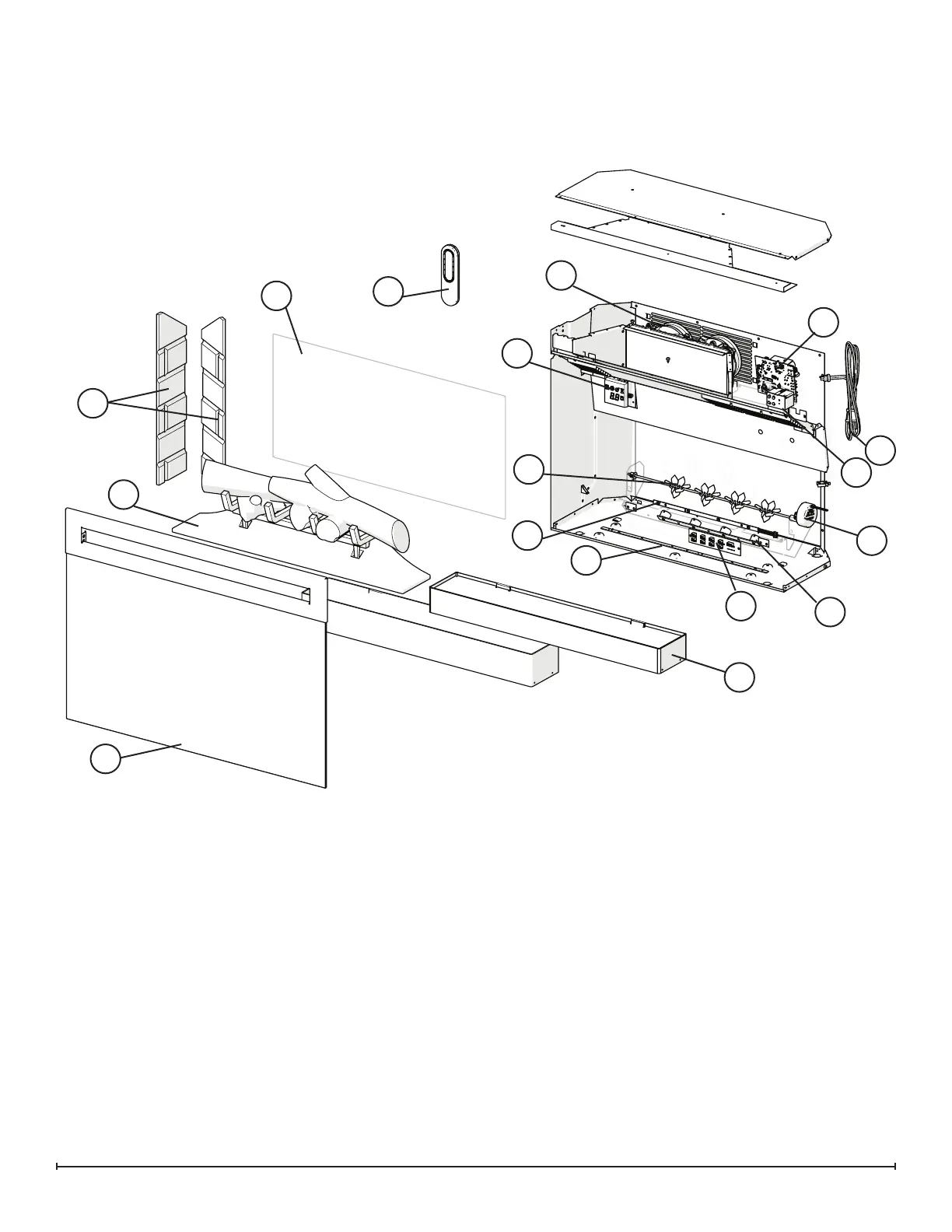

Exploded Parts Diagram - PF2325 Mod 0-A
Replacement Parts - PF2325 Mod 0-A:
1. Flicker Motor .......................... 2000480100RP
2. Heater Assembly (with cutouts) ...........2203650100RP*
*For MOD 0 units send Power Regulator Board as well
3. Cord Set ............................. 4100090204RP
4. Remote Control ....................... 3001250100RP
5. Main Control Board .................... 3001260100RP
6. gWave
TM
Assembly .................... 3001400100RP
7. Floating Display™ Assembly ............. 3001470100RP
8. Electronics Junction Board ............... 3001460100RP
9. Log set .............................. 0441690100RP
10. Media Tray - Flat ...................... 0441580100RP
Curved .................... 0441580300RP
11. Front Glass - Flat ...................... 1026770100RP
Curved ................... 1026770300RP
12. Partially Reective Glass ................ 5902750100RP
13. Brick Panel Set ........................ 0441600100RP
14. Flicker Assembly ...................... 5902830100RP
15. Lower Light Assembly .................. 3001310100RP
16. Media LED Light Assembly .............. 3001330300RP
17. Flame LED Light Assembly .............. 3001330100RP
18. Glass Media .......................... 1400070200RP
19. Acrylic (Ice) Media ..................... 1400130200RP
20. Power Regulator Board .............
PFRESISTORPCBRP
2
3
6
9
10
7
16
5
8
4
1
13
12
14
11
15
17
