Installation
Placement
1. The Dimplex Electric Fireplace does
not require any special venting.
Make sure there is clearance for air
circulation beneath the unit and at
least 1/2" behind it.
CAUTION: Do not install the replace
directly on carpet or similar surfaces
which may restrict air ow.

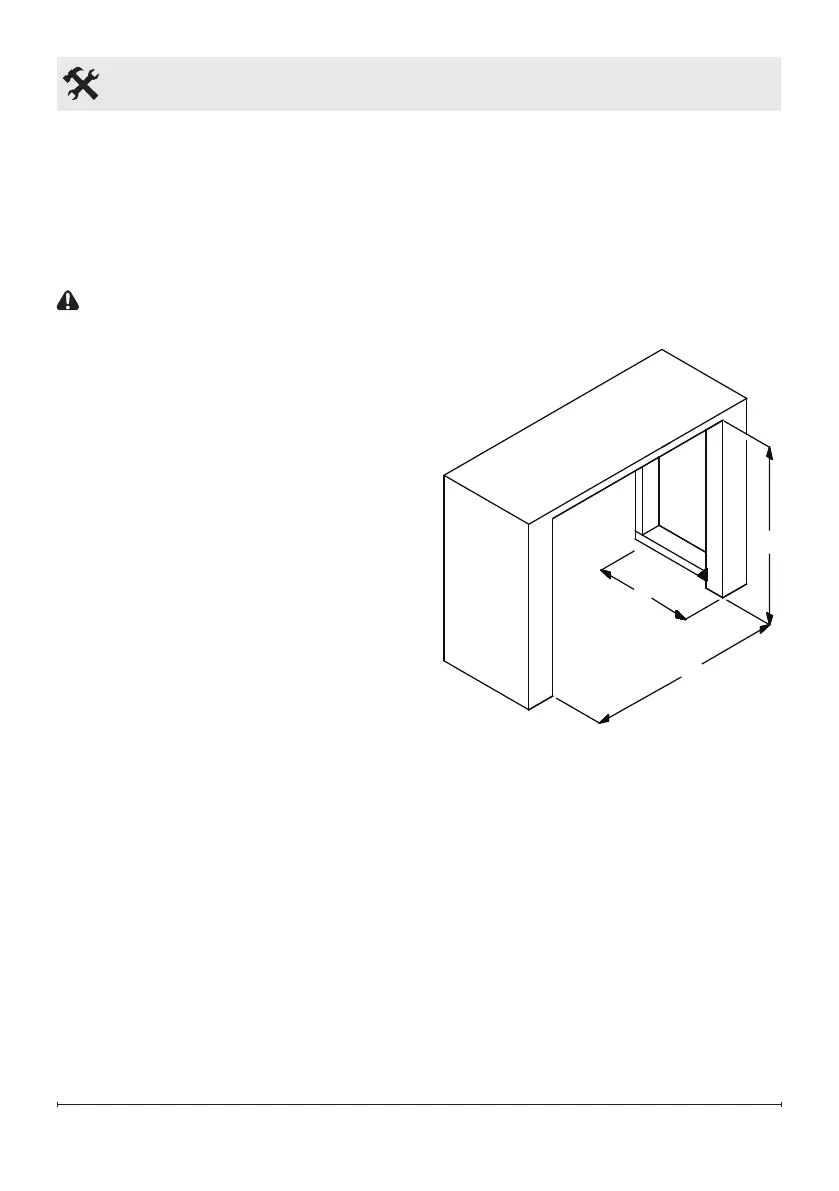

2. Install the unit in an opening with the
following minimum dimensions:
Model XHD33
A 31-5/8" (802 mm) wide
B 22-5/8" (575 mm) high
C 8" (203 mm) deep
Model XHD28
A 27" (686 mm) wide
B 23-1/8" (587 mm) high
C 8" (203 mm) deep
Model XHD26
A 24-3/8" (619 mm) wide
B 18-1/2" (470 mm) high
C 8" (203 mm) deep
Model XHD23
A 21-1/2" (548 mm) wide
B 20" (508 mm) high
C 8" (203 mm) deep
A
B
C
3. If installing the unit in an existing
fireplace opening, seal all drafts and
vents with a non-fibrous insulation
material to prevent any chimney
debris from falling onto the unit. Do
not install into an existing fireplace
opening that is prone to dampness.
