Fireplace Installation (continued)

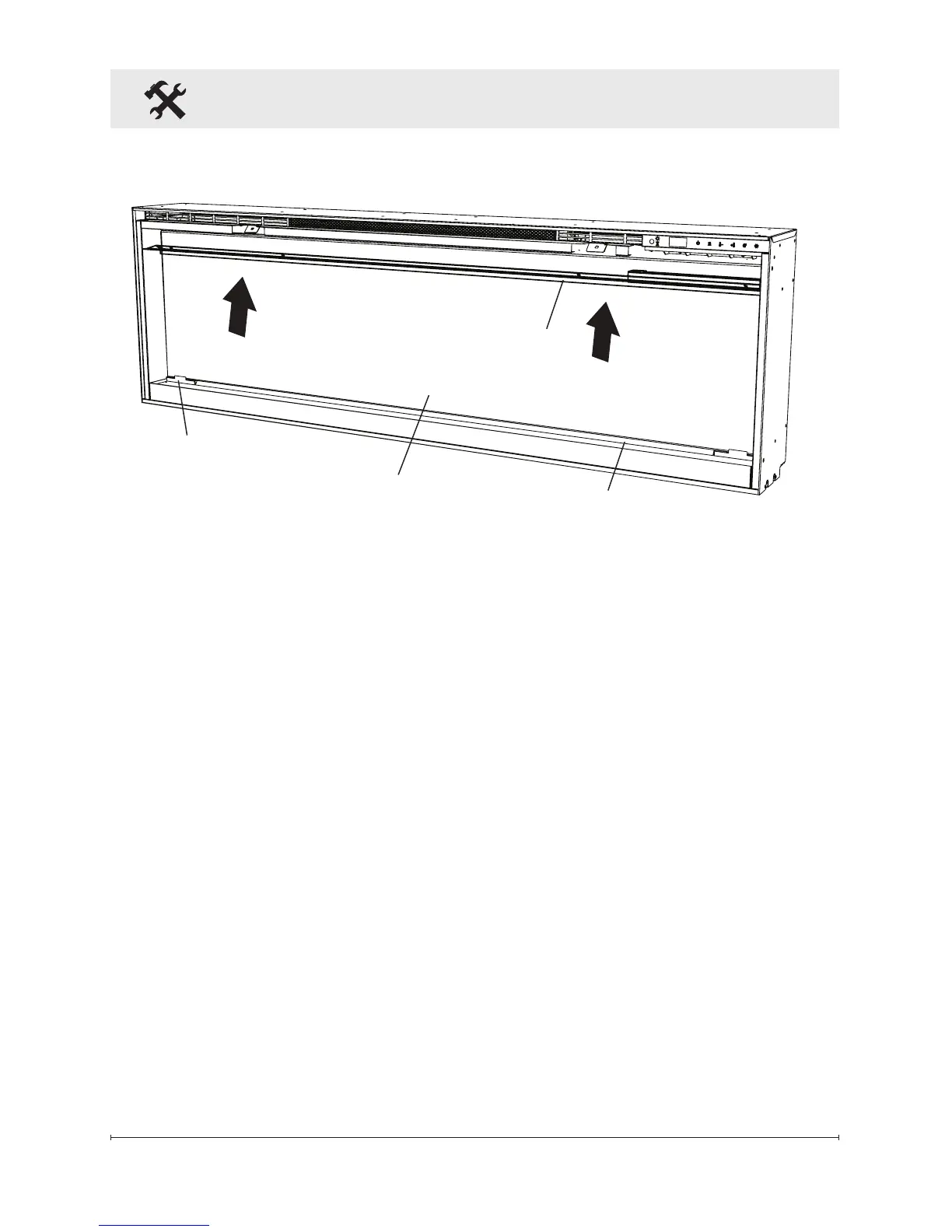

Figure 7

Partially

Reective Glass

Partially Reective

Glass Bracket

Media Tray

To wire through a wall switch:

1. Cut the wire to an appropriate

length.

2. Connect the L wire from the

unit to the live wire from the

main power through the

wall switch, ensuring all live

connections are connected with

a wire nut.

3. Connect the N wire from the

unit to the neutral wire from the

power supply with a wire nut.

Glass

Openings

4. Connect the G wire from the

unit to the ground wire from the

power supply with a wire nut

or attach the grounding wire

to the cover with the provided

grounding screw, by placing the

wire in-between screw and lock

washer and tighten (Figure 3).

5. Ensure that all wires are secure

and do not protrude past the

ame panel, so as not to be

visible after nal assembly.

6. Continue to the nal assembly

instructions.
