Fireplace Installation (continued)
120V Installation - Plug Kit
WARNING: This heater is
not intended for use with an
extension cord. Plug the cord
directly into an ap propriate
wall receptacle.
To install a plug kit:
1. Locate the rear cover plate
about 12 in. (30.5 cm) from the
left side at the bottom. Remove
the 3 screws that hold the plate
(Figure 8).
2. Feed wire from plug kit into
opening and attached using the
using the 3 screws.
3. Connect the L1 wire from the
unit to the black wire of the plug
kit.
4. Connect the N wire from the
replace to the white wire from
the plug kit.
5. Connect ground wire from the
replace to the green wire from
the plug kit.
6. Ensure that all wire connections
are tight and that wires are
secured and do not protrude
past the ame panel, so as
not to be visible after nal
installation.
7. Continue to nal installation.

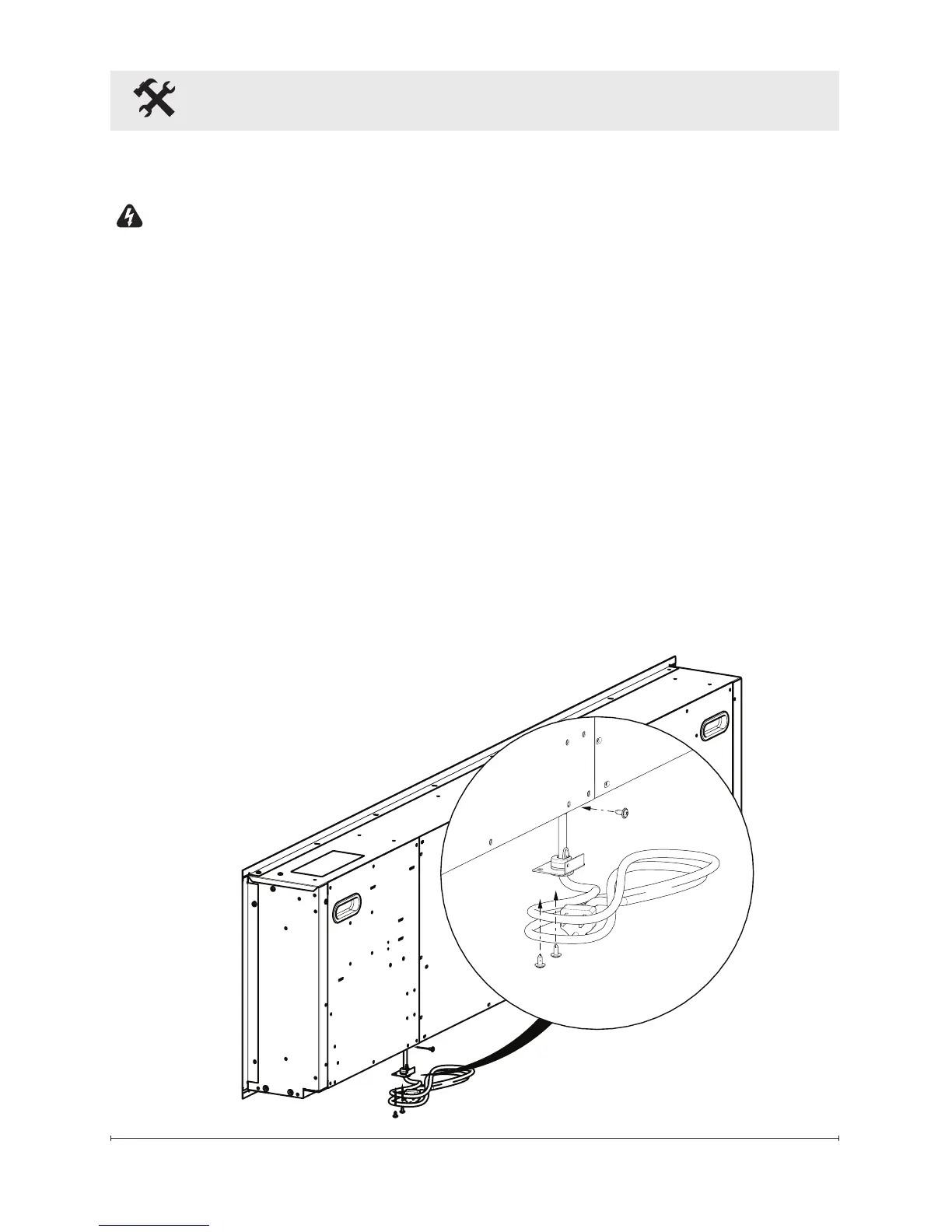

Figure 8
To Next Page
