dinotec access - Installation Schema; Packing List

13

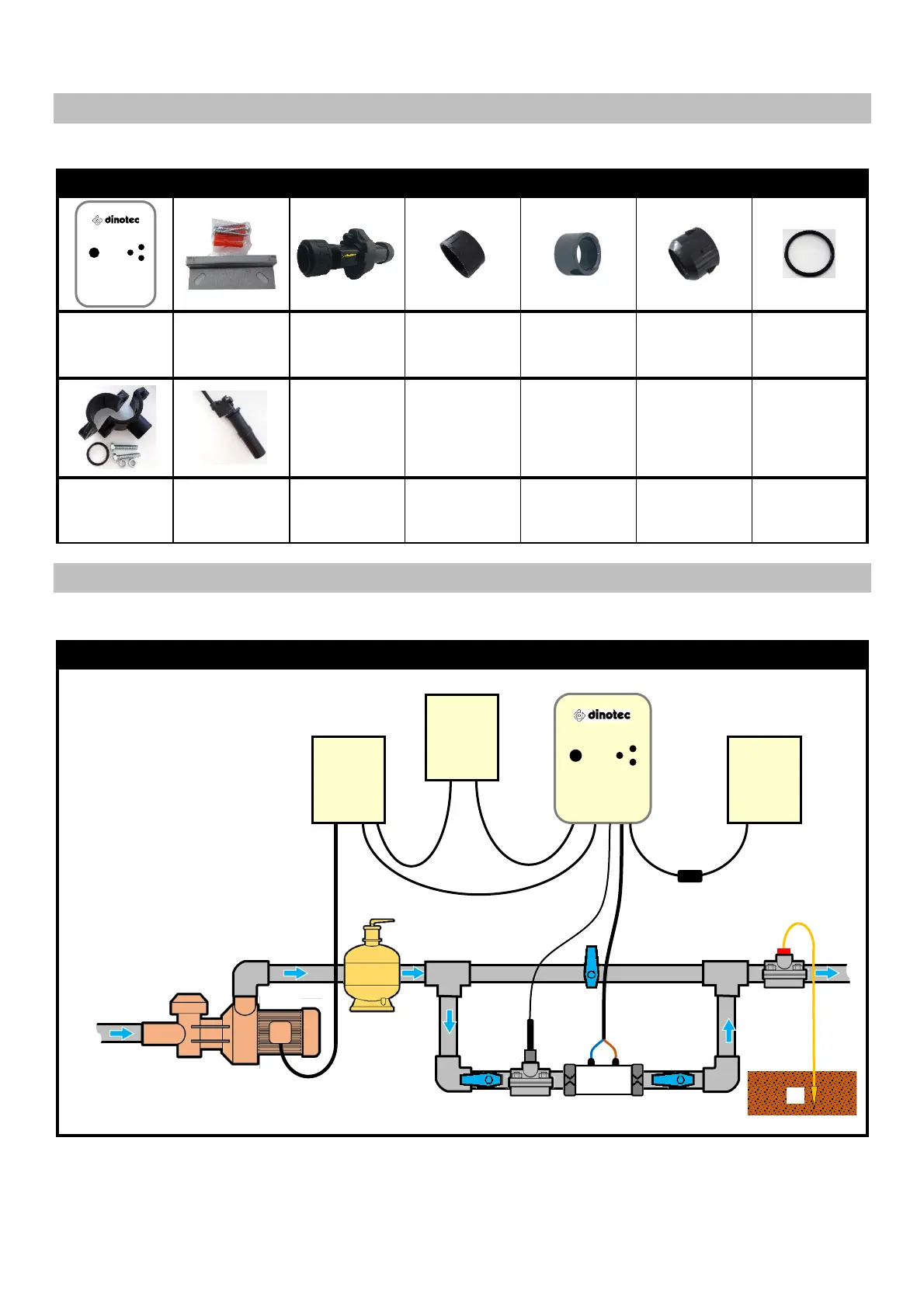

3. PACKING LIST
Non-contractual images
4. INSTALLATION SCHEMA
Access version
Access version
Electromechanical
box
x1
Fixing kit
x1
Online cell
x1
Nut
x2
63/50mm reducer
x2
Ball joint
x2
Seal
x2
Support Colar
x1
Flow controler
x1
1 : Power supply (not provided)
2 : Filtration box (not provided)
3 : Automatic cover box (not provided)
4 : Salt Chlorinator box
5 : Online cell
6 : Support collar
7 : Flow controller
8 : Support collar (not provided)
9 : Grounding anode (not provided)
10 : Ground stake (not provided)
11 : Filter (not provided)
12 : Filtration pump (not provided)
13 : Waterproof connector
14 : Valves (not provided)
9
H
2
5
12
H
1
9
10
H
3
4
13
6
7
8
