2) Connection of the control cable of the box:
I Connect the control cable of the box to the filtration to a free contact of the power contactor of the filtration pump in
the filtration box (Reminder: it is imperative to maintain a sufficient flow of water in the cell electrolysis when it is powered).
3) Connection of a position contact of the automatic cover:
I In case of a pool equipped with an automatic cover, connect the waterproof connector to a position contact of the
automatic cover. This contact must be closed when the cover is closed and open when it is open.
4) Connection of the cell:

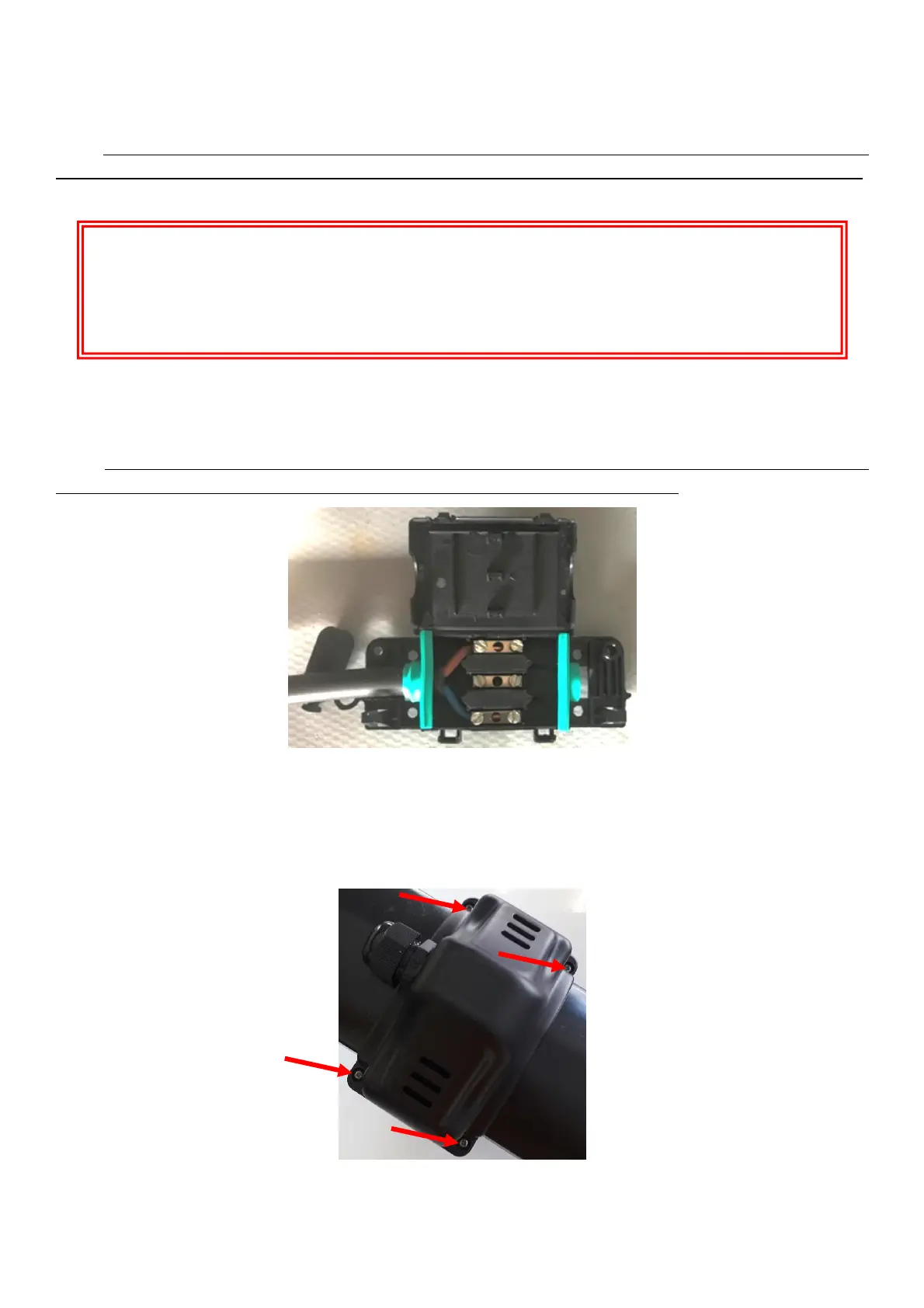

Unscrew the 4 screws from the connector covers of the cell and remove the covers:
Pass the cell’s cable through the cable gland of the cover and connect it to the connectors with the supplied screws.
Refit the connectors covers.
H
Disconnect the power supply from the filtration box and make sure the power supply is switched off with the
appropriate tools.
