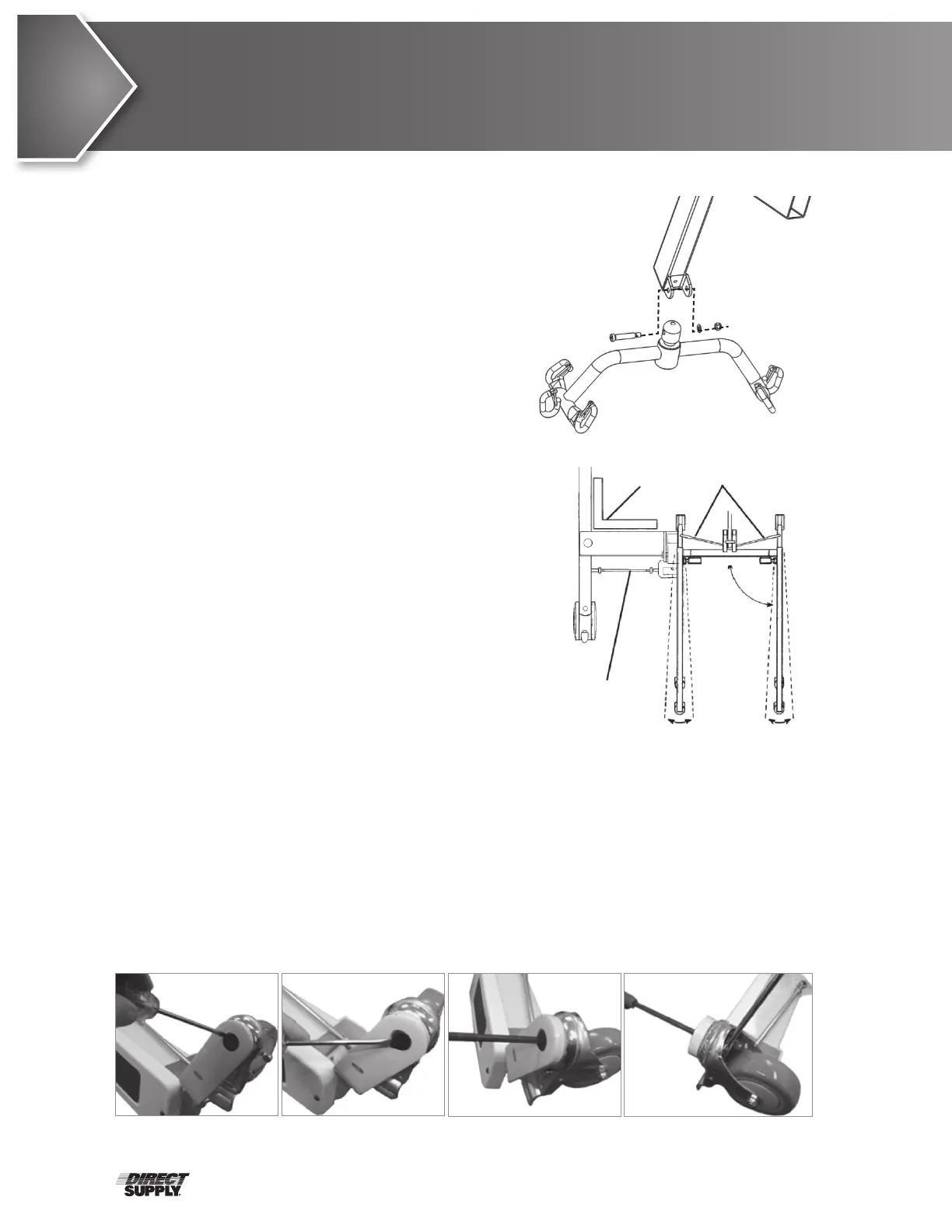

Cradle/Hanger Bar Replacement
• WARNING: After the first year of use, inspect the hooks
of the Cradle/Hanger bar and the boom mounting brackets
every three months. Replace worn out part as necessary.
a) The Cradle/Hanger bar is attached to the boom with
bolt, nut, washers and pinch guard.
• CAUTION: Washers should be placed against both sides
of the boom mounting bracket to eliminate damage. The
Cradle/Hanger bar has three hooks on both ends to attach
the sling supporting the resident during lifts.
b) Remove existing hardware and replace the hanger bar.
• CAUTION: DO NOT overtighten the nut and bolt.
Damage could occur.
Base Adjustment
a) When in the closed position, check that the legs are square.
b) To determine 90-degree alignment, place a square on
the inside of the legs and base.
c) Adjust the linkage rods until 90-degree alignment is
achieved.
Caster Replacement
• WARNING: Ensure the floor is clear of debris before turning the resident lift on its side.
Otherwise, damage or injury could occur.
Caster Replacement
a) Place the lift on its side.
b) Peel off the tape cover to expose the head of the Allen head bolt.
c) Use a 6 mm Allen wrench on the head of the bolt and a 17 mm socket or wrench on the nut. If
a socket is used, the wheel must be removed.
d) Turn the wrench counterclockwise to remove the nut, and the wheel will come off. Reverse
this procedure to install the replacement wheel.
Maintenance (cont.)
Square Linkage Rods
Linkage Rod
90º
