2002
Directed Electronics, Inc.
7
H1/6 BLUE (-) instant trigger input
This input will respond to a negative input with an instant trigger. It is ideal for hood and trunk pins
and will report on Zone 1. It can also be used with Directed single-stage sensors. The H1/6 BLUE
instant trigger wire can also be used to shunt sensors during operation of auxiliary channels or remote
start. (See Bypassing Sensor Inputs section of this guide.)

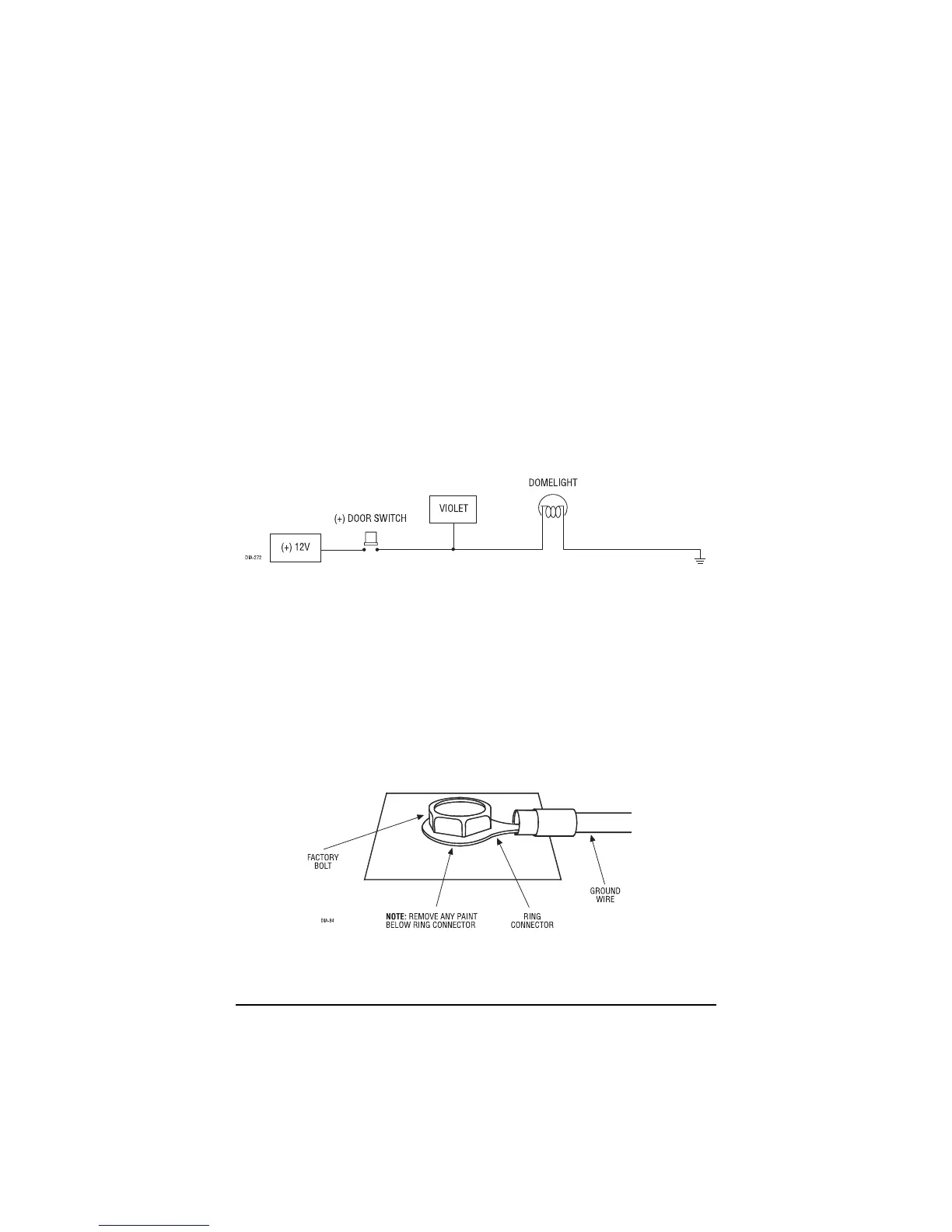

H1/7 VIOLET (+) door trigger input
This type of dome circuit is used in many Ford products. Connect the VIOLET wire to a wire that
shows (+)12V when any door is opened. This wire will report Zone 3.
NOTE: If using a door trigger wire that has a delay, Advanced Menu 2, feature 6, or the 998T
Bitwriter can be used to turn Bypass Notification off.
H1/8 BLACK (-) chassis ground connection
Connect this wire to a clean, paint-free sheet metal location (driver kick panel) using a factory bolt
that DOES NOT have any vehicle component grounds attached to it. A screw should only be used
when in conjunction with a two-sided lock washer. Under dash brackets and door sheet metal are
not acceptable ground points. It is recommended that all security components be grounded at the
same location.
