Wire connection guides
➤ Primary harness (H1), 9-pin connector
H1/1
LIGHT GREEN/
BLACK

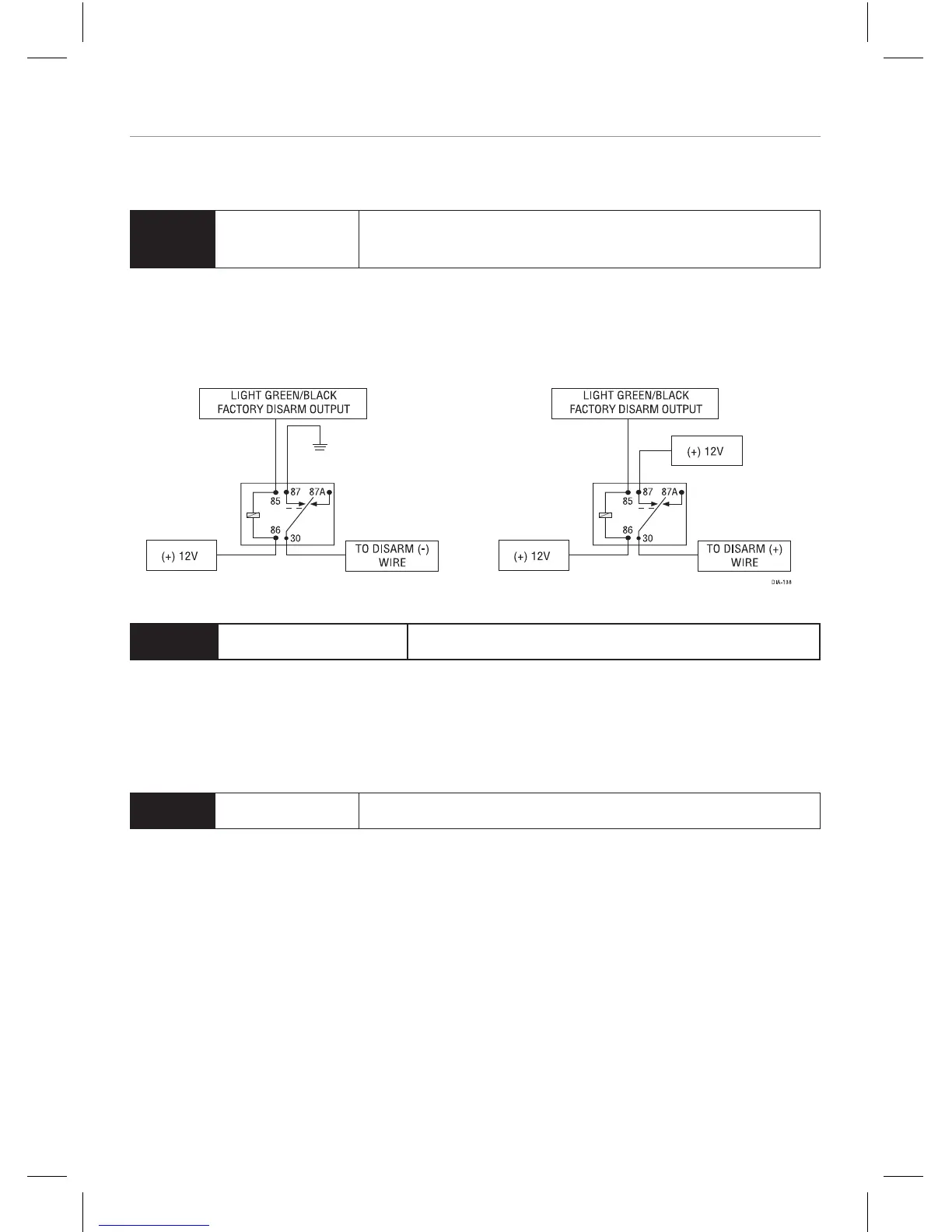

(-) FACTORY ALARM DISARM
Relay for Negative (-)
Disarm Wire
Relay for Positive (+)
Disarm Wire
H1/2
GREEN/WHITE FACTORY ALARM REARM OUTPUT
This wire sends a negative pulse every time the remote start shuts down or when
the doors are locked. This can be used to pulse the arm wire of the vehicle’s fac-
tory anti-theft device. Use a relay to send a (-) or (+) pulse to the arm wire.
H1/3
YELLOW (+) IGNITION OUTPUT
As a stand-alone system: The H1/3 YELLOW wire should not be connected to
anything and taped off.
As an add-on car starter: If connected, disconnect the ignition/accessory input
of the remote controlled security or keyless entry system. Connect the H1/3
YELLOW ignition output to the ignition/accessory input of the remote controlled
security or keyless entry system. The wire will prevent the host system from sens-
ing that the ignition is on during remote engine start operation.
