© 2005 Directed Electronics—all rights reserved
3355

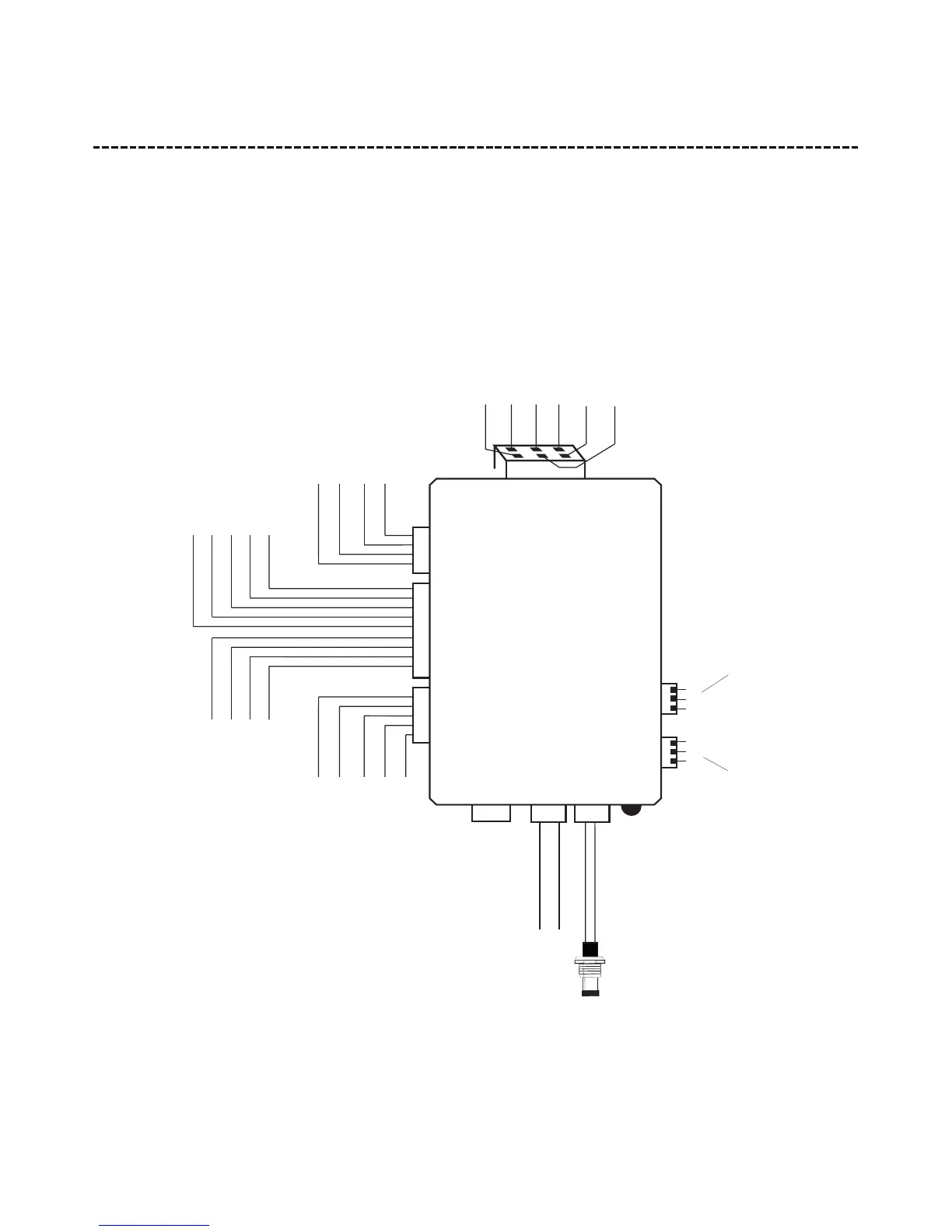

wwiirriinngg qquuiicckk rreeffeerreennccee gguuiiddee
RED 12V high current input
PINK ignition output
VIOLET starter output
ORANGE accessory 1 output
RED 12V high current input
PINK/WHITE ignition 2 output
BLUE (-) 200mA status output
ORANGE (-) 200mA accessory turn ON
PURPLE (-) 200mA second starter turn ON
PINK (-) 200mA third ignition turn ON
GREEN/BLACK (-) factory alarm disarm
GREEN/WHITE (-) factory alarm rearm
YELLOW (-) ignition output
WHITE/BLUE (+) activation input
GREY/BLACK (-) wait to start input
WHITE (+/-) parking light output
BLACK (-) ground input
RED/WHITE (-) 200mA channel 2 output
WHITE/RED (+) activation input
Status LED
Valet/Program button
Jumper
tachometer
threshold
LoHi
Jumper
light flash
polarity
+-
VIOLET/WHITE tachometer input
BROWN (+) brake shutdown
GRAY hood pin shutdown
BLUE/WHITE 2nd status output/defogger
BLACK/WHITE neutral safety shutdown
Not used
Door Locks
BLUE (-unlock)
GREEN (-lock)
