DS4+ FORD6
© 2017-12-13 Directed. All rights reserved.
Type 5

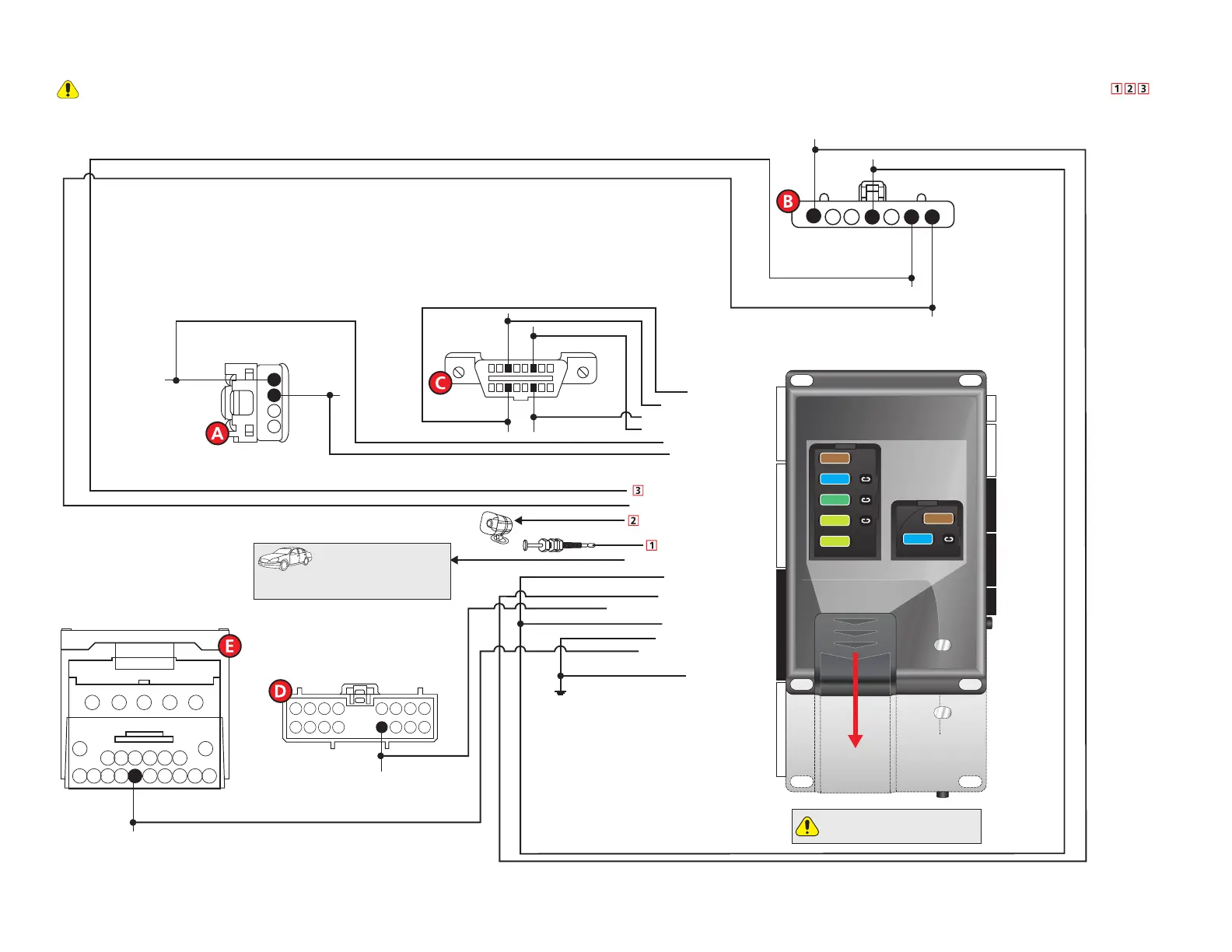

Refer to "Pre-installation and application warnings" on page 4 for important information, such as the description of each special note referenced in the diagram ( ).
16
8
9
1
(+) 12V Input: Blue/Red: 2
(+) Ignition Output: Blue: 3
(-) Ground: Black: 10
MS CAN Low: Tan: 1
MS CAN High: Tan/Black: 2
HS CAN High: Orange/Green: 4
HS CAN Low: Orange/Brown: 3
Data RX: Orange/Black: 7
(+) Parking Light Output: White: 5 & 11
Hood Pin
(-) Hood Pin Input: Gray: 21
Siren
(+) Siren Output: Brown/Red: 11
HS CAN Low: pin 14
HS CAN High: pin 6
MS CAN Low:
pin 11
MS CAN High:
pin 3
Data TX: Yellow/Black: 8
(+) Accessory Output: White: 7
(+) Starter Output: Violet/Black: 8
(-) RAP Off Output: Lt. Green: 8
(-) Ground: Lt. Green/Red: 7
(+) 12V Input: Red: 6 & 12
P.A.T.S. - 4-pin
(at ignition switch)
1
2
3
4
RX: pin 4
TX: pin 3
DS4+
DS4
Slide
to open
Proper Fuse
Positioning
DS4+ DS4
It is important to check that the
fuses are positioned correctly.
MAIN (5A) (+)
(-) RLY3 PK LIGHT (15A) (+)
(-) ACC & START (30A) (+)
(-) FLEX RLY (20A) (+)
IGN (20A) (+)
MAIN (5A) (+)
(-) RLY3/PK LIGHT(15A) (+)
5
30
20
20
5
15
15
(+) 12V: Red, pin 4
(+) Start: Gray/Black or Orange/Black, pin 7
(+) Ignition: Green/Yellow, pin 1
Ignition Switch
(black conn.
at ign. switch)
(+) Accessory: Yellow, pin 6
1
2 3 4 5 6 7
(+) Parking Lights:
Orange/Yellow: pin 13
1
2
9
10
3
4
11
12
5
7
13
14
8
9
15
16
Headlight Switch
(black conn. at headlight switch)
(-) Driver Door Trigger: Black/Yellow: pin 18
1
2
3
4
5
7
6
10
11
12
13
9
8
19
20
21
22
23
15
14
17
16
18
General Electronic Module
(gray connector behind dash fusebox)
Refer to the Vehicle wiring
reference charts for wire
and connector details related to the
standard connections in the vehicle.
(AC) Tach Output: Violet/White: 22
OBDII Diagnostic
(connector side view)
To Next Page
