Input sensitivity (Gain setting)
The sensitivity of the analog inputs is adjustable in 1 dB steps from -55 dBu to
0dBu. A PAD of 30dB extends the range by another 30dB.
The sensitivity complies with the input level that is referenced to digital full scale
level (0dBFS).

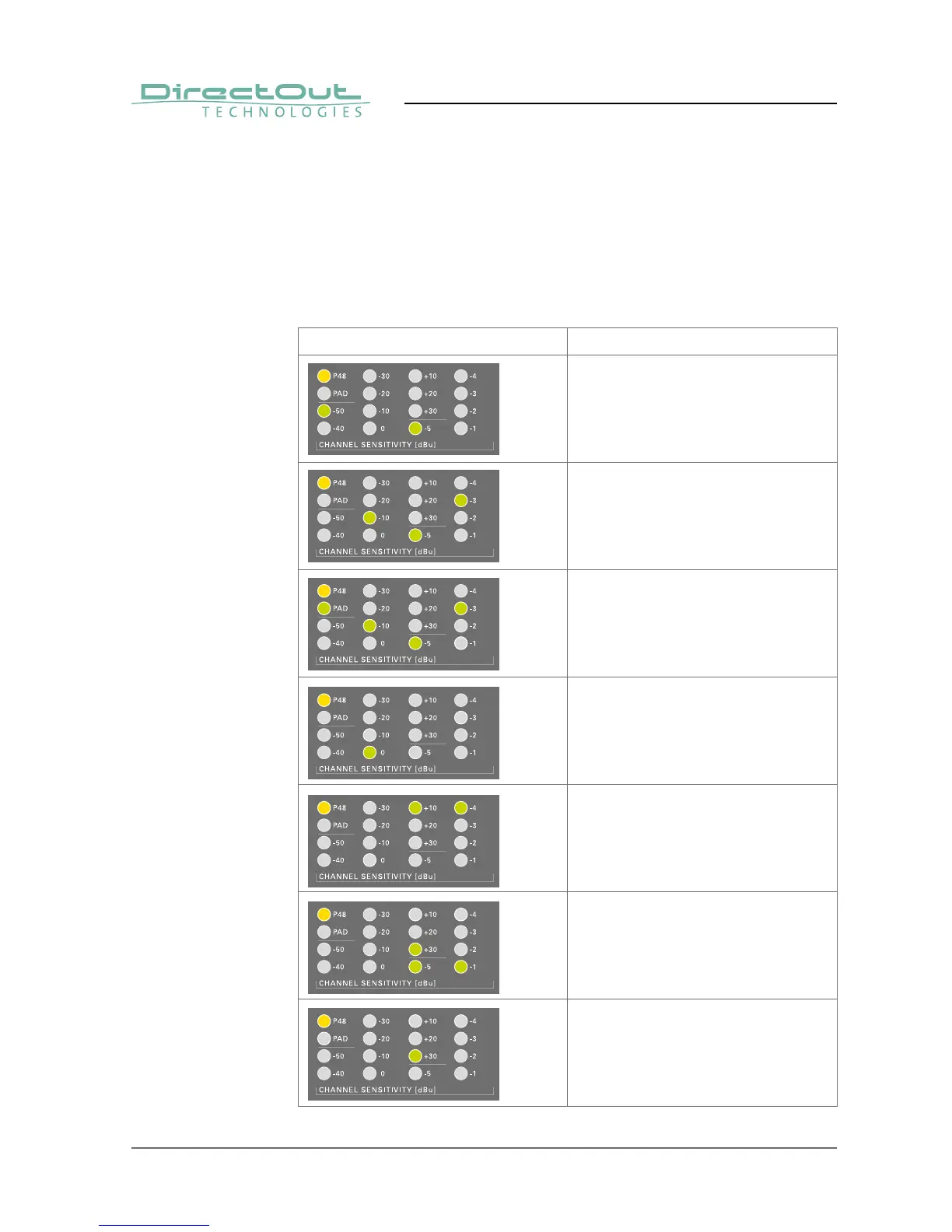

A bunch of LEDs is used to display the actual input sensitivity of a selected
channel (in menu mode).
Display Sensitivity
-55 dBu
-18 dBu
(PAD not activated)
-48 dBu
(PAD activated)
0 dBu
+6 dBu
(-36 dBu with activated PAD)
+24 dBu
(-14 dBu with activated PAD)
+30 dBu
(0 dBu with activated PAD)
