Appendix D - Remote Protocols
Setup - DM1000
The Yamaha DM1000 console only supports the AD824 control protocol, which is a
subset of the AD8HR protocol.
The gain values can only be changed in 6 dB steps.

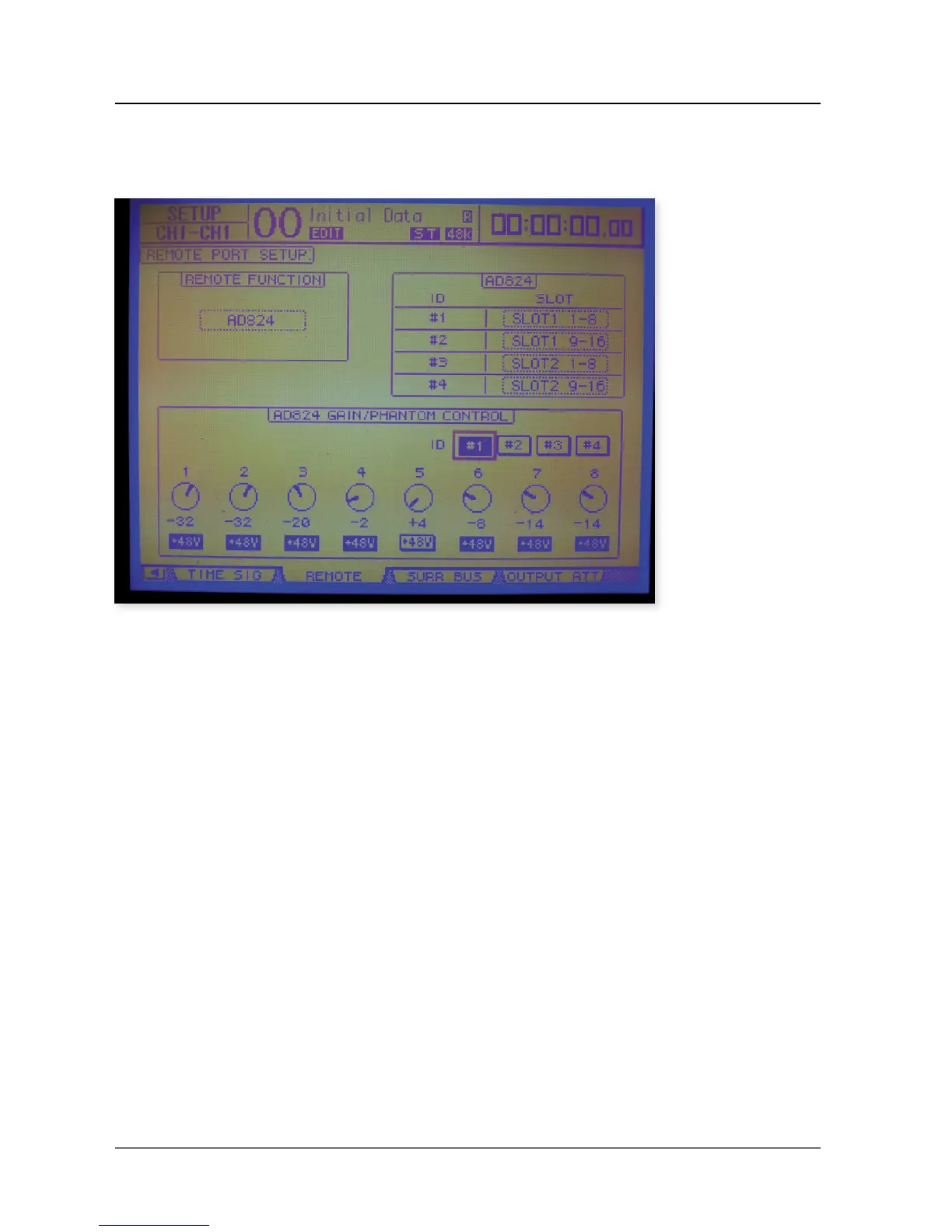

• DM1000 - REMOTE SETUP page - choose ‘AD824’ for remote control.
• The console will permanently check, which devices are connected and they
will be listed with their IDs.
• You can assign audio I/O slots for each device.The ANDIAMO.MC shows up
as four consecutive devices, each of which has eight channels.
• Serial transport baud rate: 38400 baud
